M32000D3FP User's Manual
EXTERNAL BUS INTERFACE
6-11
6.4 Burst access operation
When the cache memory operation mode is the instruction cache mode, and burst reading of the
instructions within the 128-bit boundary for cache replacement occurs, the bus cycle is driven a
fixed 8 times from an arbitrary 32-bit boundary address and to wraparound within the 128-bit
boundary.
When other than the instruction cache mode is selected and burst reading a set of instructions of
less than 128 bits, consecutive bus cycles are driven from an arbitrary 32-bit boundary address
as the top to the 128-bit line (A28 to A30 = "111") .

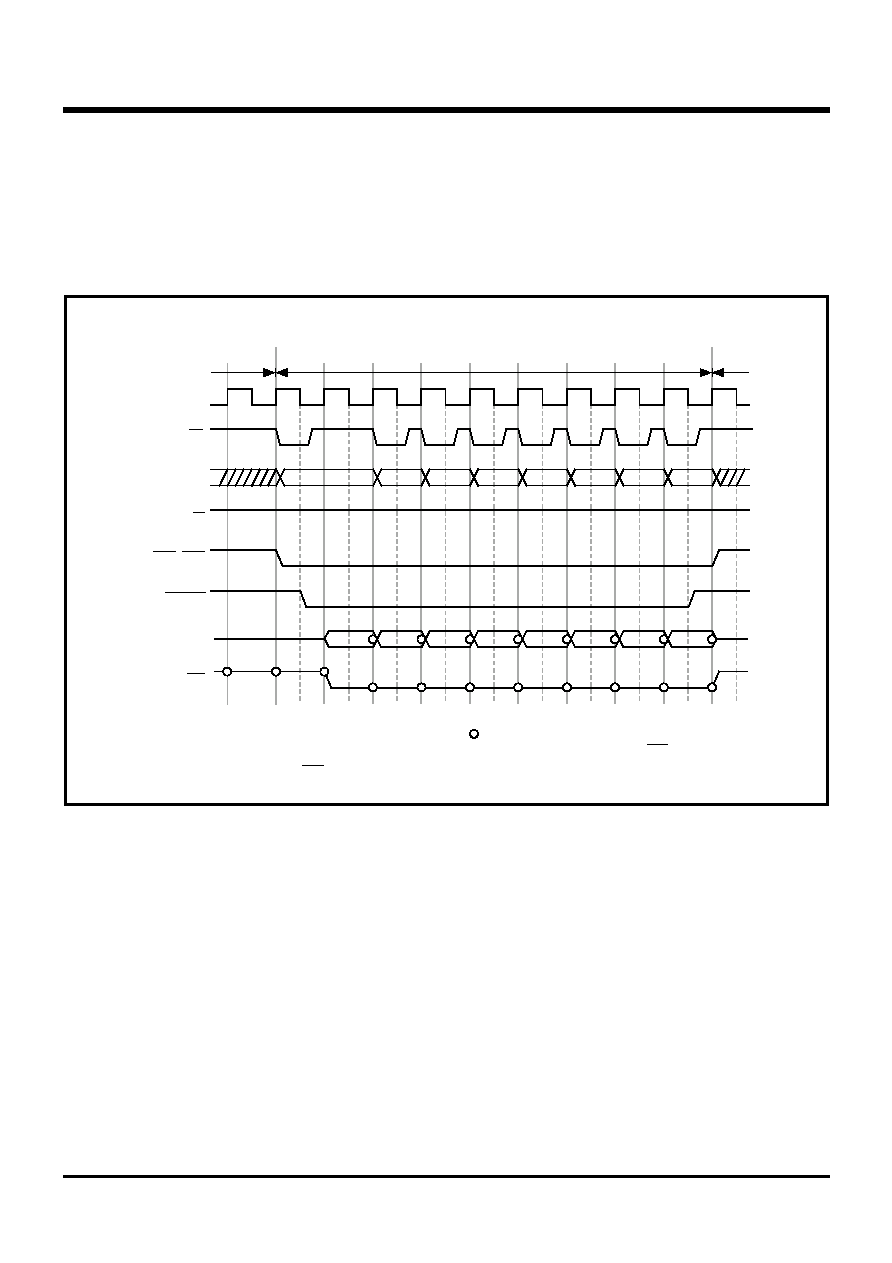

Fig. 6.4.2 4-word (128-bit) burst read timing (1-0-0-0-0-0-0-0 wait)
Wait cycles can be inserted even when burst transferring by setting DC = "H".
"H"
idle
CLKIN
BS
A8 - A30
SID, ST
BCH, BCL
BURST
D0 - D15
DC
R/W
burst read ( 4 words)
idle
"Hi-z"
Note: "Hi-z" means high-impedance, and
indicates sampling timing.
Keep DC signal to at the "H" level during idle cycles.
