M44C510E
Rev. A1, 04-May-00
Preliminary Information
10 (60)
7
6
5
4
3
2
1
0
Priority
level
INT5 active
INT7 active
INT2 pending
SWI0
INT2 active
INT0 pending
INT0 active
INT2
RTI
INT5
INT3 active
INT3
RTI
INT7
Time
Main /
Autosleep
Main /
Autosleep
94 8978

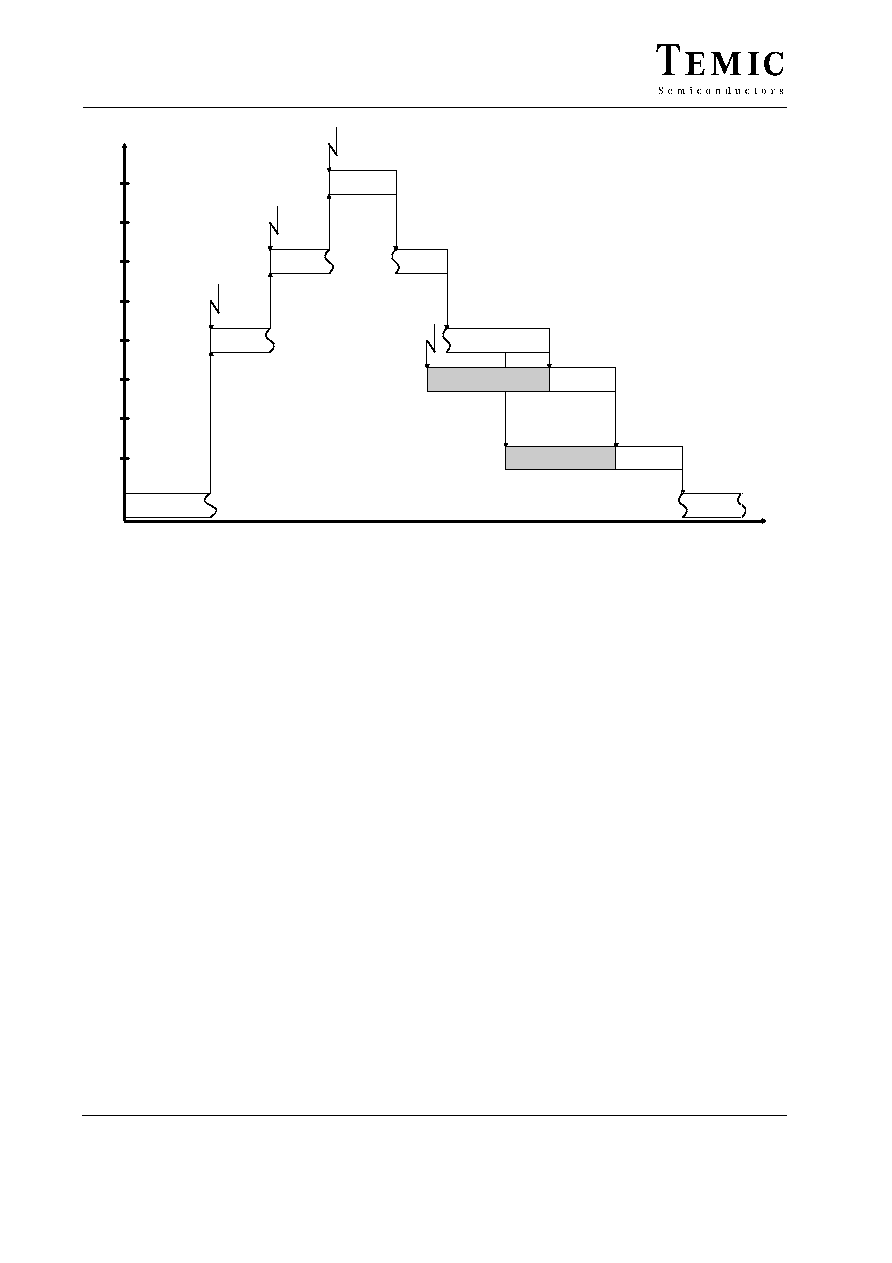

Figure 8. Interrupt handling
Interrupt Processing
For processing the eight interrupt levels, the MARC4 in-
cludes an interrupt controller with two 8-bit wide
“interrupt pending” and “interrupt active” registers. The
interrupt controller samples all interrupt requests during
every non-I/O instruction cycle and latches these in the
interrupt pending register. Whenever an interrupt request
is detected, the CPU interrupts the program currently
being executed, on condition that no higher priority
interrupt is present in the interrupt active register. If the
interrupt-enable bit is set, the processor enters an inter-
rupt acknowledge cycle. During this cycle a short call
(SCALL) instruction is executed to the service routine
and the current PC is saved on the return stack. An inter-
rupt service routine is finished with the RTI instruction.
This instruction sets the interrupt-enable flag, resets the
corresponding bits in the interrupt pending/active register
and fetches the return address from the return stack to the
program counter. When the interrupt-enable flag is reset
(triggering
of interrupt routines is disabled), the
execution of new interrupt service routines is inhibited,
but not the logging of the interrupt requests in the inter-
rupt pending register. The execution of the interrupt is
then delayed until the interrupt-enable flag is set again.
Note that interrupts are only lost if an interrupt request oc-
curs while the corresponding bit in the pending register is
still set (i.e., the interrupt service routine is not yet fin-
ished).
It should also be realized that automatic stacking of the
RBR is not carried out by the hardware and so if ROM
banking is used, the RBR must be stacked on the expres-
sion stack by the application program and restored before
the RTI. After a master reset (power-on, external or
watchdog reset), the interrupt-enable flag and the inter-
rupt pending and interrupt active registers are all reset.
Interrupt Latency
The interrupt latency is the time from the occurrence of
the interrupt to the interrupt service routine being acti-
vated. In the MARC4, this is extremely short and takes
between 3 to 5 machine cycles depending on the state of
the core.
