MSC8122 Technical Data, Rev. 13
2-10
Freescale Semiconductor
Specifications
2.5.5
System Bus Access Timing
2.5.5.1 Core Data Transfers
Generally, all MSC8122 bus and system output signals are driven from the rising edge of the reference clock
(REFCLK). The REFCLK is the
CLKIN
signal. Memory controller signals, however, trigger on four points within a
REFCLK cycle. Each cycle is divided by four internal ticks: T1, T2, T3, and T4. T1 always occurs at the rising
edge of REFCLK (and T3 at the falling edge), but the spacing of T2 and T4 depends on the PLL clock ratio
selected, as
Table 2-12
shows.
Figure 2-5
is a graphical representation of
Table 2-12
.
Table 2-12.
Tick Spacing for Memory Controller Signals
BCLK/SC140 clock
Tick Spacing (T1 Occurs at the Rising Edge of REFCLK)
T2
T3
T4
1:4, 1:6, 1:8, 1:10
1/4 REFCLK
1/2 REFCLK
3/4 REFCLK
1:3
1/6 REFCLK
1/2 REFCLK
4/6 REFCLK
1:5
2/10 REFCLK
1/2 REFCLK
7/10 REFCLK

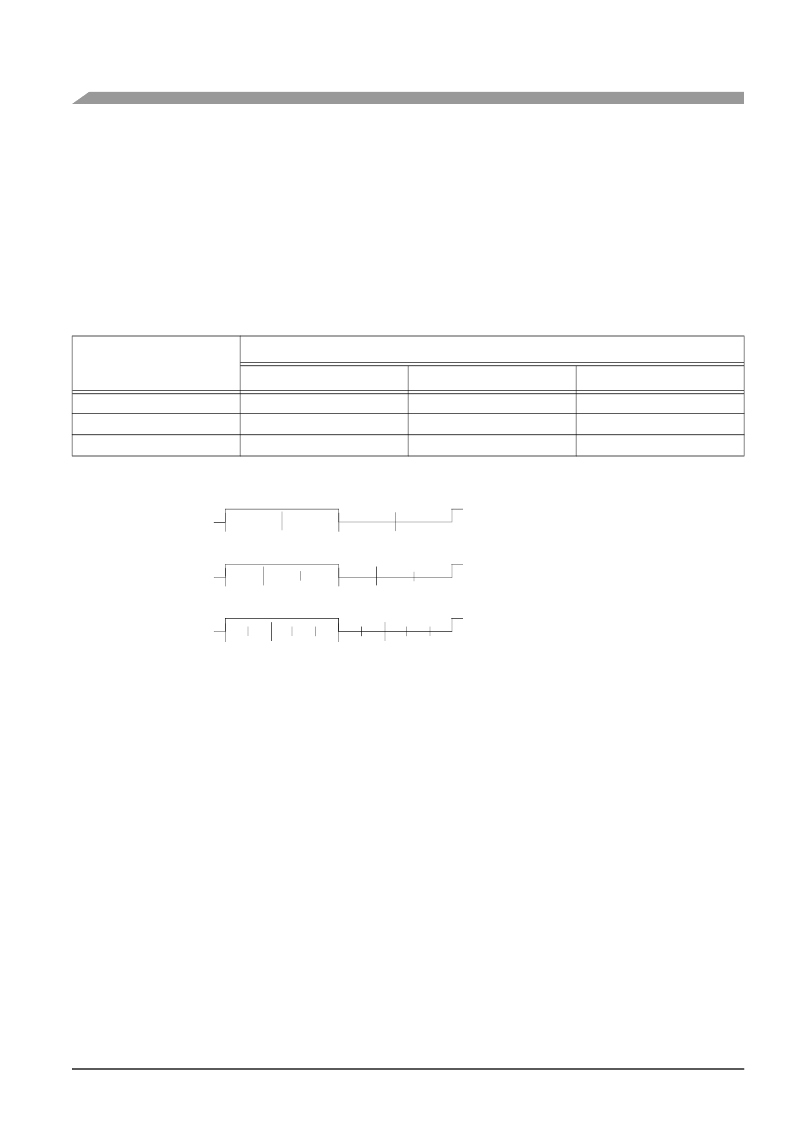

Figure 2-5.
Internal Tick Spacing for Memory Controller Signals
REFCLK
T1
T2
T3
T4
REFCLK
T1
T2
T3
T4
for 1:3
for 1:5
REFCLK
T1
T2
T3
T4
for 1:4, 1:6, 1:8, 1:10
