37
μ
PD784031Y
(2) 3-wire serial I/O mode
In this mode, the master device starts transfer by making the serial clock active and transfers 1-byte data in
synchronization with this clock.
This mode is used to communicate with a device having the conventional clocked serial interface. Basically,
communication is established by using three lines: one serial clock (SCK) and two serial data (SI and SO) lines.
Generally, to check the communication status, a handshake line is necessary.

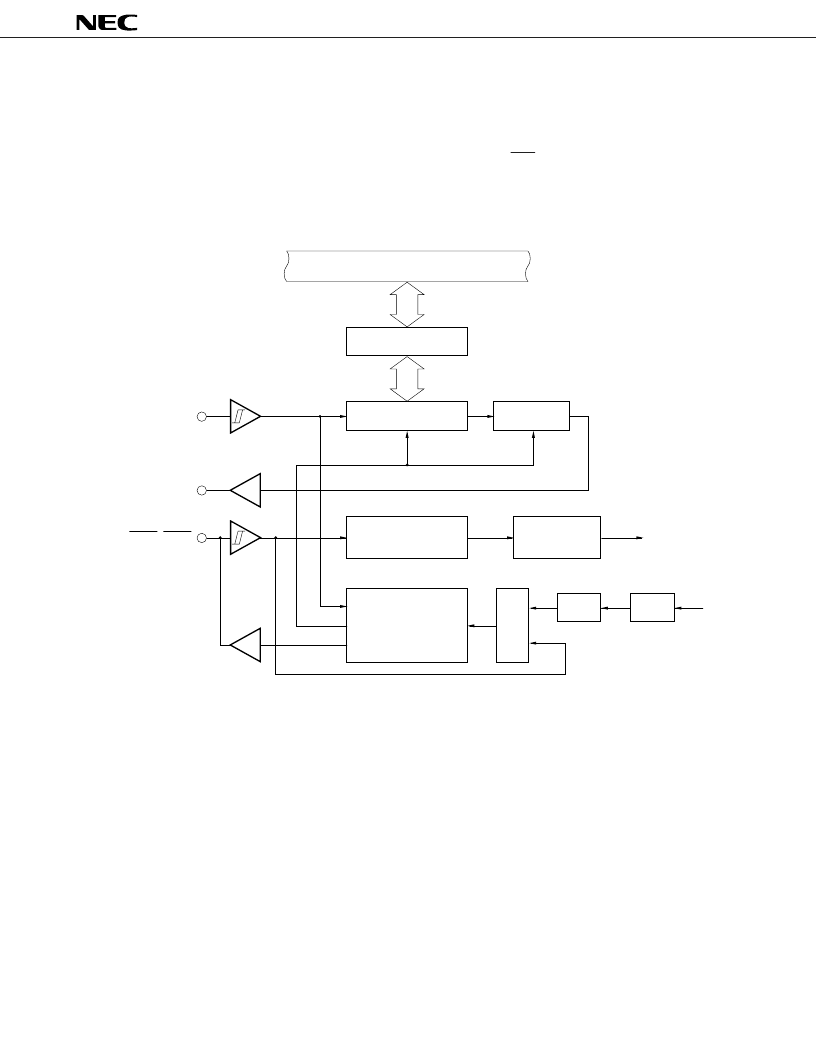

Figure 7-11. Block Diagram in 3-wire Serial I/O Mode
Remark
f
XX
: oscillation frequency or external clock input
n = 0 through 11
m = 1 or 16 through 30
Internal bus
Direction control circuit
SIO1, SIO2
Shift register
Output latch
Serial clock counter
Serial clock
control circuit
Interrupt signal
generation circuit
1/m
1/2
n + 1
INTCSI1,
INTCSI2
SI1, SI2
SO1, SO2
SCK1, SCK2
f
XX
/2
S
