IDT70T633/1S
High-Speed 2.5V 512/256K x 18 Asynchronous Dual-Port Static RAM
Industrial and Commercial Temperature Ranges
14
RapidWrite Mode Write Cycle
Unlike other vendors' Asynchronous Random Access Memories,
the IDT70T651/9 is capable of performing multiple back-to-back write
operations without having to pulse the R/
W, CE, or BEn signals high
duringaddresstransitions. ThisRapidWriteModefunctionalityallowsthe
systemdesignertoachieveoptimumback-to-backwritecycleperformance
without the difficult task of generating narrow reset pulses every cycle,
simplifying system design and reducing time to market.
During this new RapidWrite Mode, the end of the write cycle is now
definedbytheendingaddresstransition,insteadoftheR/
WorCEorBEn
transition to the inactive state. R/
W, CE, and BEn can be held active
throughout the address transition between write cycles.
Care must be taken to still meet the Write Cycle time (tWC), the time in
which the Address inputs must be stable. Input data setup and hold times
(tDW and tDH) will now be referenced to the ending address transition. In
thisRapidWriteMode theI/OwillremainintheInputmodefortheduration
of the operations due to R/
W being held low. All standard Write Cycle
specifications must be adhered to. However, tAS and tWR are only
applicable when switching between read and write operations. Also,
there are two additional conditions on the Address Inputs that must also
bemettoensurecorrectaddresscontrolled writes. Thesespecifications,
the Allowable Address Skew (tAAS) and the Address Rise/Fall time (tARF),
must be met to use the RapidWrite Mode. If these conditions are not met
thereisthepotentialforinadvertentwriteoperationsatrandomintermediate
locations as the device transitions between the desired write addresses.
5670 drw 08
tWC
tEW
tWP
tWZ
tDH
tDW
tOW
tWR
ADDRESS
CE or SEM(6)
BEn
R/
W
DATAIN
DATAOUT
(2)
(5)
tDH
(4)

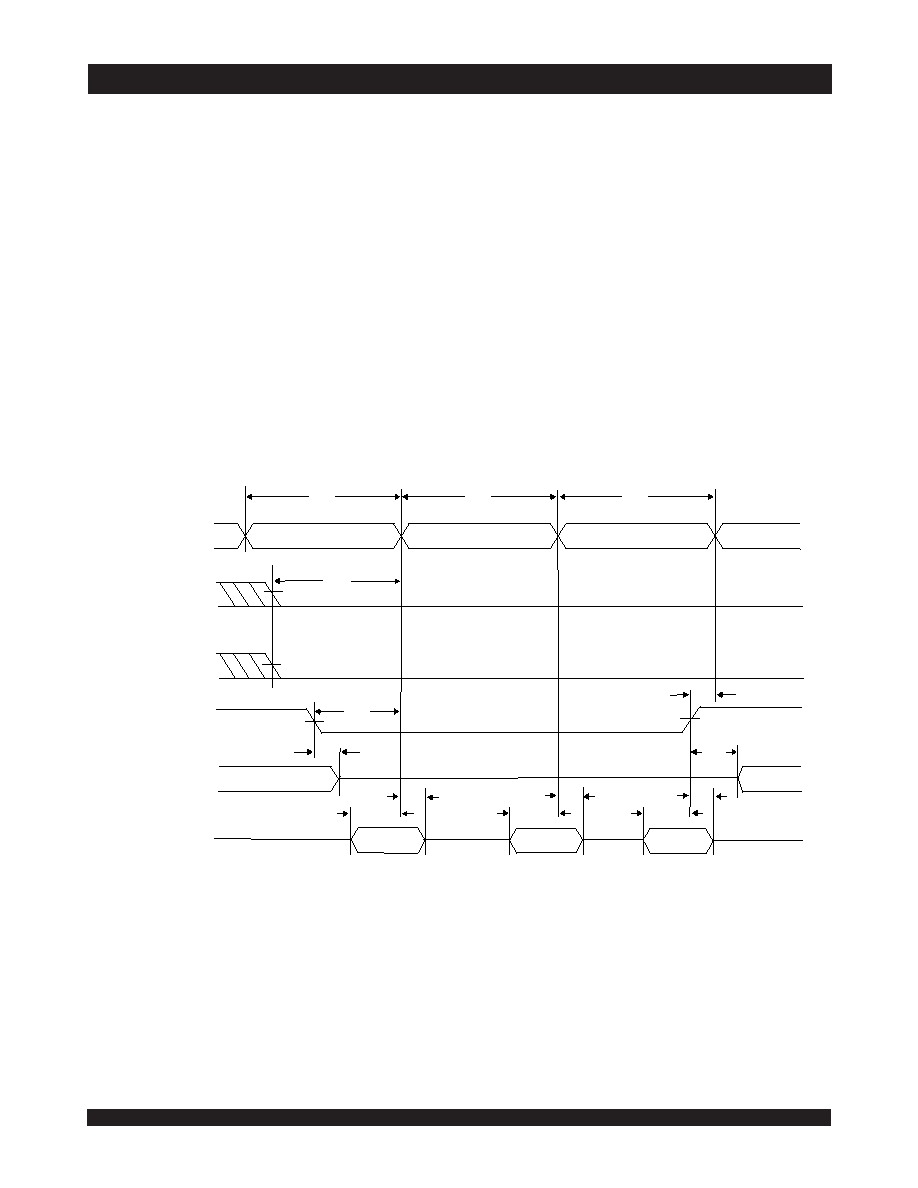

Timing Waveform of Write Cycle No. 3, RapidWrite Mode Write Cycle(1,3)
NOTES:
1.
OE = VIL for this timing waveform as shown. OE may equal VIH with same write functionality; I/O would then always be in High-Z state.
2. A write occurs during the overlap (tEW or tWP) of a
CE = VIL, BEn = VIL, and a R/W = VIL for memory array writing cycle. The last transition LOW of CE, BEn, and
R/
W initiates the write sequence. The first transition HIGH of CE, BEn, and R/W terminates the write sequence.
3. If the
CE or SEM = VIL transition occurs simultaneously with or after the R/W = VIL transition, the outputs remain in the High-impedance state.
4. The timing represented in this cycle can be repeated multiple times to execute sequential RapidWrite Mode writes.
5. This parameter is guaranteed by device characterization, but is not production tested. Transition is measured 0mV from steady state with the Output Test Load
(Figure 1).
6. To access RAM,
CE = VIL and SEM = VIH. To access semaphore, CE = VIH and SEM = VIL. tEW must be met for either condition. CE = VIL when CE0 = VIL
and CE1 = VIH.
CE = VIH when CE0 = VIH and/or CE1 = VIL.
