In Standby and in Flash mode the nominal periods can be changed with any SPI access
to the Mode register.
Any illegal watchdog trigger code results in an immediate system reset, entering Start-up
mode.
6.4.4
Watchdog OFF behavior
In Standby and Sleep mode it is possible to switch off the watchdog entirely. For fail-safe
reasons this is only possible if the microcontroller has stopped program execution. To
ensure that there is no program execution, the V1 supply current is monitored by the SBC
while the watchdog is switched off.
When selecting the watchdog OFF code, the watchdog remains active until the
microcontroller supply current has dropped below the current monitoring threshold I
thL(V1)
.
After the supply current has dropped below the threshold, the watchdog stops at the end
of the watchdog period. In case the supply current does not drop below the monitoring
threshold, the watchdog stays active.
If the microcontroller supply current increases above I
thH(V1)
while the Watchdog is OFF,
the watchdog is restarted with the last used watchdog period time and a watchdog restart
interrupt is forced, if enabled.
In case of a direct mode change towards Standby Mode with watchdog OFF selected, the
longest possible watchdog period is used. It should be noted that in Sleep mode V1
current monitoring is not active.

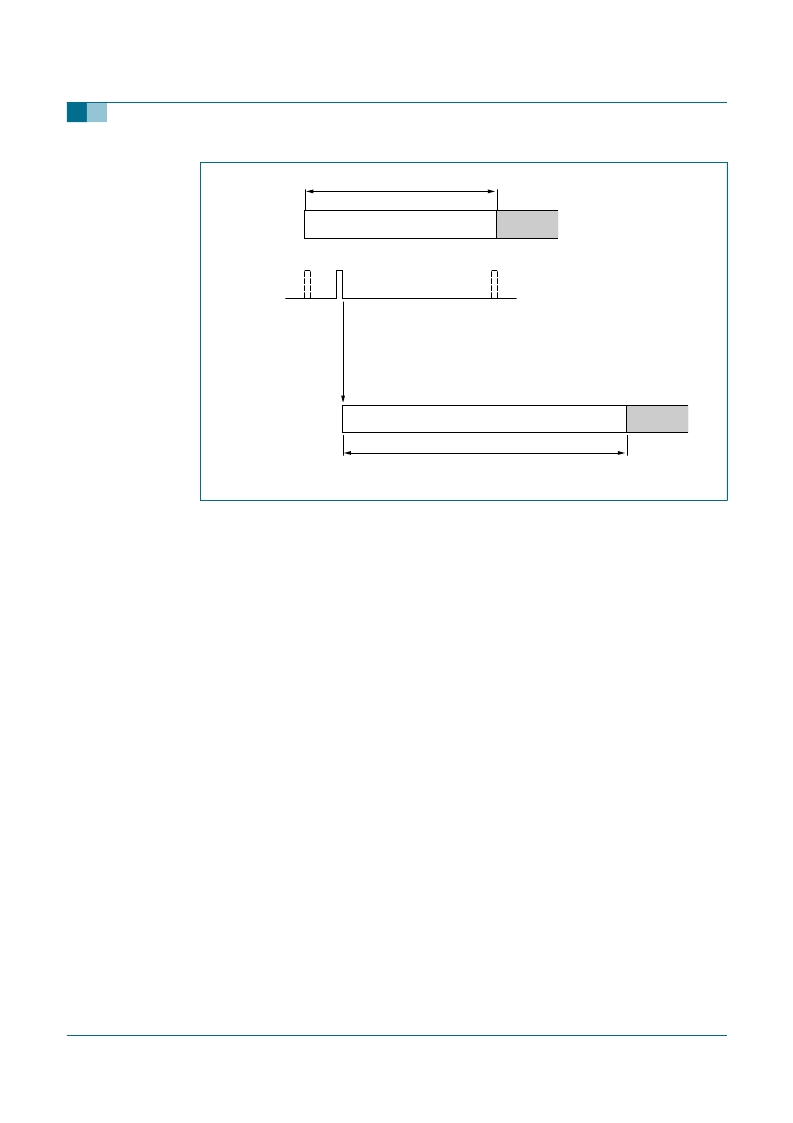

Fig 5.
Watchdog triggering using Time-out mode
mce627
trigger
via SPI
earliest
possible
trigger
point
latest
possible
trigger
point
trigger restarts period
(with different duration if
desired)
new period
trigger range
trigger range
time-out
time-out
period
