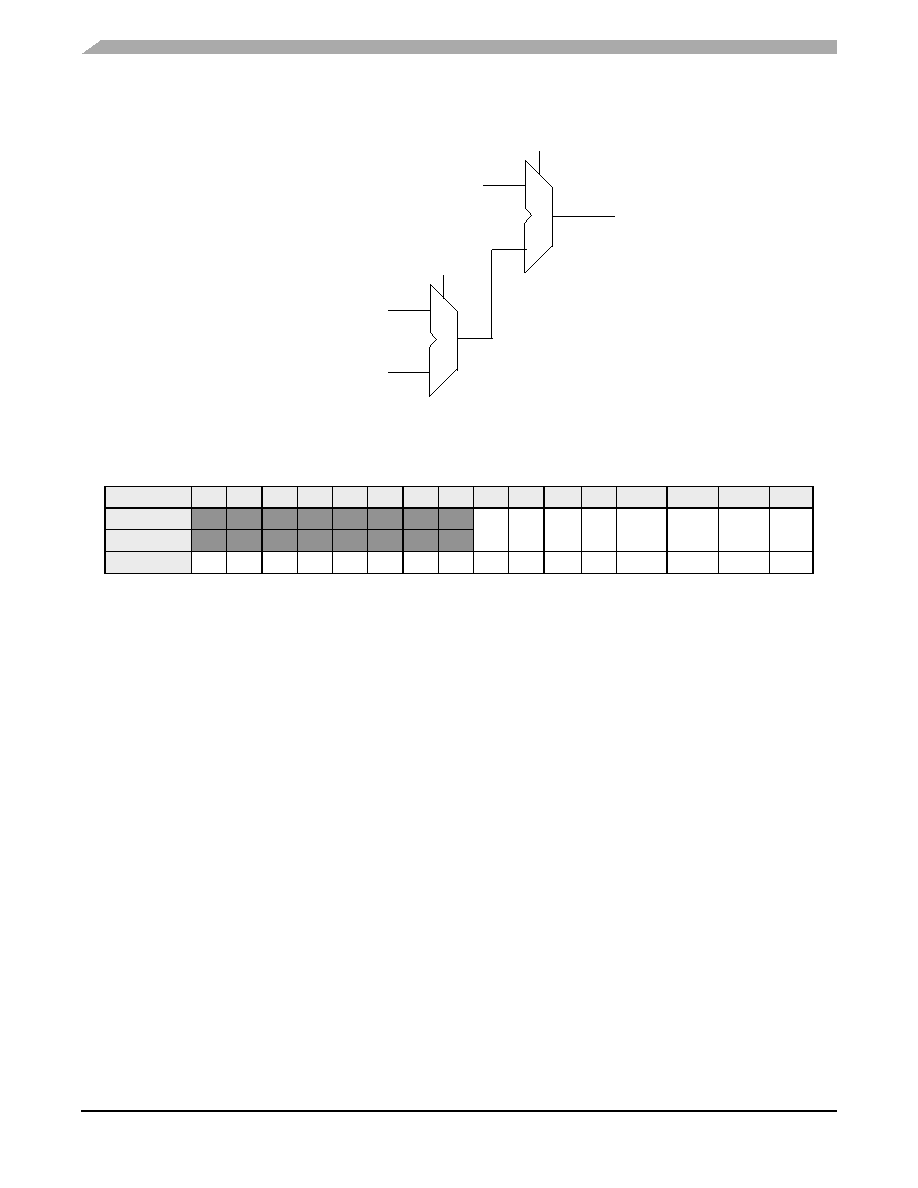

Figure 6-10 Overall Control of Pads Using SIM_GPS Control
Figure 6-11 GPIO Peripheral Select Register (SIM_GPS)
6.5.8.1
Reserved—Bits 15–8
This bit field is reserved or not implemented. It is read as 0 and cannot be modified by writing.
6.5.8.2
GPIOC6 (C6)—Bit 7
This bit selects the alternate function for GPIOC6.
0 = TC0 (default)
1 = TXD0
6.5.8.3
GPIOC5 (C5)—Bit 6
This bit selects the alternate function for GPIOC5.
0 = TC1 (default)
1 = RXD0
6.5.8.4
GPIOB1 (B1)—Bit 5
This bit selects the alternate function for GPIOB1.
0 = MISO0 (default)
1 = RXD1
