參數資料
| 型號： | 6PAIC3106IRGZRQ1 |
| 廠商： | Texas Instruments |
| 文件頁數： | 48/103頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC AUDIO CODEC STEREO 48-QFN |
| 標準包裝： | 1 |
| 類型： | 立體聲音頻 |
| 數據接口： | 串行 |
| 分辨率（位）： | 24 b |
| ADC / DAC 數量： | 2 / 2 |
| 三角積分調變： | 是 |
| S/N 比，標準 ADC / DAC (db)： | 92 / 102（差分），92 / 95（單端） |
| 動態范圍，標準 ADC / DAC (db)： | 91 / 99（差分），91 / 92（單端） |
| 電壓 - 電源，模擬： | 2.7 V ~ 3.6 V |
| 電壓 - 電源，數字： | 1.1 V ~ 3.6 V |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 48-VFQFN 裸露焊盤 |
| 供應商設備封裝： | 48-VQFN 裸露焊盤（7x7） |
| 包裝： | 標準包裝 |
| 產品目錄頁面： | 1077 (CN2011-ZH PDF) |
| 其它名稱： | 296-25253-6 |
第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁第15頁第16頁第17頁第18頁第19頁第20頁第21頁第22頁第23頁第24頁第25頁第26頁第27頁第28頁第29頁第30頁第31頁第32頁第33頁第34頁第35頁第36頁第37頁第38頁第39頁第40頁第41頁第42頁第43頁第44頁第45頁第46頁第47頁當前第48頁第49頁第50頁第51頁第52頁第53頁第54頁第55頁第56頁第57頁第58頁第59頁第60頁第61頁第62頁第63頁第64頁第65頁第66頁第67頁第68頁第69頁第70頁第71頁第72頁第73頁第74頁第75頁第76頁第77頁第78頁第79頁第80頁第81頁第82頁第83頁第84頁第85頁第86頁第87頁第88頁第89頁第90頁第91頁第92頁第93頁第94頁第95頁第96頁第97頁第98頁第99頁第100頁第101頁第102頁第103頁
To Detection block
HPLOUT
HPLCOM
HPROUT
HPRCOM
MICDET
This switch closes when
jack is removed
SLAS663B – AUGUST 2009 – REVISED OCTOBER 2012

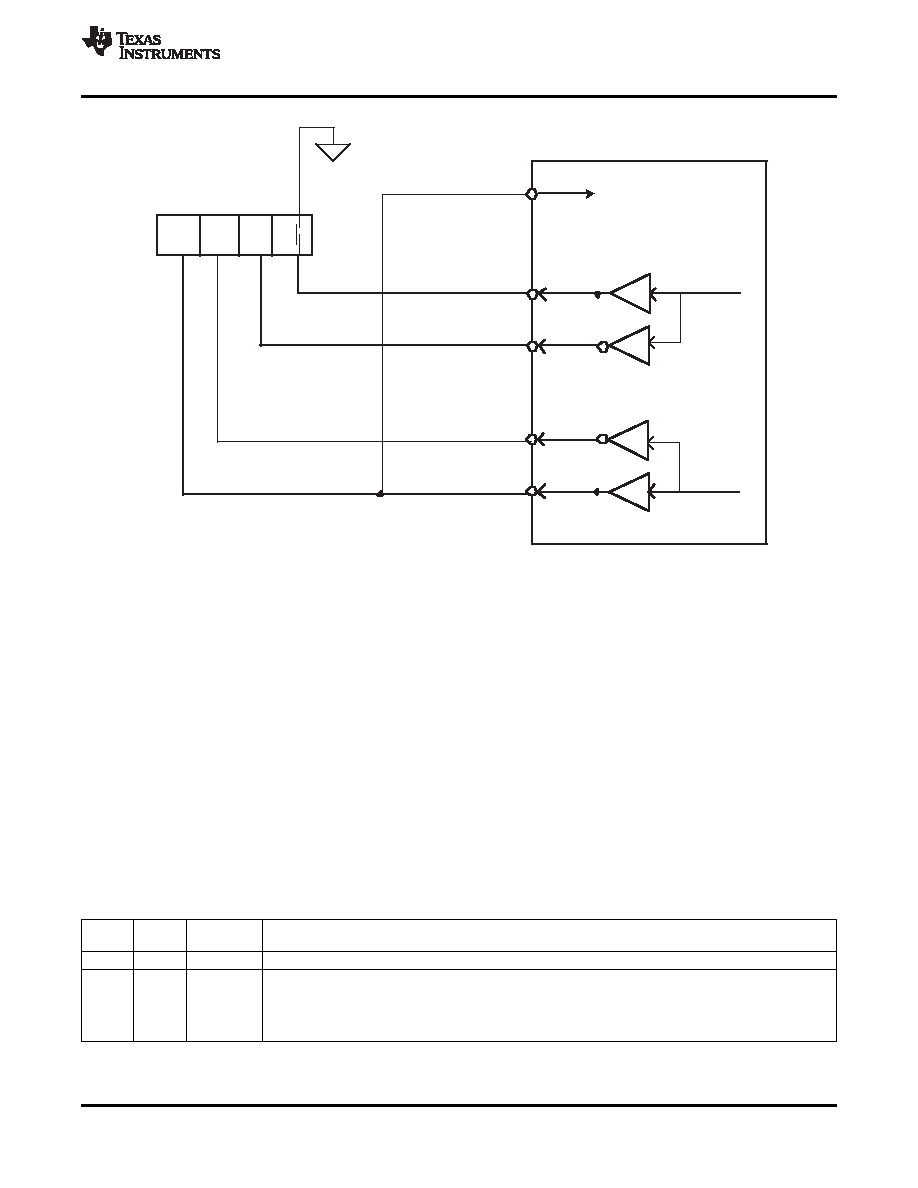

Figure 39. Configuration of Device for Jack Detection Using a Fully Differential Stereo Headphone
Output Connection
GENERAL-PURPOSE I/O
TLV320AIC3106 has two dedicated pins for general-purpose I/O. These pins can be used to read status of
external signals through register read when configured as general-purpose input. When configured as general-
purpose output , these pins can also drive logic high or low. Besides these standard GPIO functions, these pins
can also be used in a variety of ways, such as output for internal clocks and interrupt signals. The
TLV320AIC3106 generates a variety of interrupts of use to the host processor such interrupts on jack detection,
button press, short-circuit detection, and AGC noise detection. All these interrupts can be routed individually to
the GPIO pins or can be combined by a logical OR. In case of a combined interrupt, the user can read an
internal status register to find the actual cause of interrupt. When configured as interrupt, the TLV320AIC3106
also offers the flexibility of generating a single pulse or a train of pulses until the interrupt status register is read
by the user.
CONTROL REGISTERS
The control registers for the TLV320AIC3106 are described in detail below. All registers are 8 bit in width, with
D7 referring to the most significant bit of each register, and D0 referring to the least significant bit.
Table 8. Page 0 / Register 0: Page Select Register
READ/
RESET
BIT(1)
DESCRIPTION
WRITE
VALUE
D7–D1
X
0000 000
Reserved, write only zeros to these register bits
D0
R/W
0
Page Select Bit
Writing zero to this bit sets Page-0 as the active page for following register accesses. Writing a one to this
bit sets Page-1 as the active page for following register accesses. It is recommended that the user read
this register bit back after each write, to ensure that the proper page is being accessed for future register
read/writes.
(1)
When resetting registers related to routing and volume controls of output drivers, it is recommended to reset them by writing directly to
the registers instead of using software reset.
Copyright 2009–2012, Texas Instruments Incorporated
49
Product Folder Links: TLV320AIC3106-Q1
