58
3886 Group
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER FLASH MEMORY VERSION
MITSUBISHI MICROCOMPUTERS
PRELIMINAR
Y
for flash
memory
version
Notice:
This
is not
a final
specification.
Some
parametric
limits
are
subject
to change.

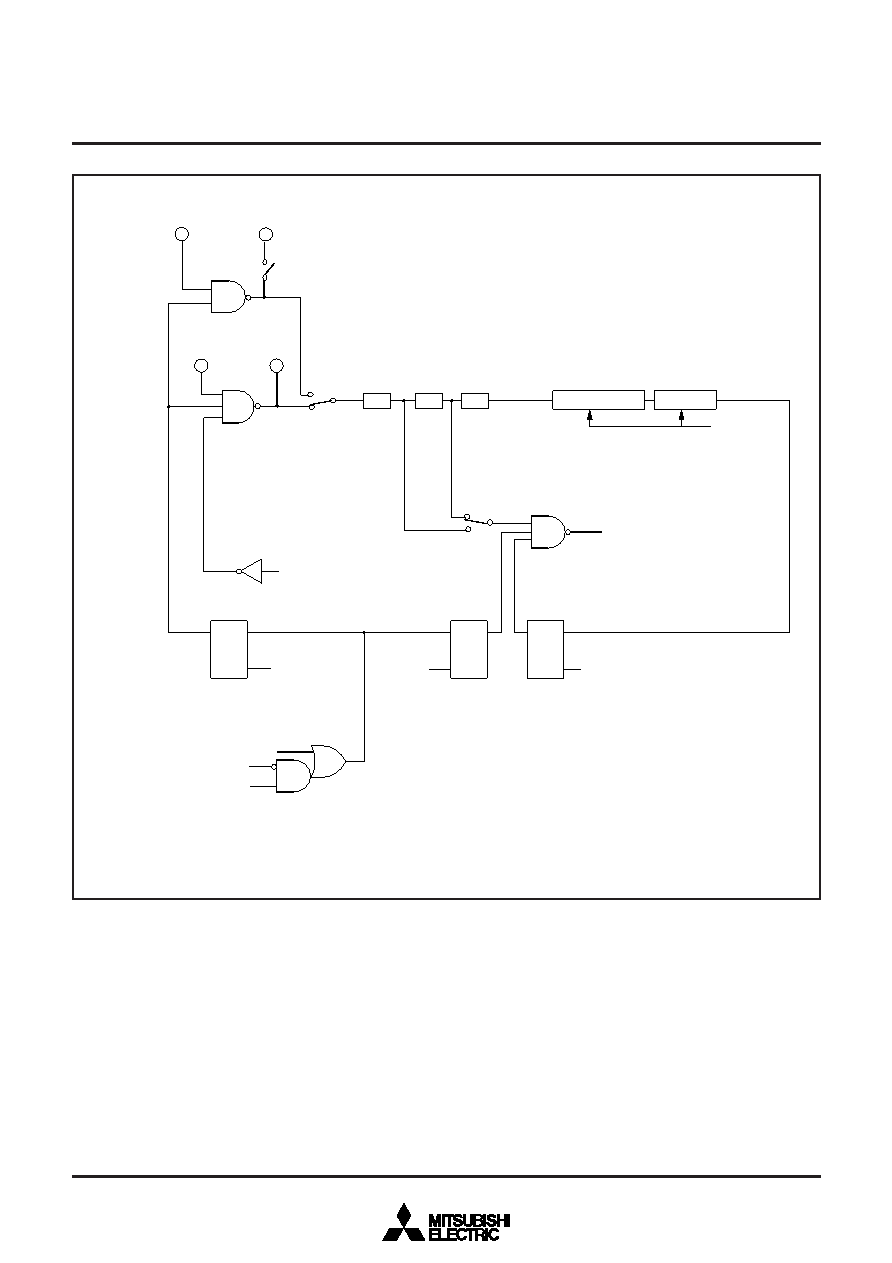

Fig. 59 System clock generating circuit block diagram (Single-chip mode)
WIT instruction
STP instruction
Timing
φ (internal clock)
S
R
Q
STP instruction
S
R
Q
Main clock stop bit
S
R
Q
1/2
1/4
XIN
XOUT
XCOUT
XCIN
Interrupt request
Reset
Interrupt disable flag l
1/2
Port XC
switch bit
“1”
“0”
Low-speed mode
High-speed or
middle-speed
mode
Middle-speed mode
High-speed or
low-speed mode
Main clock division ratio
selection bits (Note)
Note: Either high-speed, middle-speed or low-speed mode is selected by bits 7 and 6 of the CPU mode register.
When low-speed mode is selected, set port Xc switch bit (b4) to “1”.
Main clock division ratio
selection bits (Note)
FF16
0116
Prescaler 12
Timer 1
Reset or
STP instruction
