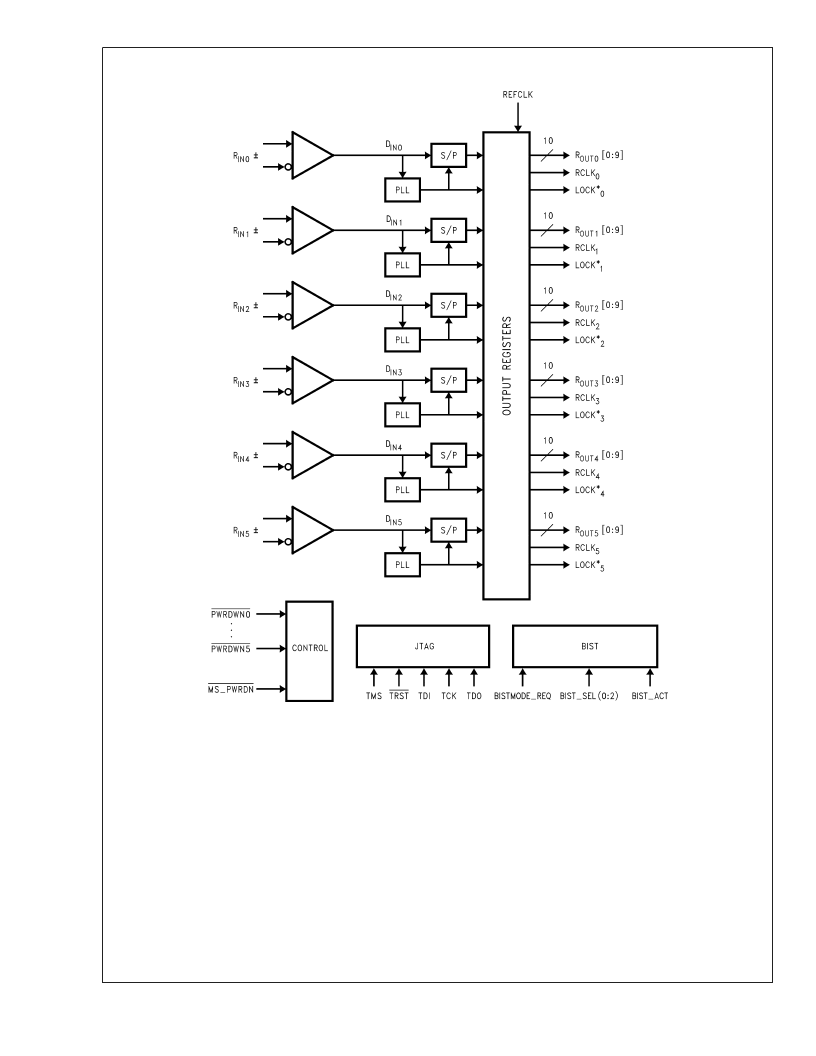

Block Diagram
20028301
Functional Description
The SCAN926260 combines six 1:10 deserializers into a
single chip. Each of the six deserializers accepts a Bus
LVDS
data
stream
from
DS92LV1021, DS92LV1023, DS92LV8028, SCAN921023,
or SCAN921025 Serializer. The deserializers then recover
the clock and data to deliver the resulting 10-bit wide words
to the outputs.
Each of the six channels acts completely independent of
each other. Each independent channel has outputs for a
10-bit wide data word, a recovered clock output, and a
lock-detect output.
The SCAN926260 has three operating states: Initialization,
Data Transfer, and Resynchronization. In addition, there are
two passive states: Powerdown and TRI-STATE. During nor-
National
Semiconductor’s
mal operation, the SCAN6260 also has the capability of
utilizing the IEEE 1149.1 test modes (JTAG) or the Built-In
Self Test mode (BIST).
The following sections describe each operating mode, pas-
sive states, and the JTAG and BIST modes.
Initialization
Before the SCAN926260 receives and deserializes data, it
and the transmitting Serializer must initialize the link. Initial-
ization refers to synchronizing the Serializer’s and the Dese-
rializer’s PLL’s to local clocks. The local clocks must be
within
±
5% of the incoming transmitter clock frequency.After
all devices synchronize to local clocks, the Deserializer syn-
chronizes to the Serializer as the second and final initializa-
tion step.
S
www.national.com
8
