MOTOROLA
MPC7457 RISC Microprocessor Hardware Specifications
11
Electrical and Thermal Characteristics

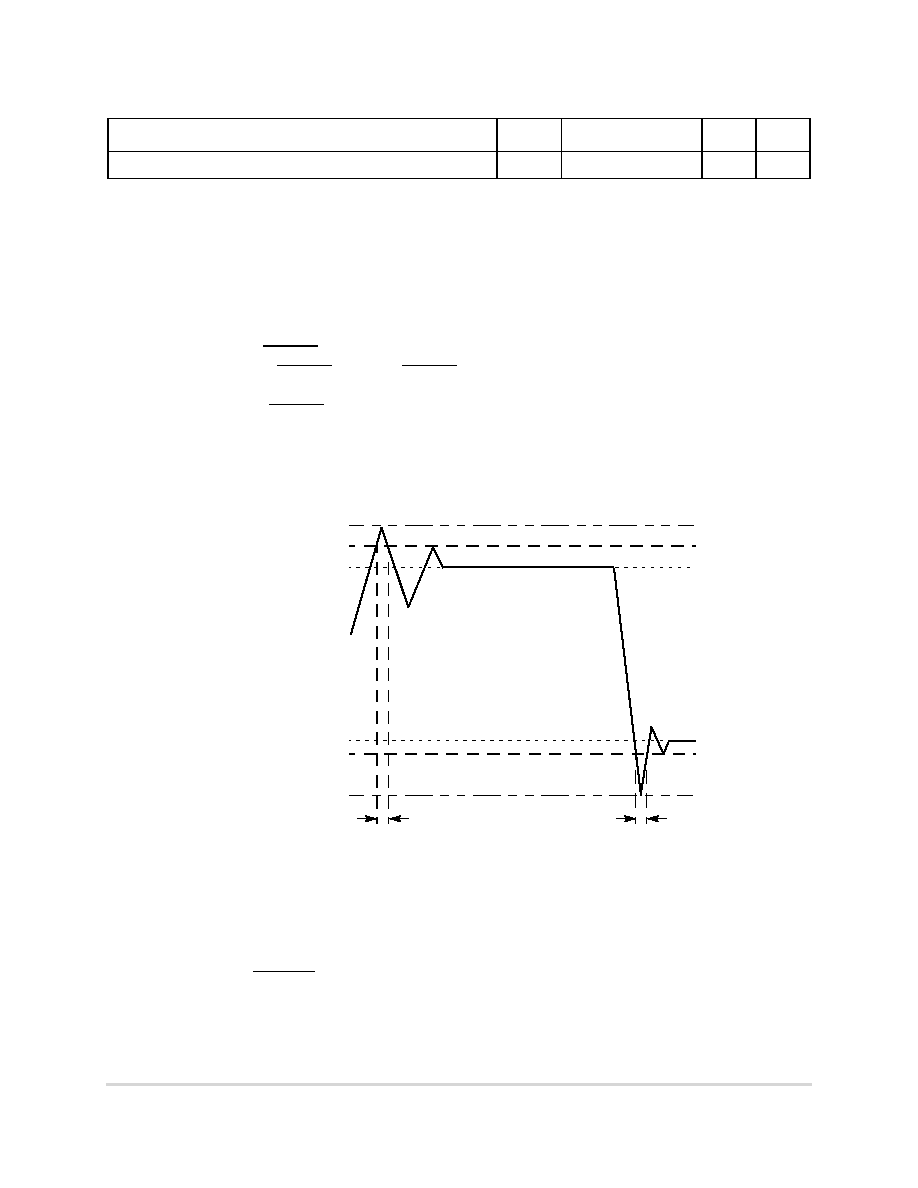

Figure 2 shows the undershoot and overshoot voltage on the MPC7457.
Figure 2. Overshoot/Undershoot Voltage
The MPC7457 provides several I/O voltages to support both compatibility with existing systems and
migration to future systems. The MPC7457 core voltage must always be provided at nominal 1.3 V (see
Table 4 for actual recommended core voltage). Voltage to the L3 I/Os and processor interface I/Os are
provided through separate sets of supply pins and may be provided at the voltages shown in Table 3. The
input voltage threshold for each bus is selected by sampling the state of the voltage select pins at the
negation of the signal HRESET. The output voltage will swing from GND to the maximum voltage applied
to the OVDD or GVDD power pins.
Storage temperature range
Tstg
–55 to 150
°C
Notes:
1. Functional and tested operating conditions are given in Table 4. Absolute maximum ratings are stress ratings only,
and functional operation at the maximums is not guaranteed. Stresses beyond those listed may affect device
reliability or cause permanent damage to the device.
2. Caution: VDD/AVDD must not exceed OVDD/GVDD by more than 1.0 V during normal operation; this limit may be
exceeded for a maximum of 20 ms during power-on reset and power-down sequences.
3. Caution: OVDD/GVDD must not exceed VDD/AVDD by more than 2.0 V during normal operation; this limit may be
exceeded for a maximum of 20 ms during power-on reset and power-down sequences.
4. BVSEL must be set to 0, such that the bus is in 1.8-V mode.
5. BVSEL must be set to HRESET or 1, such that the bus is in 2.5-V mode.
6. L3VSEL must be set to HRESET (inverse of HRESET), such that the bus is in 1.5-V mode.
7. L3VSEL must be set to 0, such that the bus is in 1.8-V mode.
8. L3VSEL must be set to HRESET or 1, such that the bus is in 2.5-V mode.
9. Caution: Vin must not exceed OVDD or GVDD by more than 0.3 V at any time including during power-on reset.
10.Vin may overshoot/undershoot to a voltage and for a maximum duration as shown in Figure 2.
Table 2. Absolute Maximum Ratings 1 (continued)
Characteristic
Symbol
Maximum Value
Unit
Notes
VIH
GND
GND – 0.3 V
GND – 0.7 V
Not to exceed 10%
OVDD/GVDD + 20%
VIL
OVDD/GVDD
OVDD/GVDD + 5%
of tSYSCLK
