Clock synchronous serial I/O mode
deveopment
Tentative Specifications REV.E1
Specifications in this manual are tentative and subject to change.
Mitsubishi microcomputers
M30100/M30102 Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
106
Microcomputer
T
X
D
1
(P3
7
)
CLKS (P3
4
)
CLK
1
(P3
6
)
IN
CLK
IN
CLK
Note: This applies when the internal clock is selected and transmission
is performed only in clock synchronous serial I/O mode.
(c) Transfer clock output from multiple pins function (UART1)
This function allows the setting two transfer clock output pins and choosing one of the two to output a
clock by using the CLK and CLKS select bit (bits 4 and 5 at address 00B0
16
). (See Figure 1.15.10.)
The multiple pins function is valid only when the internal clock is selected for UART1.
(d) Continuous receive mode
If the continuous receive mode enable bit (bits 2 and 3 at address 00B0
16
) is set to “1”, the unit is
placed in continuous receive mode. In this mode, when the receive buffer register is read out, the unit
simultaneously goes to a receive enable state without having to set dummy data to the transmit buffer
register back again.
(e) RxD
1
input pin selection function (UART1)
This function allows the setting two RxD
1
input pins and choosing one of the two to input serial data by
using the RxD
1
input pin select bit (bits 6 at address 00B0
16
).
When selecting "1" (P3
5
) for RxD
1
input pin select bit, P3
7
functions as TxD
1
output pin. When select-
ing "0" (P3
7
), serial data output cannot be performed. However, P3
5
can be used as an input/output
port.

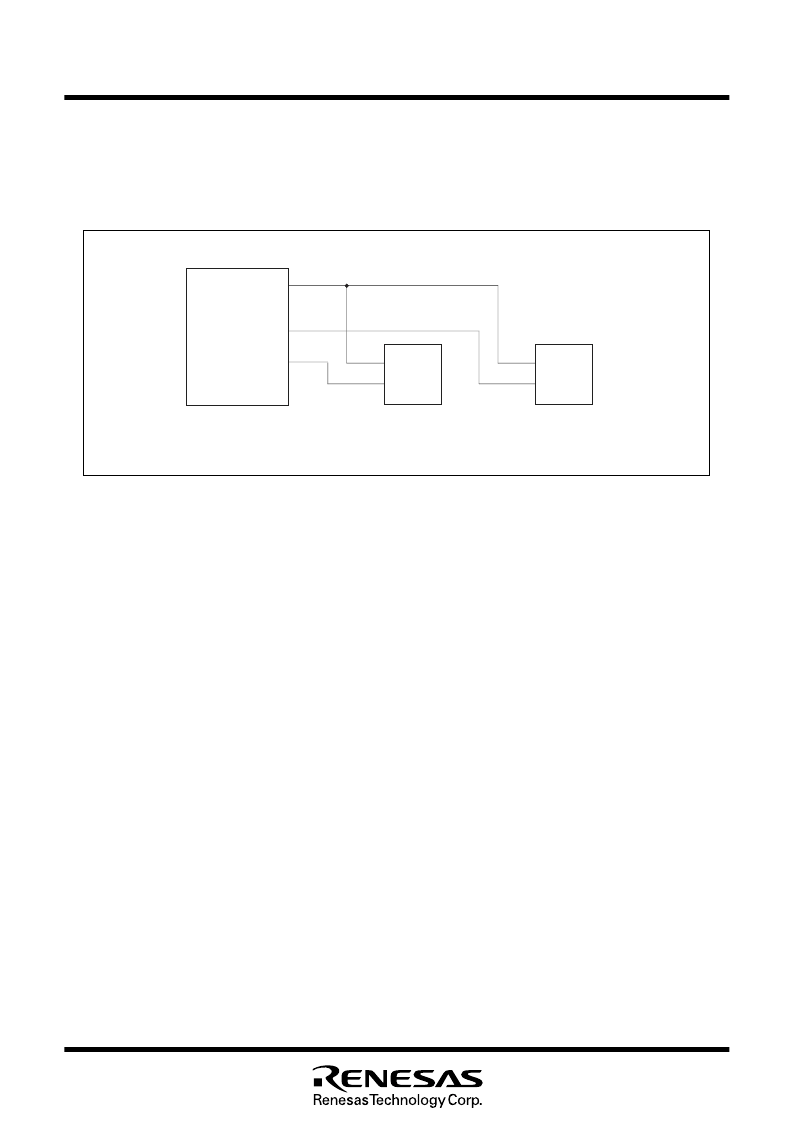

Figure 1.15.10. The transfer clock output from the multiple pins function usage
