FILTER ARCHITECTURE
For the following discussion on filter architecture, refer to the GF9101 Block Diagram and Figure 4.

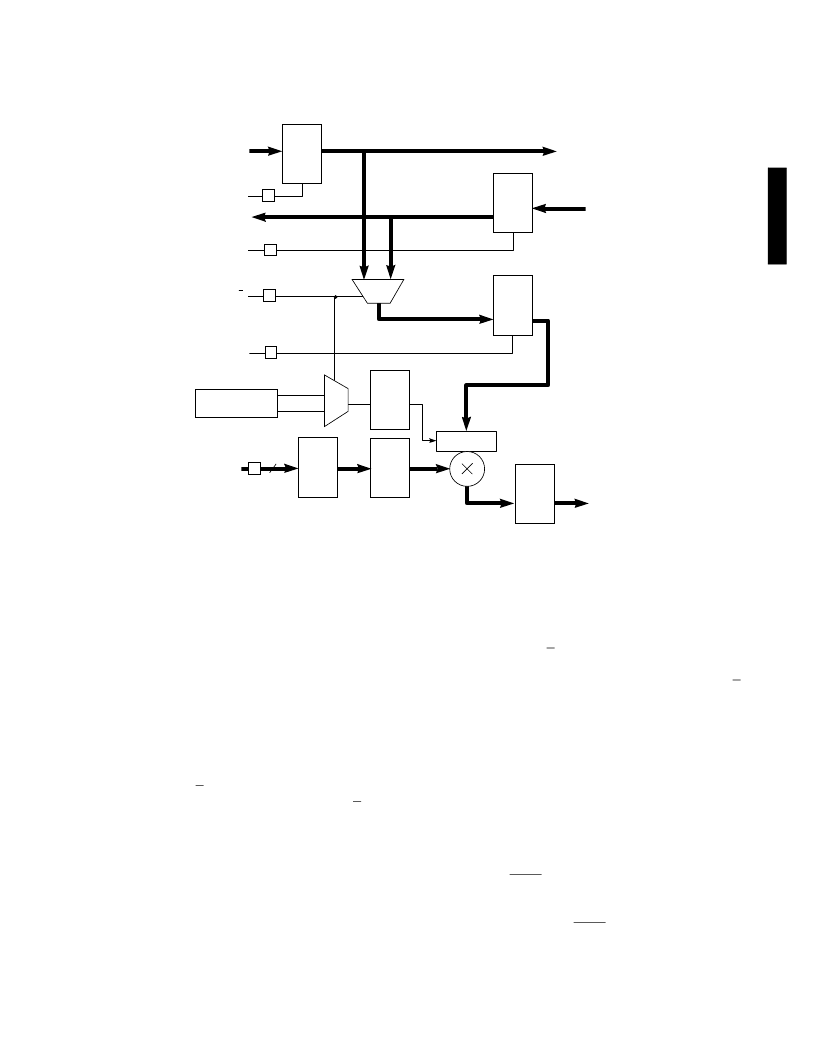

Fig. 4 Tap Cell (1-12)
COEFFICIENT MULTIPLICATION AND ADDITION STAGE
Two shift registers, A and B, are used to shift input data
through the GF9101. Notice that if DATA_B_SEL was set low
during configuration, data applied at DATA_A_IN enters at
tap 1 and exits from tap 12, while data applied at
DATA_B_IN enters at tap 12 and exits from tap 1. This gives
two 12 tap filters. If DATA_B_SEL was set high during
configuration, data applied at DATA_A_IN enters at tap 1,
reverses direction at tap 12 (bypasses REG_12B) and exits
from tap 1 on DATA_B_OUT, while DATA_B_IN is disabled.
This gives a 23 tap filter. ENA and ENB control the shifting
of the input data. The C register holds the next set of 12
input values to be applied to the multipliers.
If ENC is high, SEL_A/B, determines whether the A or B shift
register data enters the C register. SEL_A/B, also
determines whether the MODE A or MODE B control signal
enters the MULT_MODE register. The value in the
MULT_MODE register determineswhether theinputdatato
themultiplierisrecognized as signed or unsigned. MODE A
and MODE B are separate, static control signals which
determine signed/unsigned for A or B input data
respectively. They are common to all taps. When using the
GF9101 as a 23 or 24 tap filter (combiningREG_A and
REG_B to get a single filter output), MODE A and MODE B
should be in the same state. If not, a signed/unsigned
mismatch will occur. One needs to be cautious while using
the GF9101 as two separate filters with MODE A and MODE
B not in the same state (data entering REG_A is signed/
unsigned while in REG_B it is the opposite of REG_A) . If
ENC is low and SEL_A/B, changes state, a signed/unsigned
mismatch will occur. To avoid an error under these
circumstances, always make ENC high after a SEL_A/B,
state change.
The input values in the C register are multiplied by the
coefficient values in the COEF register and the result enters
an adder tree . The coefficients that enter the COEF register
are stored in the internal RAM and are selected by the
externally controlled COEF_ADDR (6-0) bus, which is
common to all taps. At the output of the adder tree is the
untruncated sum of taps 1 through 12.
This sum is then truncated as shown in the GF9101 Block
diagram. The sum then passes through a variable delay
along with the ZERO and NEGATE signals. The variable
delay is provided so that complementary sums from
cascaded GF9101
’
s may be added together in the
pipelined output stage. The ZERO signal zeros the sum and
the NEGATE signal negates the sum.
DATA _A_IN
+10.0
CONFIGURATION
REGISTER
ENA
TO NEXT
TAP
ENB
ENC
1 0
+10.0
+10.0
+10.0
±10.11
±10.11
TO ADDER
DATA_B_IN
TO NEXT TAP
B REG
C REG
MULT
REG
COEF
REG
108 x12
COEF
REG
+10.0 / ±9.0
MULT
MODE
REG
SIGNED /
UNSIGNED
A REG
+10.0
+10.0
±0.11
±0.11
MODE A
MODE B
7
COEF
–
ADDR
1
0
SEL
–
A/B
R
R
R
R
R
