Dual-Core Intel Itanium Processor 9000 Series Datasheet
31
Electrical Specifications
The configuration pins (A[21:17]#) must be asserted the entire time RESET# is
asserted.
RESET# must be asserted before PWRGOOD is asserted.
The duration from the assertion of PWRGOOD to the deassertion of RESET# must
be 1 millisecond minimum.
After RESET# is deasserted, all the configuration, including pins A[21:17]#, must
remain valid for 2 BCLKs (minimum) to 3 BCLKs (maximum).
BCLK is shown as a time reference to the BCLK period. It is not a requirement that
this is BCLKn or BCLKp signal.
Configuration signals other than A[21:17]# must be asserted 4 BCLKs prior to the
deasserted edge of RESET# and must remain valid for 2 BCLKs (minimum) to 3
BCLKs (maximum) after the deasserted edge of RESET#.
Figure 2-5 outlines the timing relationship between the configuration pins, RESET# and
PWRGOOD for coldreset
Warm Reset Sequence:
PWRGOOD remains high throughout the entire sequence as power is already
available and stable to the processor.
The configuration pins (A[21:17]#) must be asserted the entire time RESET# is
asserted.
The duration from the assertion of RESET# to the deassertion of RESET# must be 1
millisecond minimum.

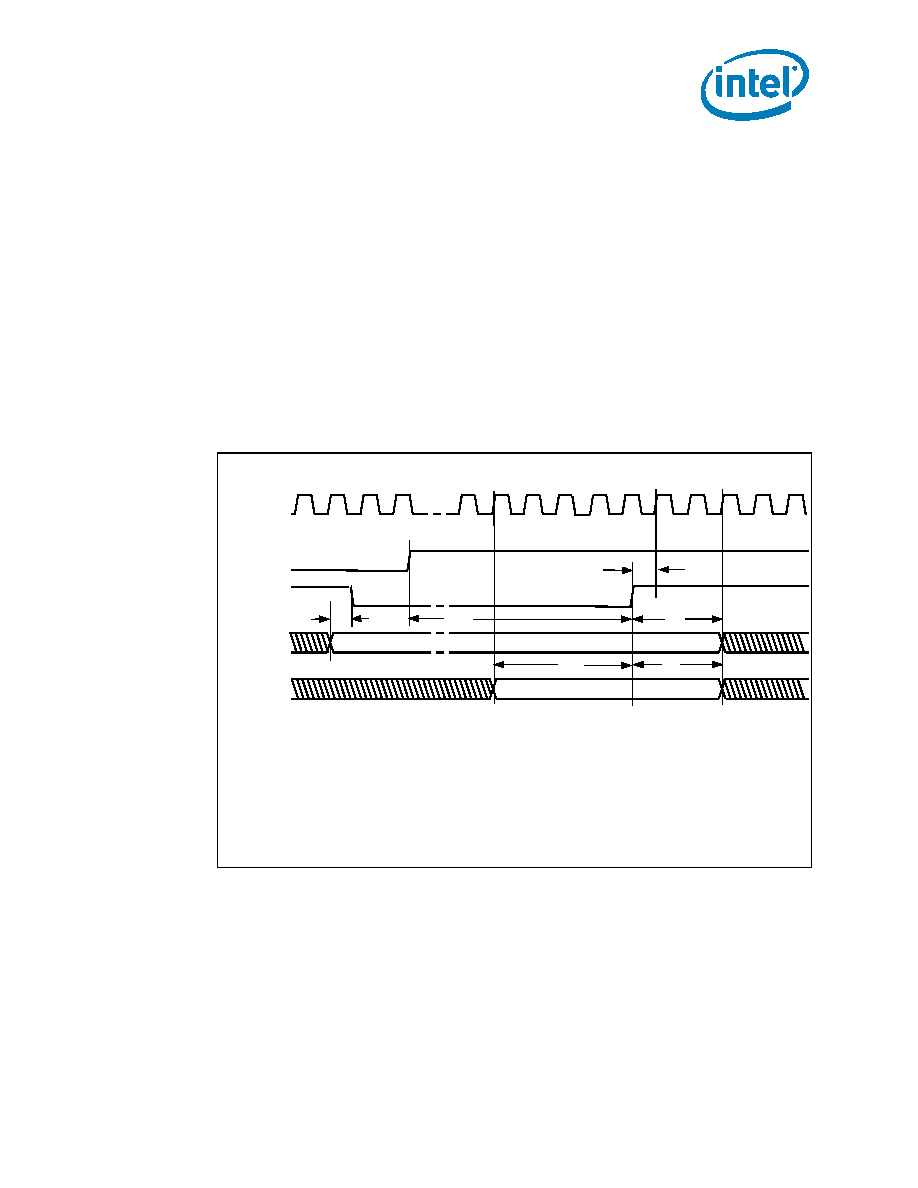

Figure 2-5. System Bus Reset and Configuration Timings for Cold Reset
000859b
BCLK
PWRGOOD
RESET#
Bus Ratio
(A[21:17]#)
TA = 1.15 ns minimum; (set up time to BCLK for deassertion edge of RESET#)
TB = 1 ms minimum for cold reset
TD = 2 BCLKs minimum, 3 BCLKs maximum
TE = 4 BCLKs minimum
TF = 2 BCLKs minimum, 3 BCLKs maximum
Additional
Configuration
Signals
TB
TD
TE
TF
TA
t
1
t
2
t
3
TC
TC = Bus ratio signals must be asserted no later than RESET#
t
-2
t
-1
t
0
t
-4
t
-3
