Electrical Data
Chapter 7
AMD Athlon Processor Model 4 Data Sheet
23792I—June 2001
Preliminary Information
7.10
SYSCLK and SYSCLK# AC and DC Characteristics
Table 9 shows the DC characteristics of the SYSCLK and
SYSCLK# differential clocks. The SYSCLK signal represents
CLKIN and RSTCLK tied together while the SYSCLK# signal
represents CLKIN# and RSTCLK# tied together. Figure 8 shows
this condition.

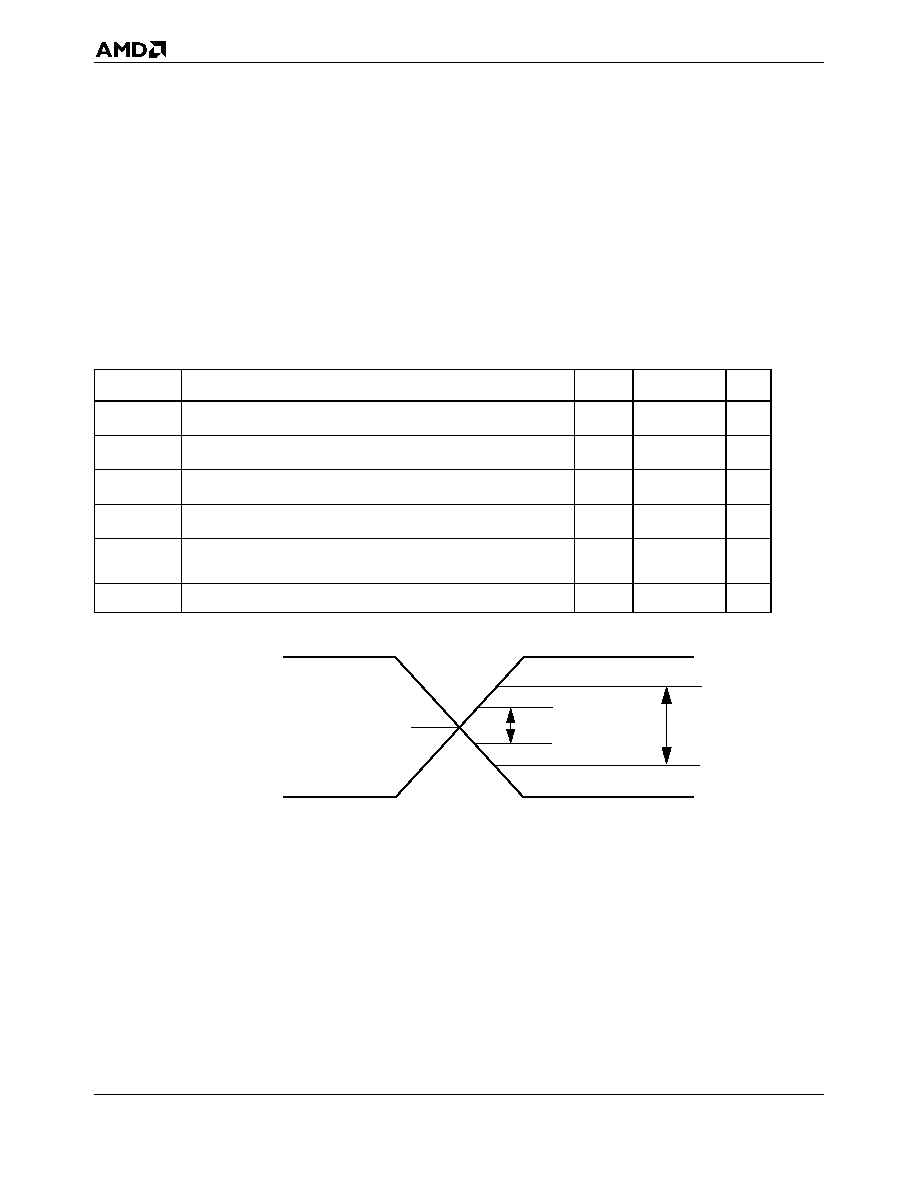

Figure 8. SYSCLK and SYSCLK# Differential Clock Signals
Table 9.
SYSCLK and SYSCLK# DC Characteristics
Symbol
Description
Min
Max
Units
VThreshold-DC Crossing before transition is detected (DC)
400
mV
VThreshold-AC Crossing before transition is detected (AC)
450
mV
ILEAK_P
Leakage current through P-channel pullup to VCC_CORE
—1mA
ILEAK_N
Leakage current through N-channel pulldown to VSS (Ground)
1
mA
VCROSS
Differential signal crossover
VCC_CORE/2
+/– 100
mV
CPIN
Capacitance
4
12
pF
VCROSS
VThreshold-DC = 400mV
VThreshold-AC = 450mV
