μ
PD17201A, 17207
22
4.4.4
Data Buffer (DBF)
The data buffer on the data memory is used for data transfer to and from peripheral hardware and for storage of
data during table reference.
(1) Functions of the Data Buffer
The data buffer has two major functions: a function to transfer to and from hardware and a function to read
constant data from the program memory (for table reference). Figure 4-8 shows the relationship between the
data buffer and peripheral hardware.

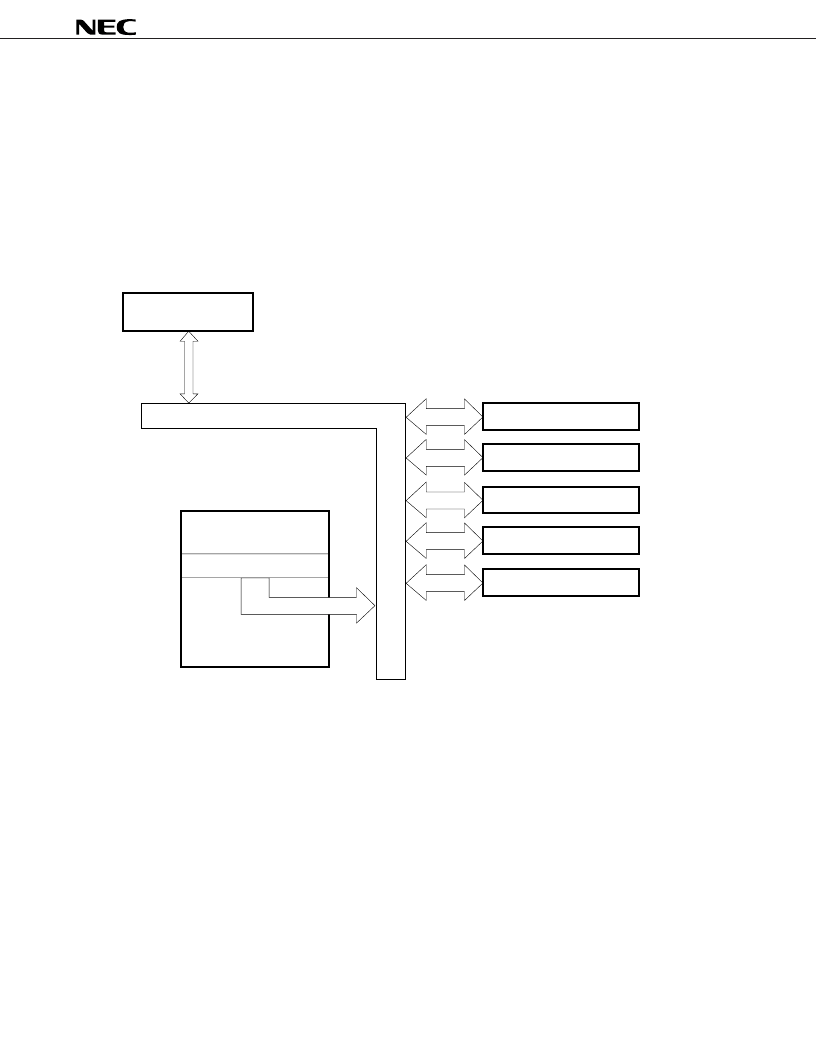

Fig. 4-8 Data Buffer and Peripheral Hardware
Data buffer
(DBF)
Internal bus
Program memory
(ROM)
Constant data
Peripheral
address
Peripheral hardware
Serial interface (SIOSFR)
8-bit timer
(TMC, TMM)
Carrier generator for
remote controller
A/D converter (ADCR)
Address register (AR)
01 H
02 H
03 H/04 H
05H
40H
