M48T513Y, M48T513V
10/30
Write Mode
The M48T513Y/V is in the Write Mode whenever
W (Write Enable) and E (Chip Enable) are low
state after the address inputs are stable.
The start of a write is referenced from the latter oc-
curring falling edge of W or E. A write is terminated
by the earlier rising edge of W or E. The addresses
must be held valid throughout the cycle. E or W
must return high for a minimum of tEHAX from Chip
Enable or tWHAX from Write Enable prior to the ini-
tiation of another read or write cycle. Data-in must
be valid tDVWH prior to the end of write and remain
valid for tWHDX afterward. G should be kept high
during write cycles to avoid bus contention; al-
though, if the output bus has been activated by a
low on E and G a low on W will disable the outputs
tWLQZ after W falls.

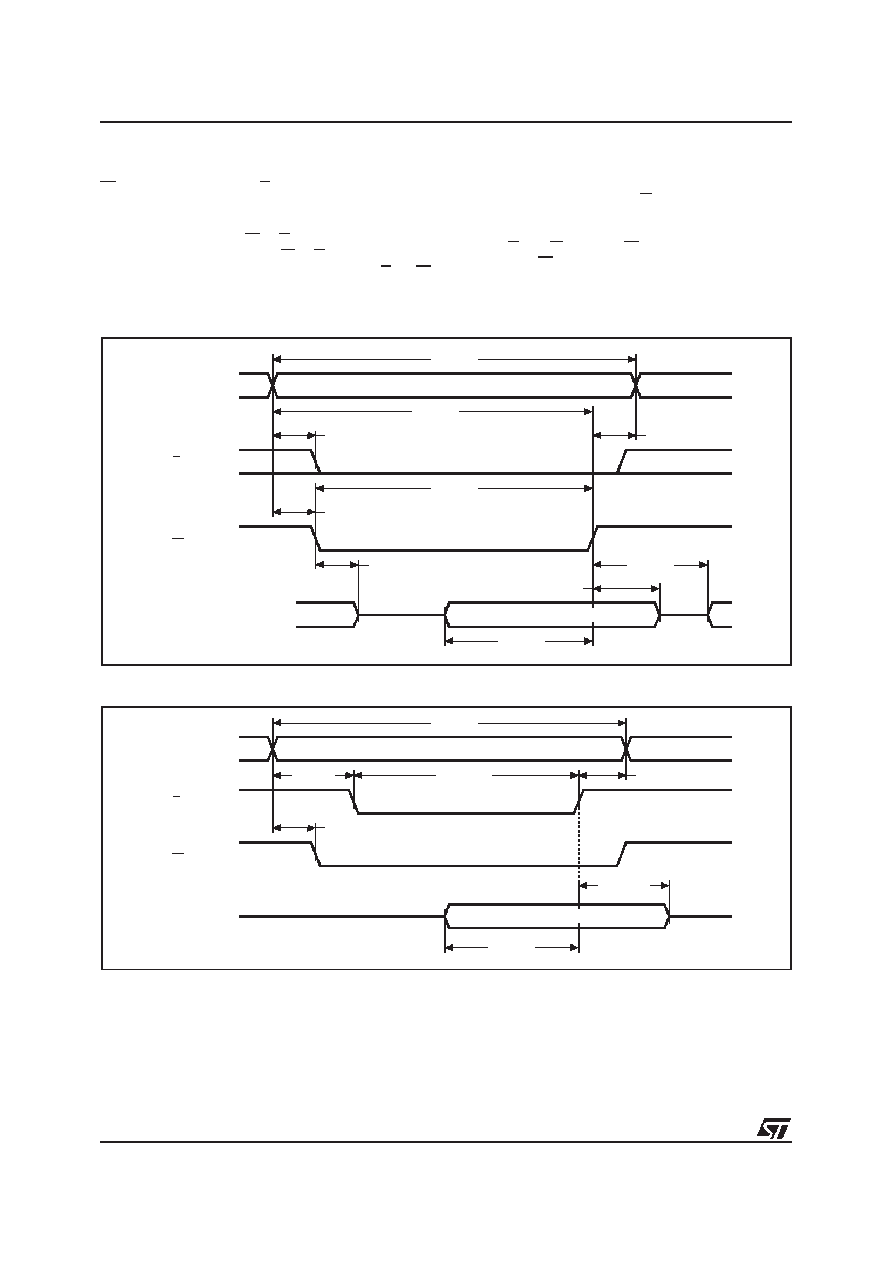

Figure 9. Write Enable Controlled, Write AC Waveforms
Figure 10. Chip Enable Controlled, Write AC Waveforms
AI02382
tAVAV
tWHAX
tDVWH
DATA INPUT
A0-A16
E
W
DQ0-DQ7
VALID
tAVWH
tAVEL
tWLWH
tAVWL
tWLQZ
tWHDX
tWHQX
AI02582
tAVAV
tEHAX
tDVWH
A0-A16
E
W
DQ0-DQ7
VALID
tAVEL
tAVWL
tELEH
tWHDX
DATA INPUT
