M48T513Y, M48T513V
22/30

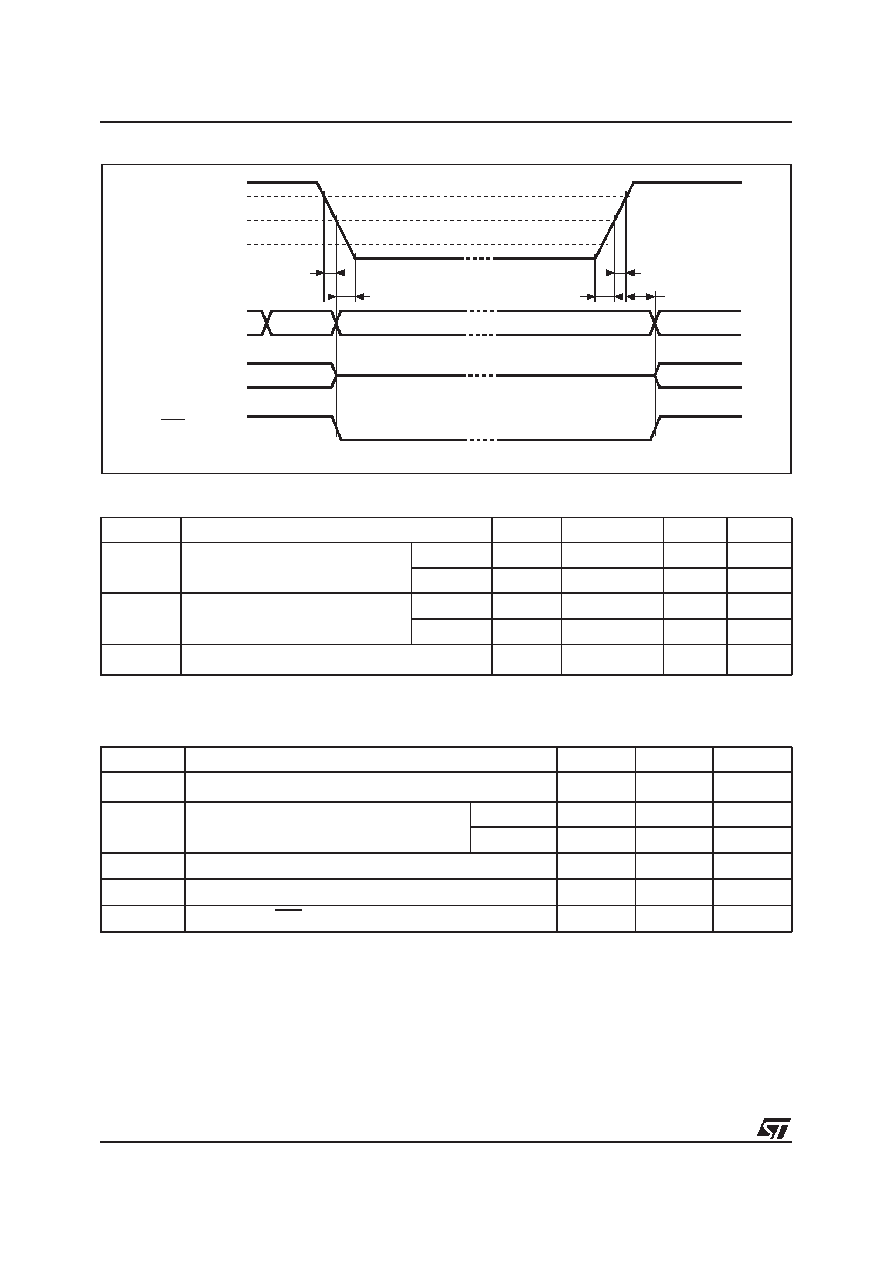

Figure 18. Power Down/Up Mode AC Waveforms
Table 12. Power Down/Up Trip Points DC Characteristics
Note: All voltages referenced to VSS.
Note: At 25
°C.
Table 13. Power Down/Up AC Characteristics
Note: 1. VPFD (max) to VPFD (min) fall time of less than tF may result in deselection/write protection not occurring until 200ms after VCC pass-
es VPFD (min).
2. VPFD (min) to VSS fall time of less than tFB may cause corruption of RAM data.
Symbol
Parameter
Min
Typ
Max
Unit
VPFD
Power-fail Deselect Voltage
M48T513Y
4.2
4.35
4.5
V
M48T513V
2.7
2.9
3.0
V
VSO
Batter y Back-up Switchover Voltage
M48T513Y
3.0
V
M48T513V
VPFD –100mV
tDR
(1)
Expected Data Retention Time
10
YEARS
Symbol
Parameter
Min
Max
Unit
tF
(1)
VPFD (max) to VPFD (min) VCC Fall Time
300
s
tFB
(2)
VPFD (min) to VSS VCC Fall Time
M48T513Y
10
s
M48T513V
150
s
tR
VPFD (min) to VPFD (max) VCC Rise Time
0
s
tRB
VSS to VPFD (min) VCC Rise Time
1
s
tREC
VPFD (max) to RST High
40
200
ms
AI01805
VCC
INPUTS
OUTPUTS
DON’T CARE
HIGH-Z
tF
tFB
tR
tRB
VALID
RECOGNIZED
VPFD (max)
VPFD (min)
VSO
tREC
RST
