LHF64FD5 16
Rev. 2.44
Table 12. Partition Configuration Register Definition
R
15
R
7
R
14
R
6
R
13
R
5
R
12
R
4
R
11
R
3
PC2
10
R
2
PC1
9
R
1
PC0
8
R
0
PCR.15-11 = RESERVED FOR FUTURE
ENHANCEMENTS (R)
PCR.10-8 = PARTITION CONFIGURATION (PC2-0)
000 = No partitioning. Dual Work is not allowed.
001 = Plane1-3 are merged into one partition.
(default in a bottom parameter device)
010 = Plane 0-1 and Plane2-3 are merged into one
partition respectively.
100 = Plane 0-2 are merged into one partition.
(default in a top parameter device)
011 = Plane 2-3 are merged into one partition. There are
three partitions in this configuration. Dual work
operation is available between any two partitions.
110 = Plane 0-1 are merged into one partition. There are
three partitions in this configuration. Dual work
operation is available between any two partitions.
101 = Plane 1-2 are merged into one partition. There are
three partitions in this configuration. Dual work
operation is available between any two partitions.
111 = There are four partitions in this configuration.
Each plane corresponds to each partition respec-
tively. Dual work operation is available between any
two partitions.
PCR.7-0 = RESERVED FOR FUTURE
ENHANCEMENTS (R)
NOTES:
After power-up or device reset, PCR10-8 (PC2-0) is set to
"001" in a bottom parameter device and "100" in a top
parameter device.
See Figure 4 for the detail on partition configuration.
PCR.15-11 and PCR.7-0 are reserved for future use and
should be masked out when checking the partition
configuration register.
P
P
P
P
PARTITION1
P
P
P
P
PARTITION0
P
P
P
P
PARTITION0
P
P
P
P
PARTITION0
PARTITION1
PARTITION1
PARTITION0
P
P
P
P
PARTITION1
P
P
P
P
PARTITION0
P
P
P
P
PARTITION0
P
P
P
P
PARTITION0
PARTITION1
PARTITION1
PARTITION0
PARTITION2
PARTITION3
PARTITION2
PARTITION2
PARTITION1
PARTITION2
0
0
0
0
0
1
0
1
0
1
0
0
0
1
1
1
1
0
1
0
1
1
1
1
PC2 PC1PC0
PARTITIONING FOR DUAL WORK
PARTITIONING FOR DUAL WORK
PC2 PC1PC0

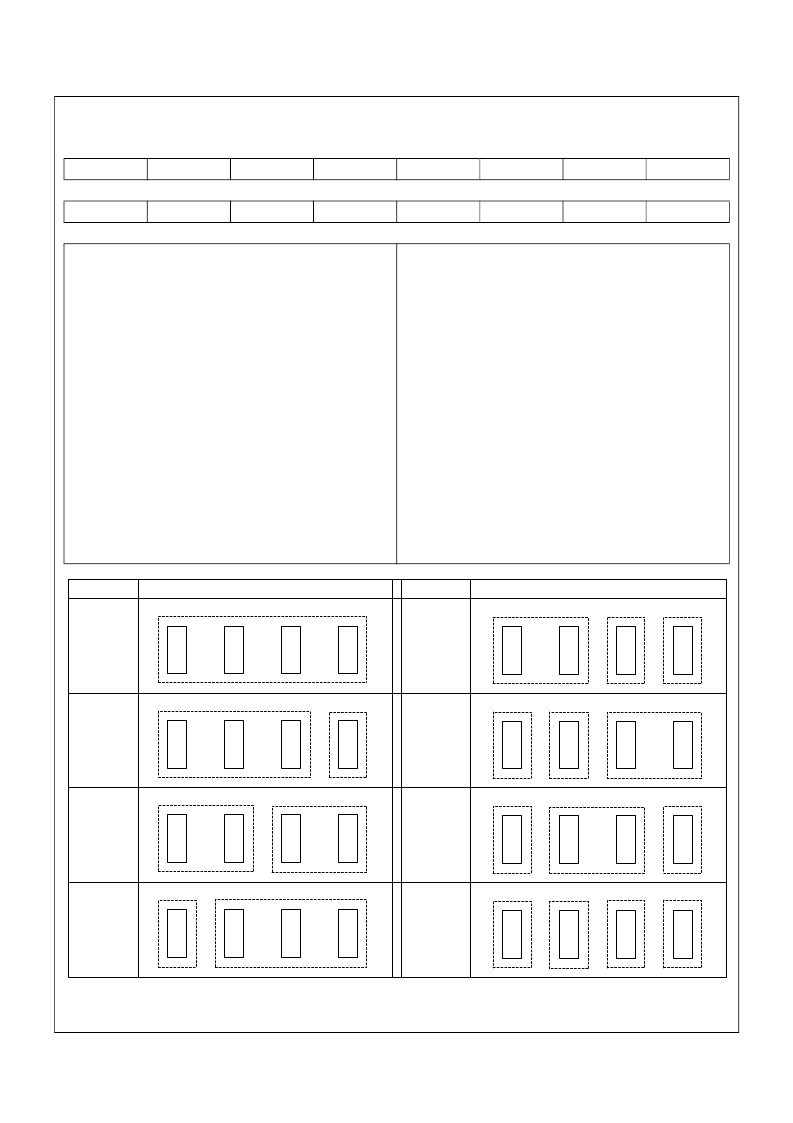

Figure 4. Partition Configuration
