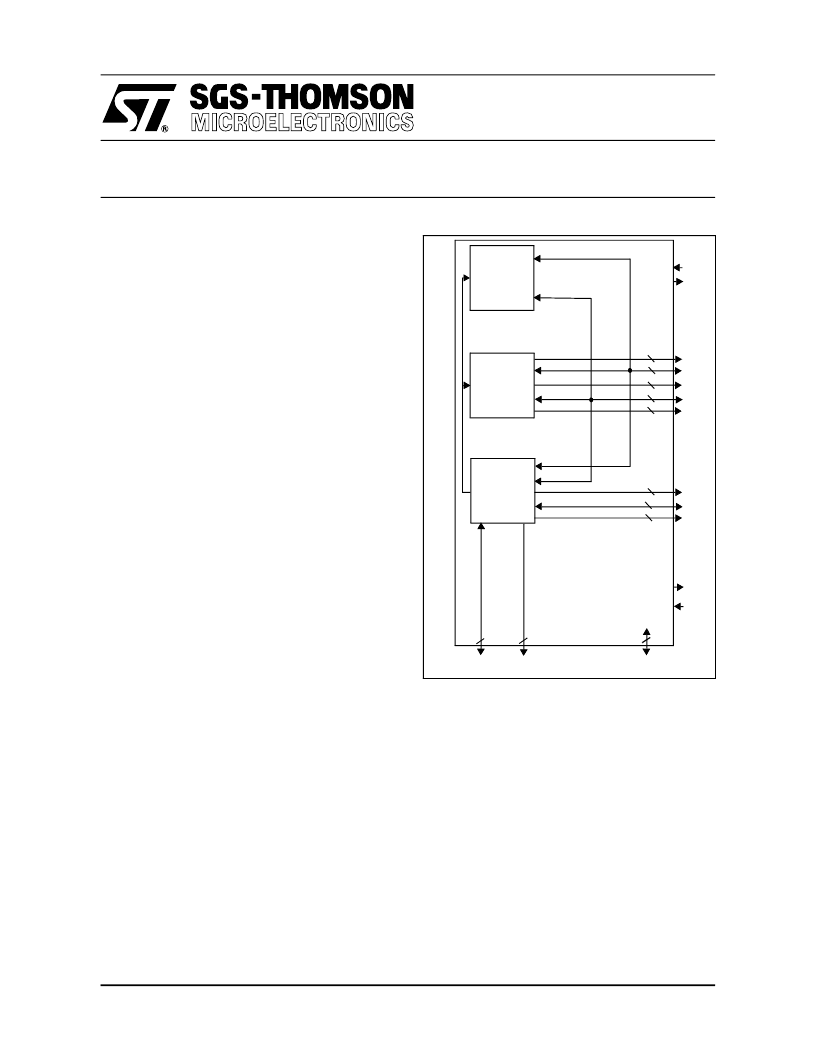

4 September 1997
1/89
This is preliminary information on a new product in development or undergoing evaluation. Details are subject to change without notice
D950-CORE
16-Bit Fixed Point Digital Signal Processor (DSP) Core
PRELIMINARY DATA
I
Performance
I
66 Mips - 15ns instruction cycle time
I
Memory Organization
I
HARVARD architecture
I
Two 64k x 16-bit data memory spaces
I
One 64k x 16-bit program memory space
I
2 stacks in data memory spaces
I
Fast and Flexible Buses
I
Two 16-bit address 16-bit data non-
multiplexed data buses
I
One 16-bit address 16-bit data non-
multiplexed instruction bus
I
Data Calculation Unit
I
16 x 16-bit parallel multiplier
I
40-bit barrel shifter unit
I
40-bit ALU
I
Two 40-bit extended precision accumulators
I
Fractional and integer arithmetic with support
for floating point and multi-precision
I
16-bit bit manipulation unit (BMU)
I
Address Calculation Unit
I
Two address calculation units with modulo
and bit-reverse capability
I
2 x 16-bit address registers
I
4 x 16-bit index registers
I
2 x 16-bit base and maximum address
registers for modulo addressing
I
Program Control Unit
I
16-bit program counter
I
3 Hardware Loop Capabilities
I
Power Consumption
I
Single 3.3V power supply
I
Low-power standby mode
I
Electrical Characteristics
I
Operating frequency down to DC
I
Channels
I
General purpose 8-bit I/O port
I
Dedicated hardware for Emulation and Test,
IEEE 1149.1 (JTAG) interface compatible
I
Peripherals and Memory
I
Macrocells for peripherals such as the bus
switch unit, interrupt controller and DMA
controller
I
Standard cells library, I/O library
I
Memory generators for RAM and ROM
I
Development Tools
I
JTAG PC board with graphic windowed high
level source debugger for AS-DSP emulation
I
Complete crash-barrier chain (assembler /
simulator / linker) running on PC and SUN,
I
Complete GNU chain (assembler / simulator /
linker / C compiler / C debugger) for SUN
I
VHDL model (SYNOPSYS & MENTOR)
DATA
CALCULATION
UNIT
ADDRESS
CALCULATION
UNIT
PROGRAM
CONTROL
UNIT
C
D
P
V
D
V
S
TEST & EMULATION
PO/P7
CONTROL
11
8
14
X
Y
6
16
16
16
16
3
16
16
O
C
XA-bus
YA-bus
ID-bus
IA-bus
