January23,2007 21635C5
Am29SL160C
31
D A T A S H E E T
ABSOLUTE MAXIMUM RATINGS
Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . –65
°
C to +150
°
C
Ambient Temperature
with Power Applied. . . . . . . . . . . . . . –65
°
C to +125
°
C
Voltage with Respect to Ground
V
CC
(Note 1). . . . . . . . . . . . . . . . .–0.5 V to +2.5 V
A9
,
OE#
,
and
RESET# (Note 2) . . . . . . . .–0.5 V to +11.0 V
All other pins (Note 1) . . . . .–0.5 V to V
CC
+ 0.5 V
Output Short Circuit Current (Note 3) . . . . . . 100 mA
Notes:
1. Minimum DC voltage on input or I/O pins is –0.5 V. During
voltage transitions, input or I/O pins may overshoot V
SS
to
–2.0 V for periods of up to 20 ns. See
Figure 7
. Maximum
DC voltage on input or I/O pins is V
CC
+0.5 V. During
voltage transitions, input or I/O pins may overshoot to V
CC
+2.0 V for periods up to 20 ns. See
Figure 8
.
2. Minimum DC input voltage on pins A9, OE#, RESET#,
and WP#/ACC is –0.5 V. During voltage transitions, A9,
OE#, WP#/ACC, and RESET# may overshoot V
SS
to –2.0
V for periods of up to 20 ns. See
Figure 7
. Maximum DC
input voltage on pin A9 is +11.0 V which may overshoot to
+12.5 V for periods up to 20 ns. Maximum DC input
voltage on pin WP#/ACC is +10.0 V which may overshoot
to +11.5 V for periods up to 20 ns.
3. No more than one output may be shorted to ground at a
time. Duration of the short circuit should not be greater
than one second.
Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device. This is
a stress rating only; functional operation of the device at
these or any other conditions above those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to absolute maximum rating
conditions for extended periods may affect device reliability.
OPERATING RANGES
Commercial (C) Devices
Ambient Temperature (T
A
) . . . . . . . . . . . 0°C to +70°C
Industrial (I) Devices
Ambient Temperature (T
A
) . . . . . . . . . –40°C to +85°C
V
CC
Supply Voltages
V
CC
, all speed options . . . . . . . . . . . .+1.8 V to +2.2 V
Operating ranges define those limits between which the func-
tionality of the device is guaranteed.
20 ns
20 ns
0.0 V
–0.5 V
20 ns
–2.0 V

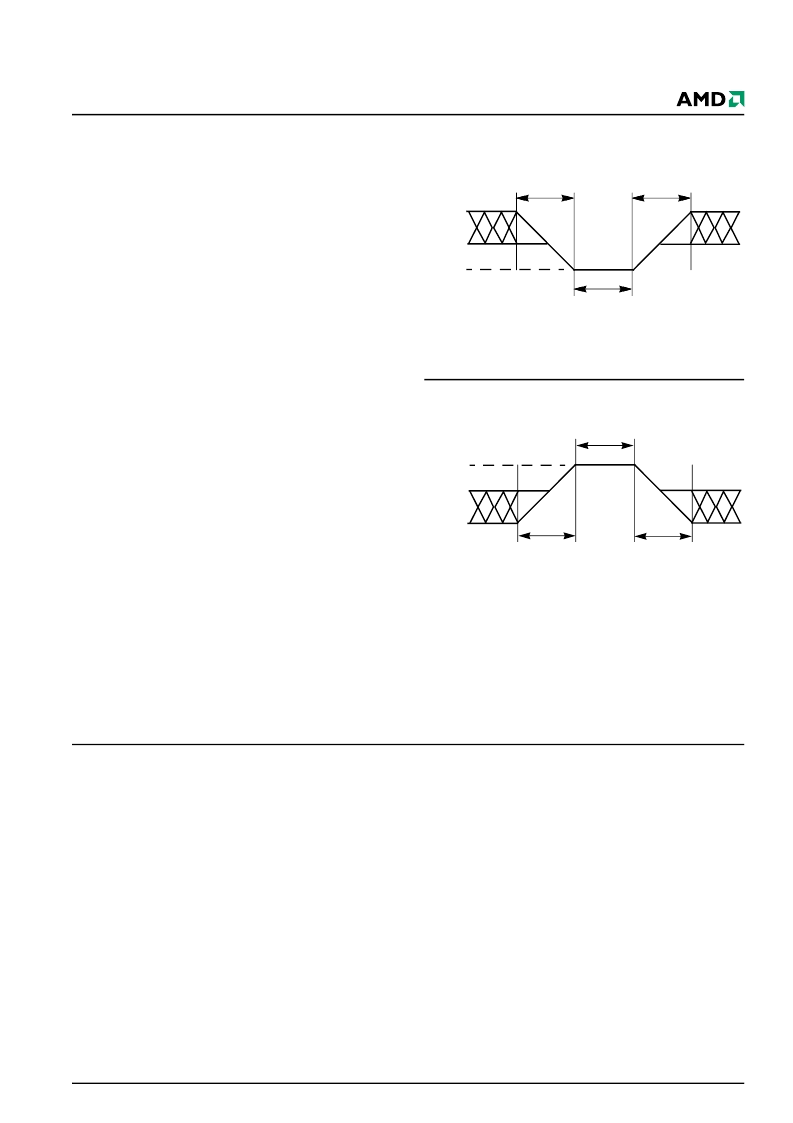

Figure 7.
Maximum Negative
Overshoot Waveform
20 ns
20 ns
V
+2.0 V
V
+0.5 V
20 ns
2.0 V
Figure 8.
Overshoot Waveform
Maximum Positive
