參數資料
型號： PIC18LF2450T-I/SO
廠商： Microchip Technology
文件頁數： 112/143頁
文件大?。?/td> 0K
描述： IC PIC MCU FLASH 8KX16 28SOIC
標準包裝： 1,600
系列： PIC® 18F
核心處理器： PIC
芯體尺寸： 8-位
速度： 48MHz
連通性： UART/USART，USB
外圍設備： 欠壓檢測/復位，HLVD，POR，PWM，WDT
輸入/輸出數： 23
程序存儲器容量： 16KB（8K x 16）
程序存儲器類型： 閃存
RAM 容量： 768 x 8
電壓 - 電源 (Vcc/Vdd)： 2 V ~ 5.5 V
數據轉換器： A/D 10x10b
振蕩器型： 內部
工作溫度： -40°C ~ 85°C
封裝/外殼： 28-SOIC（0.295"，7.50mm 寬）
包裝： 帶卷 (TR)
PIC18F2450/4450
DS39760A-page 68
Advance Information
2006 Microchip Technology Inc.
5.4.3.1
FSR Registers and the
INDF Operand
At the core of Indirect Addressing are three sets of
registers: FSR0, FSR1 and FSR2. Each represents a
pair of 8-bit registers: FSRnH and FSRnL. The four
upper bits of the FSRnH register are not used, so each
FSR pair holds a 12-bit value. This represents a value
that can address the entire range of the data memory
in a linear fashion. The FSR register pairs, then, serve
as pointers to data memory locations.
Indirect Addressing is accomplished with a set of
Indirect File Operands, INDF0 through INDF2. These
can be thought of as “virtual” registers; they are
mapped in the SFR space but are not physically
implemented. Reading or writing to a particular INDF
register actually accesses its corresponding FSR
register pair. A read from INDF1, for example, reads
the data at the address indicated by FSR1H:FSR1L.
Instructions that use the INDF registers as operands
actually use the contents of their corresponding FSR as
a pointer to the instruction’s target. The INDF operand
is just a convenient way of using the pointer.
Because Indirect Addressing uses a full 12-bit address,
data RAM banking is not necessary. Thus, the current
contents of the BSR and the Access RAM bit have no
effect on determining the target address.

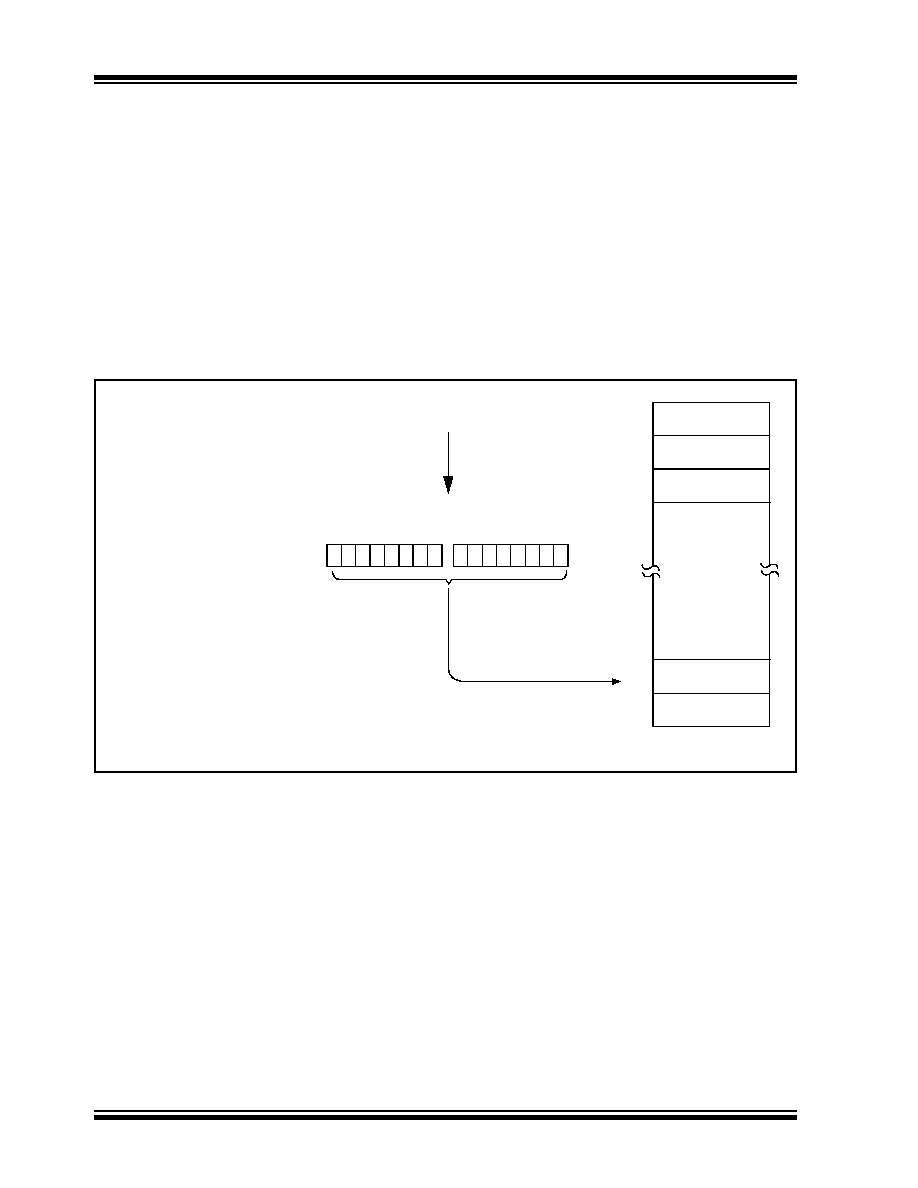

FIGURE 5-7:
INDIRECT ADDRESSING
FSR1H:FSR1L
0
7
Data Memory
000h
100h
200h
300h
F00h
E00h
FFFh
Bank 0
Bank 1
Bank 2
Bank 14
Bank 15
Bank 3
through
Bank 13
ADDWF, INDF1, 1
0
7
Using an instruction with one of the
indirect addressing registers as the
operand....
...uses the 12-bit address stored in
the FSR pair associated with that
register....
...to determine the data memory
location to be used in that operation.
In this case, the FSR1 pair contains
ECCh. This means the contents of
location ECCh will be added to that
of the W register and stored back in
ECCh.
x x x x 1 1 1 0
1100 1 1 00
Bank 14
