K-Band Power Amplifier MMIC
13
FMM5822X

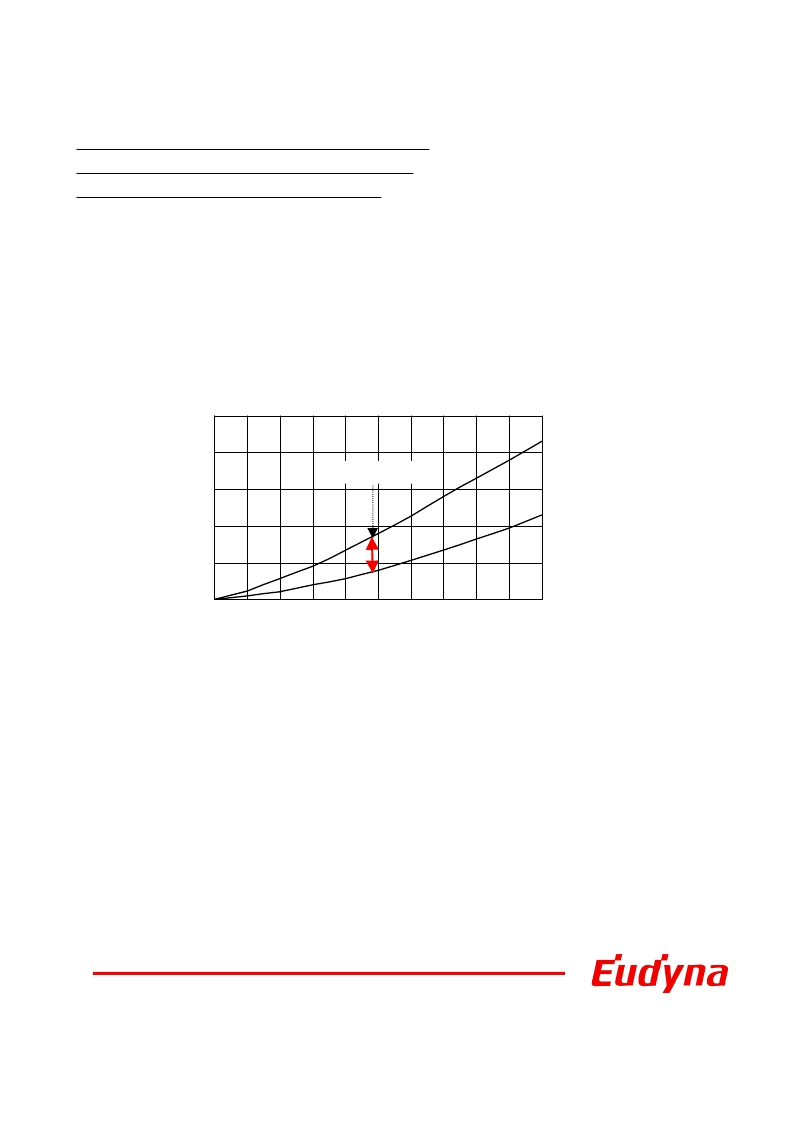

DIE ATTACH
1) The die-attach station must have accurate temperature control and an inert forming gas should
be used.
2) Chips should be kept at room temperature except during die-attach.
3) Place package or carrier on the heated stage.
4) Lightly grasp the chip edges by the longer side using tweezers.
Die attach conditions
Stage Temperature : 300 to 310 deg.C
Time : less than 15 seconds
AuSn Preform Volume : per next Figure
WIRE BONDING
The bonding equipment must be properly grounded. The following or equivalent equipment, tools,
materials, and conditions are recommended.
1) Bonding Equipment and Bonding Tool.
Bonding Equipment : West Bond Model 7400 (Manual Bonder)
Bonding Tool : CCOD-1/16-S-437-60-F-2010-MP (Deweyl)
2) Bonding Wire
Material : Hard or Half hard gold
Diameter : 0.7 to 1.0 mil
3) Bonding Conditions
Method : Thermal Compression Bonding with Ultrasonic Power
Tool Force : 0.196 N ± 0.0196 N
Stage Temperature : 215 deg.C ± 5 deg.C
Tool Heater : None
Ultrasonic Power Transmitter : West Bond Model 1400
Duration : 150 mS/Bond
0
500
1000
1500
2000
2500
0
2
4
6
8
10
12
14
16
18
20
Area of Chip Bach Surface (mm^2)
V
-
/
3
)
FMM5822X
