1
K-Band Power Amplifier MMIC
FEATURES
High Output Power; P1dB = 31 dBm (Typ.)
High Linear Gain; GL = 23 dB(Typ.)
Frequency Band ; 21.0 - 27.0 GHz
High Linearity ; OIP3 = 39dBm
Impedance Matched Zin/Zout = 50
Edition 2.0
April 2006
FMM5829X
DESCRIPTION
The FMM5829X is a power amplifier MMIC that contains a four
stage amplifier, internally matched, for standard communications
band in 21.0 to 27.0GHz frequency range. This product is well
suited for point-to-point radio applications.
Eudyna’s stringent Quality Assurance Program assures the
highest reliability and consistent performance.

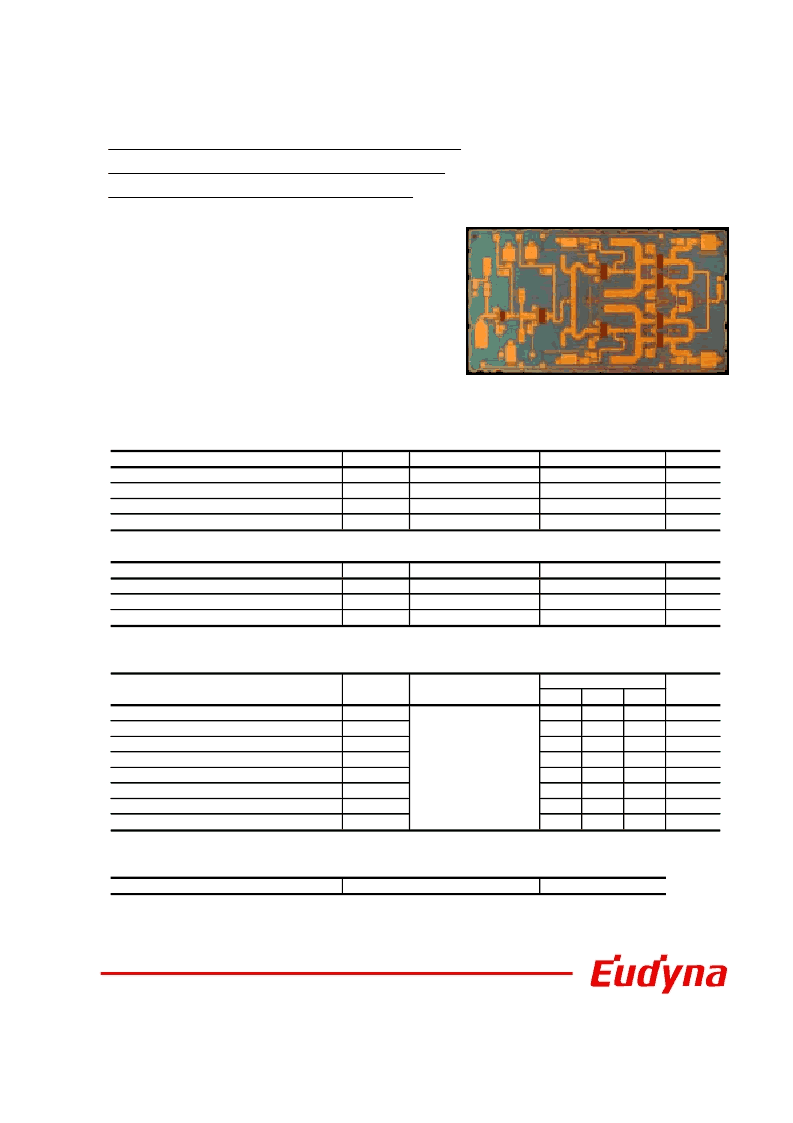

Device photo
ABSOLUTE MAXIMUM RATING
Item
Symbol
VDD
VGG
Pin
Tstg
Condition
Unit
V
V
dBm
degC
Drain-Source Voltage
Gate-Source Voltage
Input Power
Storage Temperature
RECOMMENDED OPERATING CONDITIONS
Item
Drain-Source Voltage
Input Power
Operating Backside Temperature
This Product should be hermetically packaged.
Symbol
VDD
Pin
Top
Condition
Unit
V
dBm
degC
ELECTRICAL CHARACTERISTICS (Ambient Temperature Ta=25
℃
)
Unit
Min.
21
29.0
19
-
-34
-
-
-
G.C.P. : Gain Compression Point
S.C.L. : Single Carrier Level
Typ.
-
31.0
22
21
-38
1000
-8
-8
Max.
27
-
25
-
-
1500
Frequency Range
Output Power at 1dB G.C.P.
Power Gain at 1dB G.C.P.
Power-added Efficiency at 1dB G.C.P.
Third Order Intermodulation*
Drain Current at 1dB G.C.P.
Input Return Loss (at Pin=-20dBm)
Output Return Loss (at Pin=-20dBm)
Note : RF parameter sample size 10ps. Criteria (accept/reject)=(0/1)
f
VDD=6V
IDD(DC)=800mA(typ)
Zs=Zl=50ohm
GHz
dBm
dB
%
dBc
mA
dB
dB
P1dB
G1dB
Nadd
IM3*
Iddrf
RLin
RLout
*df=10MHz,Po=20dBm (SCL)
-
ESD
Note : Based on EIAJ ED-4701 C-111A(C=100pF, R=1.5k
Ω
)
Class 0
~ 199V
12
Recommend
≦
7
Item
Symbol
Test Conditions
Limits
-40 ~ +85
22
-55 ~ +125
Rating
10
-3
http://www.eudyna.com/
