參數資料
| 型號： | DS16EV5110ASQX/NOPB |
| 廠商： | National Semiconductor |
| 文件頁數： | 3/24頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC EQUALIZER VIDEO 3D+C 48-LLP |
| 產品培訓模塊： | Signal Conditioning Applications |
| 標準包裝： | 2,500 |
| 類型： | 視頻均衡器 |
| 應用： | HD 顯示器，DVI/HDMI |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 48-WFQFN 裸露焊盤 |
| 供應商設備封裝： | 48-LLP（7x7） |
| 包裝： | 帶卷 (TR) |
| 其它名稱： | DS16EV5110ASQX |
Input
Termination
Equalizer
Limiting
Amplifier
DC Offset Correction
Data Channel
(0-2)
Boost Setting
3
BST_0 : BST_2
BST
CNTL
EN
FEB
SMBus Reg.
REG3[7],
REG4[7],
REG4[3]
EN
SMBus Register
D_OUT+
D_OUT-
D_IN+
D_IN-
SMBus Reg.
REG7[0]
SNLS301C – JULY 2008 – REVISED APRIL 2013
CLOCK CHANNEL
The clock channel incorporates a limiting amplifier, a DC offset correction, and a TMDS driver as shown in
CLOCK CHANNEL SIGNAL DETECT
The DS16EV5110A features a signal detect circuit on the clock channel. The status of the clock signal can be
determined by either reading the Signal Detect bit (SD) in the SMBus registers (see Table 1) or by the state of
the SD pin. A logic High indicates the presence of a signal that has exceeded a specified threshold value (called
SD_ON). A logic Low means that the clock signal has fallen below a threshold value (called SD_OFF). These
values are programmed via the SMBus (Table 1). If not programmed via the SMBus, the thresholds take on the
default values for the SD_OFF and SD_ON values as indicated in Table 4. The Signal Detect threshold values
can be changed through the SMBus. All threshold values specified are DC peak-to-peak differential signals
(positive signal minus negative signal) at the input of the device.
Table 4. Clock Channel Signal Detect Threshold
Values
Bit 1
Bit 0
SD_OFF Threshold
SD_ON Threshold
Register 06 (mV)
Register 05 (mV)
0
40 (Default)
70 (Default)
0
1
30
55
1
0
55
90
1
45
75

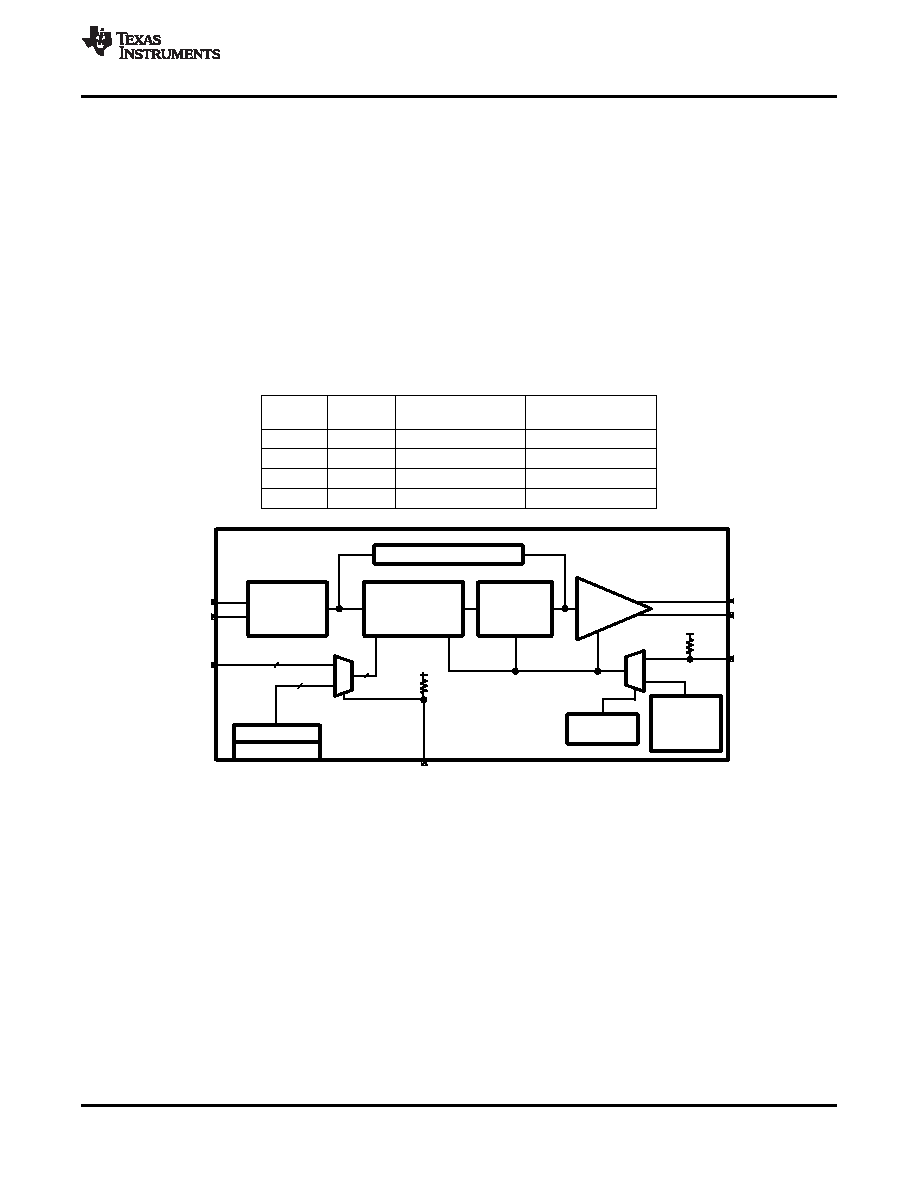

Figure 3. DS16EV5110A Data Channel
Copyright 2008–2013, Texas Instruments Incorporated
11
Product Folder Links: DS16EV5110A
