DAC1005D750
All information provided in this document is subject to legal disclaimers.
NXP B.V. 2011. All rights reserved.
Product data sheet
Rev. 3 — 7 June 2011
36 of 42
NXP Semiconductors
DAC1005D750
Dual 10-bit DAC, up to 750 Msps; 4x and 8x interpolating
10.15 Power and grounding
In order to obtain optimum performance, it is recommended that the 1.8 V analog power
supplies on pins 5, 11, 71, 77 and 99 should not be connected with the ones on pins 6, 70,
79, 81, 83, 93, 95 and 97 on the top layer.
To optimize the decoupling, the power supplies should be decoupled with the following
ground pins:
V
DDD(1V8)
: pin 26 with 27; pin 32 with 33; pin 36 with 37; pin 40 with 39; pin 44 with 43
and pin 50 with 49.
V
DD(IO)(3V3)
: pin 16 with 17 and pin 60 with 59.
V
DDA(1V8)
: pin 5 with 4; pin 6 with 7; pin 11 with 10; pin 71 with 72; pin 77 with 78; pins
79, 81, 83 with 80, 82, 84; pins 93, 95, 97 with 92, 94, 96 and pin 99 with 98.
V
DDA(3V3)
: pin 1 with 100 and pin 75 with 76.

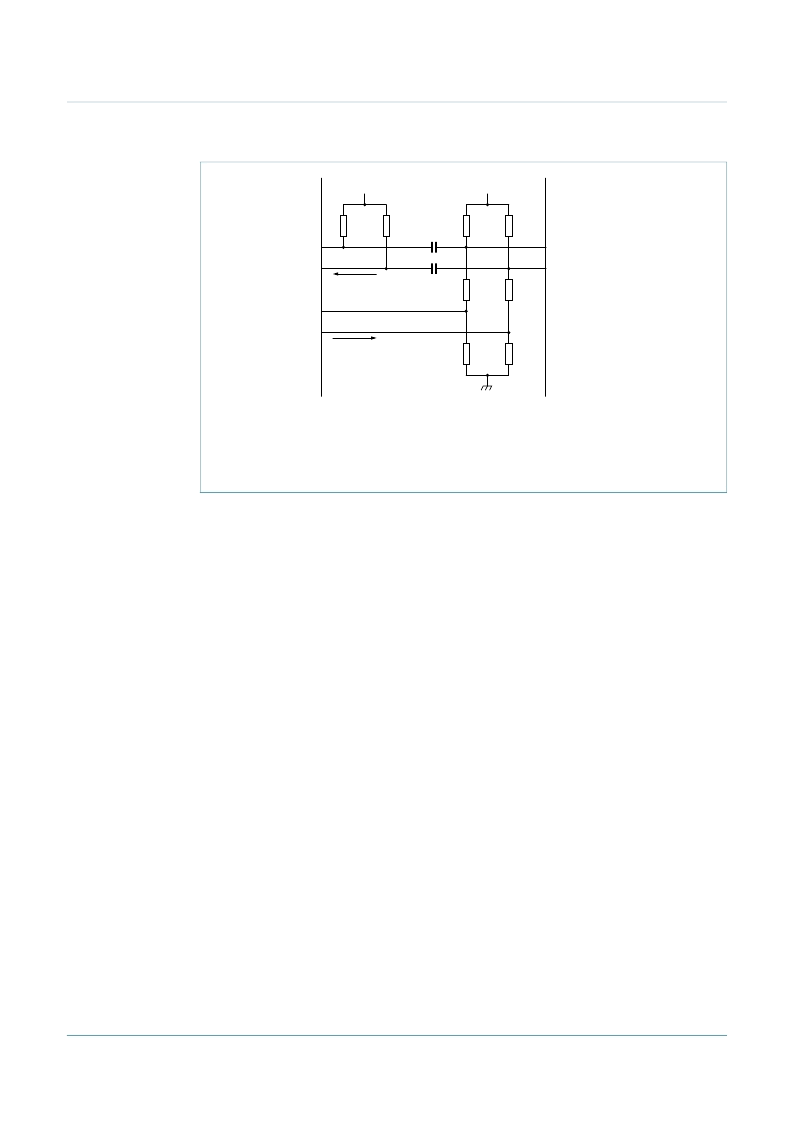

Fig 19. An example of an AC interface to a 0.5 V
I(cm)
AQM using auxiliary DACs
001aaj589
66.5
Ω
66.5
Ω
10 nF
V
DDA(3V3)
IOUTnP
IOUTnN
0 mA to 20 mA
BBP
BBN
AQM (V
i(cm)
= 0.5 V)
2 k
Ω
2 k
Ω
5 V
174
Ω
174
Ω
34
Ω
34
Ω
AUXnP
AUXnN
1.1 mA (typ.)
10 nF
(1)
IOUTnP/IOUTnN; V
o(cm)
= 2.65 V; V
o(dif)(p-p)
= 1.96 V
(2)
BBP/BBN; V
i(cm)
= 0.5 V; V
i(dif)(p-p)
= 1.96 V; offset correction up to 70 mV
(1)
(2)
