xr
REV. 1.0.2
XRT91L32
STS-12/STM-4 OR STS-3/STM-1 SONET/SDH TRANSCEIVER
27
4.3
Analog Local Loopback (ALOOP) controls a more comprehensive version of digital local loopback in which the
point where the transmit data is looped back is moved all the way back to the high-speed receive I/O. The
transmit data from the transmit parallel interface TXDI[7:0] is serialized and presented to the high-speed
transmit output TXOP/N using the high-speed 622.08/155.52 MHz transmit clock generated from the clock
multiplier unit. In addition, the high-speed transmit data TXOP/N is looped back to the receive clock and data
recovery unit, replacing the RXIP/N. The signal is then processed by the CDR, and is sent through the serial to
parallel converter and presented at the low-speed receive parallel interface RXDO[7:0]. ALOOP is invoked by

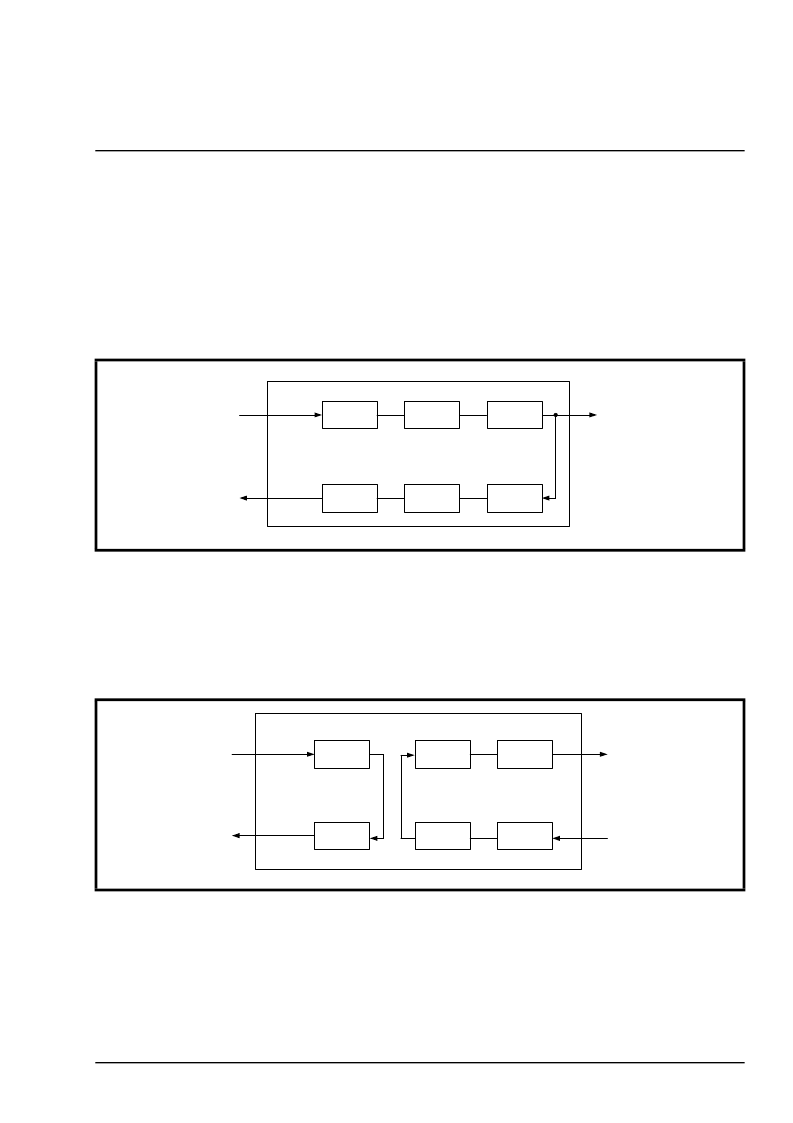

asserting the ALOOP pin "High." A simplified block diagram of parallel remote loopback is shown in Figure 18.
Receive data mute upon "LOS
Analog Local Loopback
4.4
The serial remote loopback and the digital local loopback can be combined to form a split loopback. The
output of the parallel to serial converter is looped back and presented to the high-speed input of the receiver
serial to parallel converter. The high-speed serial receive data from RXIP/N is presented at the high speed
transmit output TXOP/N, and the high-speed recovered clock is selected to re-time the high speed transmit
data output. A simplified block diagram of parallel remote loopback is shown in Figure 19.
F
IGURE
19. S
PLIT
L
OOPBACK
Split Loopback
F
IGURE
18. A
NALOG
L
OCAL
L
OOPBACK
PISO
Re-Timer
SIPO
CDR
LVPECL
Input Drivers
Analog Local Loopback
Tx Parallel Input
Rx Parallel Output
Tx Serial Output
LVPECL
Output Drivers
PISO
Re-Timer
SIPO
CDR
LVPECL
Input Drivers
Split Loopback
Tx Parallel Input
Rx Parallel Output
Tx Serial Output
Rx Serial Input
LVPECL
Output Drivers
