SLUS623 SEPTEMBER 2004
PRIMARY-SIDE PUSH-PULL OSCILLATOR
WITH DEAD-TIME CONTROL
1
www.ti.com
FEATURES
Push-Pull Oscillator With Programmable
Deadtime
High-Current Totem-Pole Dual Output Stage
Drives Push-Pull Configuration with 1-A Sink
and 0.5-A Source Capability
Can be Used in Push-Pull, Half-Bridge, or
Full-Bridge Topologies
Oscillator Synchronization Output
Low Start-Up Current of 130
μ
A and 1.4-mA
Typical Run Current
Over-Current Shutdown
Digitally Controlled Over-Current/Retry
Feature
Undervoltage Lockout With Hysteresis
APPLICATIONS
High Efficiency Cascaded Converters
Inverters
Electronic Ballasts
Uninterruptable Power Supplies (UPS)
AC or DC Links
DESCRIPTION
The UCC28089 is a versatile BiCMOS controller for
dc-to-dc or off-line fixed-frequency switching power
supplies. The UCC28089 has dual alternating output
stages in dual-alternating push-pull configuration. Both
outputs switch at half the oscillator frequency using a
toggle flip-flop and duty cycle is limited to less than 50%.

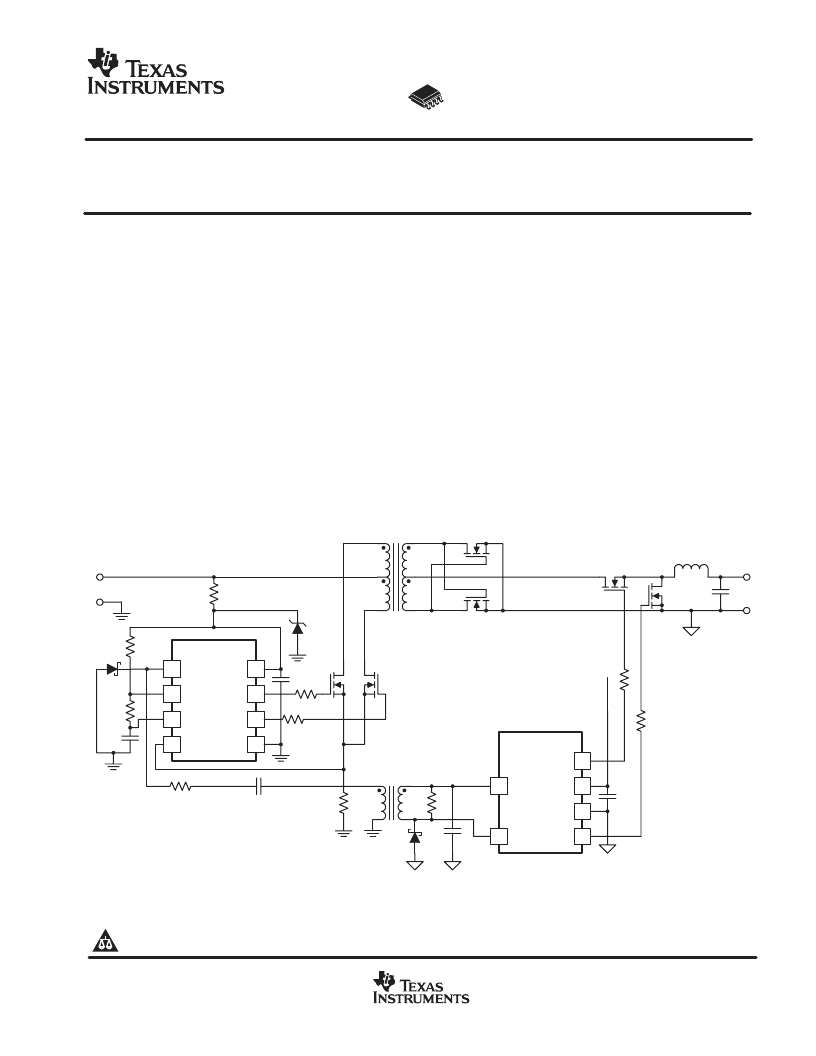

TYPICAL APPLICATION
2
1
4
3
7
8
5
6
UCC28089
SYNC
DIS
CT
CS
VDD
OUTA
OUTB
GND
+
2
4
18
UCC2540
REF
SYNCIN
G1
15
16
14
VDD
PGND
G2
BIAS
UDG-04112
RA
RB
CT
VIN = 48 V
VO = 1.2 V
+
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
!
"
#$
%
$
%
