Noise Floor With No
Additional Precision
Maximum Signal Amplitude
Ideal Input
Possible Outputs
Desired Output
Filter
Operation
Signal
Bits
Input
Overflow
Reduced
SNR
Signal
Output
Noise Floor as a Result
of Additional Precision
Signal
Bits
Output
Values Retained by
Overflow Bits
M0010-01
2.4
Input Crossbar Mixer
Gain Coefficient
48
SDIN1-L
28
48
Gain Coefficient
48
28
48
SUM
w
Gain Coefficient
48
28
48
M0011-01
SDIN1-R
SDIN4-R
2.5
Biquad Filters
TAS5518C
8-Channel Digital Audio PWM Processor
www.ti.com
SLES238A – SEPTEMBER 2008 – REVISED JULY 2009

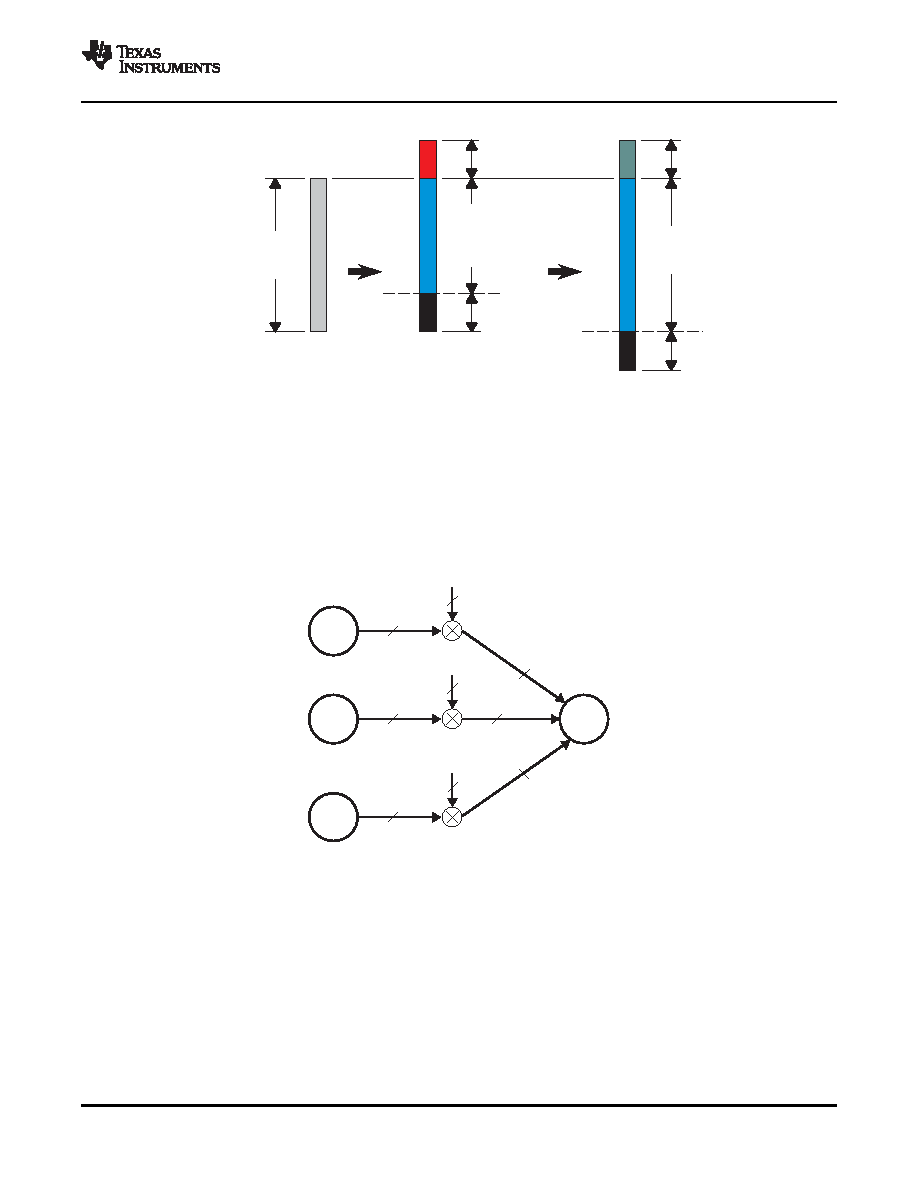

Figure 2-10. TAS5518C Digital Audio Processing
The TAS5518C has a full 8
×8 input crossbar mixer. This mixer permits each signal-processing channel
input to be any mix of any of the eight input channels, as shown in Figure 2-11. The control parameters for
the input crossbar mixer are programmable via the I2C interface. See the Input Mixer Registers, Channels
1–8 (0x41–0x48), Section 7.14, for more information.
Figure 2-11. Input Crossbar Mixer
For 32-kHz to 96-kHz data, the TAS5518C provides 56 biquads across the eight channels (seven per
channel).
For 176.4-kHz and 192-kHz data, the TAS5518C has 21 biquads across the three channels (seven per
channel). All of the biquad filters are second-order direct form I structure.
Description
27
