Timing Diagrams
(Continued)
20014713

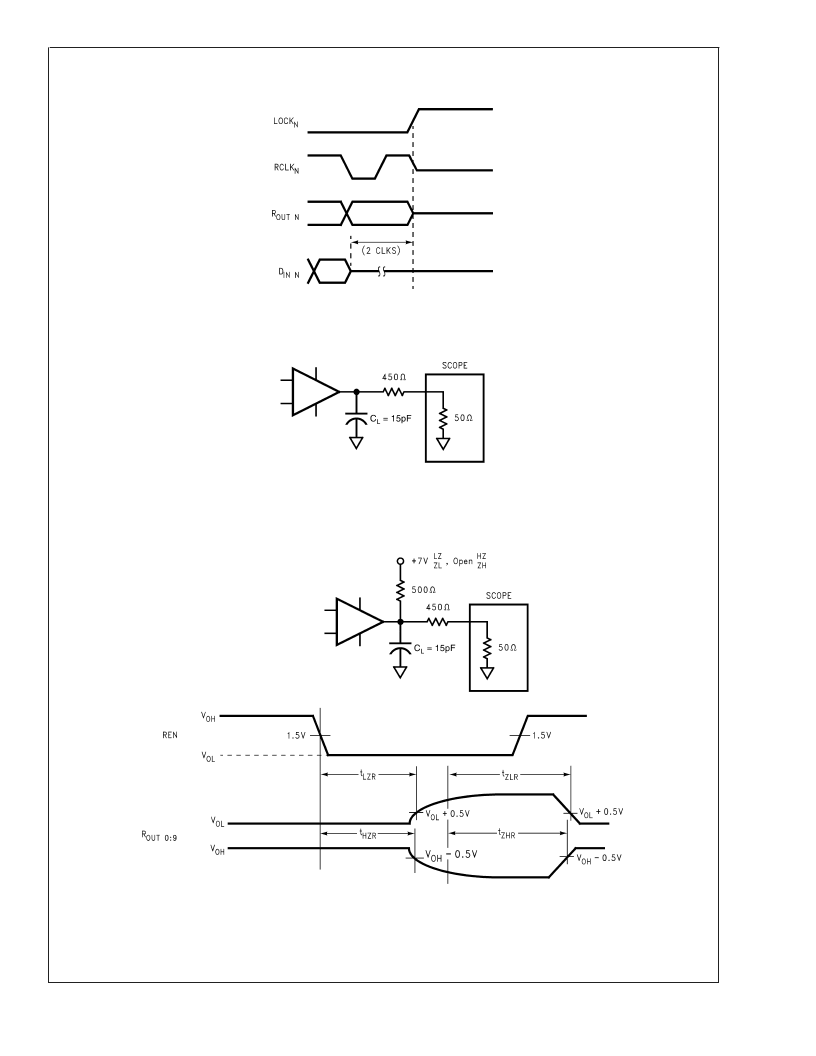

FIGURE 5. Unlock
20014729
Note: C
L
includes Jig and stray capacitance. For the TDO output, C
L
= 35pF.
FIGURE 6. Output load for Timing and Switching Characteristics
20014718
Note: C
L
includes Jig and stray capacitance. For the TDO output, C
L
= 35pF.
FIGURE 7. Deserializer TRI-STATE Test Circuit and Timing
S
www.national.com
7
