4
RF Device Data
Freescale Semiconductor
MRF8S19260HR6 MRF8S19260HSR6

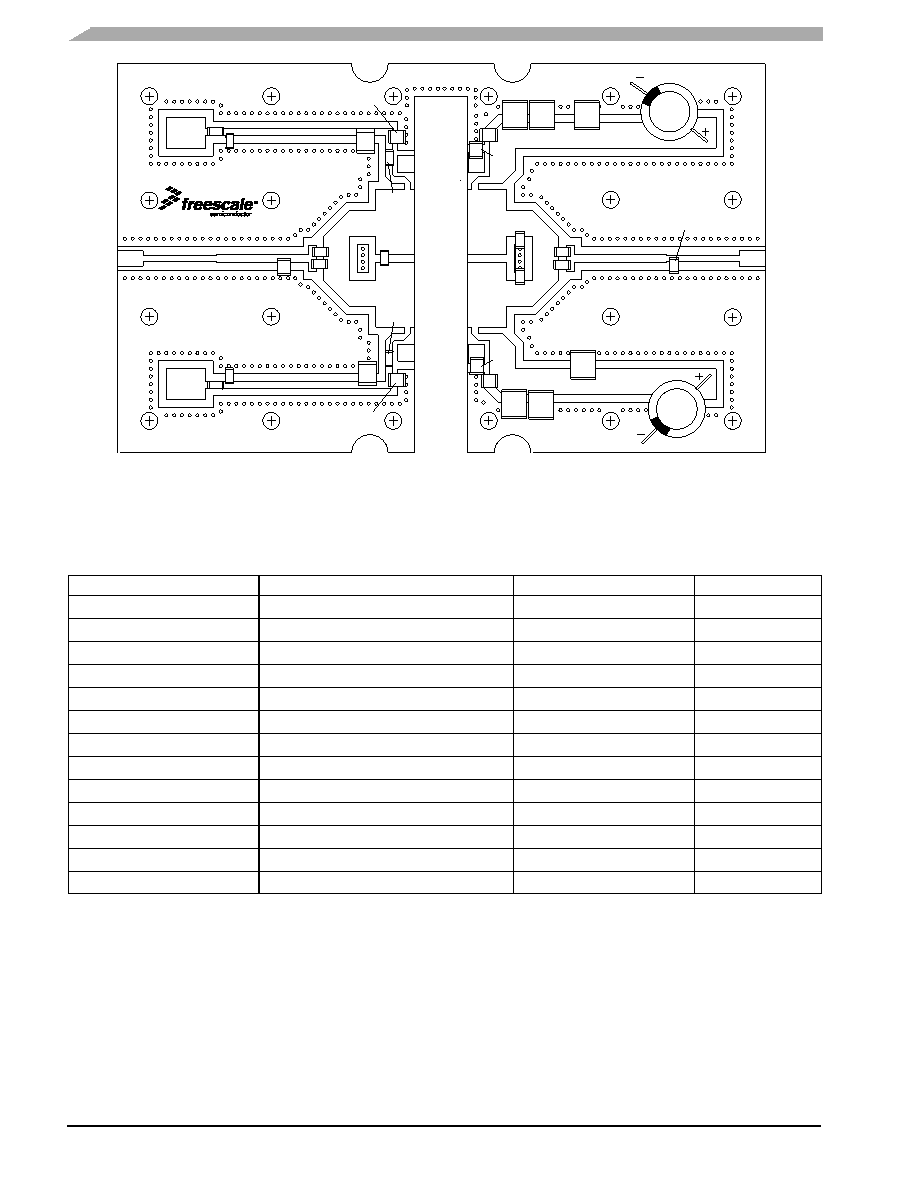

Figure 2. MRF8S19260HR6(HSR6) Test Circuit Component Layout
*C2, C3, C13, C14, C15, C16, and C24 are mounted vertically.
MRF8S19260
Rev. 0
CUT
OUT
A
REA
R1
C19
R2
C4
C5
R3
R4
C2*
C3*
C1
R6
R5
C6
C7
R7
C20
C18
C17
C21
C23
C24*
C15*
C16*
C13*
C14*
C22
C12
C10 C11
C8
C9
Table 5. MRF8S19260HR6(HSR6) Test Circuit Component Designations and Values
Part
Description
Part Number
Manufacturer
C1
1.8 pF Chip Capacitor
ATC100B1R8BT500XT
ATC
C2, C3, C5, C7, C8, C18
8.2 pF Chip Capacitors
ATC100B8R2CT500XT
ATC
C4, C6
6.8 μF, 50 V Chip Capacitors
C4532X7R1H685KT
TDK
C9, C17
2.2 μF, 50 V Chip Capacitors
C3225X7R1H225KT
TDK
C10, C11, C12, C19, C20, C21
10 μF Chip Capacitors
GRM55DR61H106KA88L
Murata
C13, C14
0.3 pF Chip Capacitors
ATC100B0R3BT500XT
ATC
C15, C16
9.1 pF Chip Capacitors
ATC100B9R1CT500XT
ATC
C22, C23
330 μF, 63 V Electrolytic Capacitors
MCRH63V337M13X21--RH
Multicomp
C24
1.2 pF Chip Capacitor
ATC800B1R2BT500XT
ATC
R1, R2, R5, R6
10 K, 1/4 W Chip Resistors
CRCW120610K0JNEA
Vishay
R3, R7
4.75 , 1/4 W Chip Resistors
CRCW12064R75FNEA
Vishay
R4
2.37 , 1/4 W Chip Resistor
CRCW12062R37FNEA
Vishay
PCB
0.020″, εr =3.5
RO4350B
Rogers
