MPC7410 RISC Microprocessor Hardware Specifications
39
PRELIMINARY—SUBJECT TO CHANGE WITHOUT NOTICE
System Design Information
Since the silicon thermal resistance is quite small, for a first-order analysis, the temperature drop in the
silicon may be neglected. Thus, the heat sink attach material and the heat sink conduction/convective
thermal resistances are the dominant terms.
1.8.9.2 Adhesives and Thermal Interface Materials
A thermal interface material is recommended at the package lid-to-heat sink interface to minimize the
thermal contact resistance. For those applications where the heat sink is attached by spring clip mechanism,
Figure 26 shows the thermal performance of three thin-sheet thermal-interface materials (silicone,
graphite/oil, floroether oil), a bare joint, and a joint with thermal grease as a function of contact pressure.
As shown, the performance of these thermal interface materials improves with increasing contact pressure.
The use of thermal grease significantly reduces the interface thermal resistance. That is, the bare joint results
in a thermal resistance approximately seven times greater than the thermal grease joint.
Heat sinks are attached to the package by means of a spring clip to holes in the printed-circuit board (see
Figure 25). This spring force should not exceed 10 pounds of force. Therefore, the synthetic grease offers
the best thermal performance, considering the low interface pressure. Of course, the selection of any thermal
interface material depends on many factors—thermal performance requirements, manufacturability, service
temperature, dielectric properties, cost, etc.

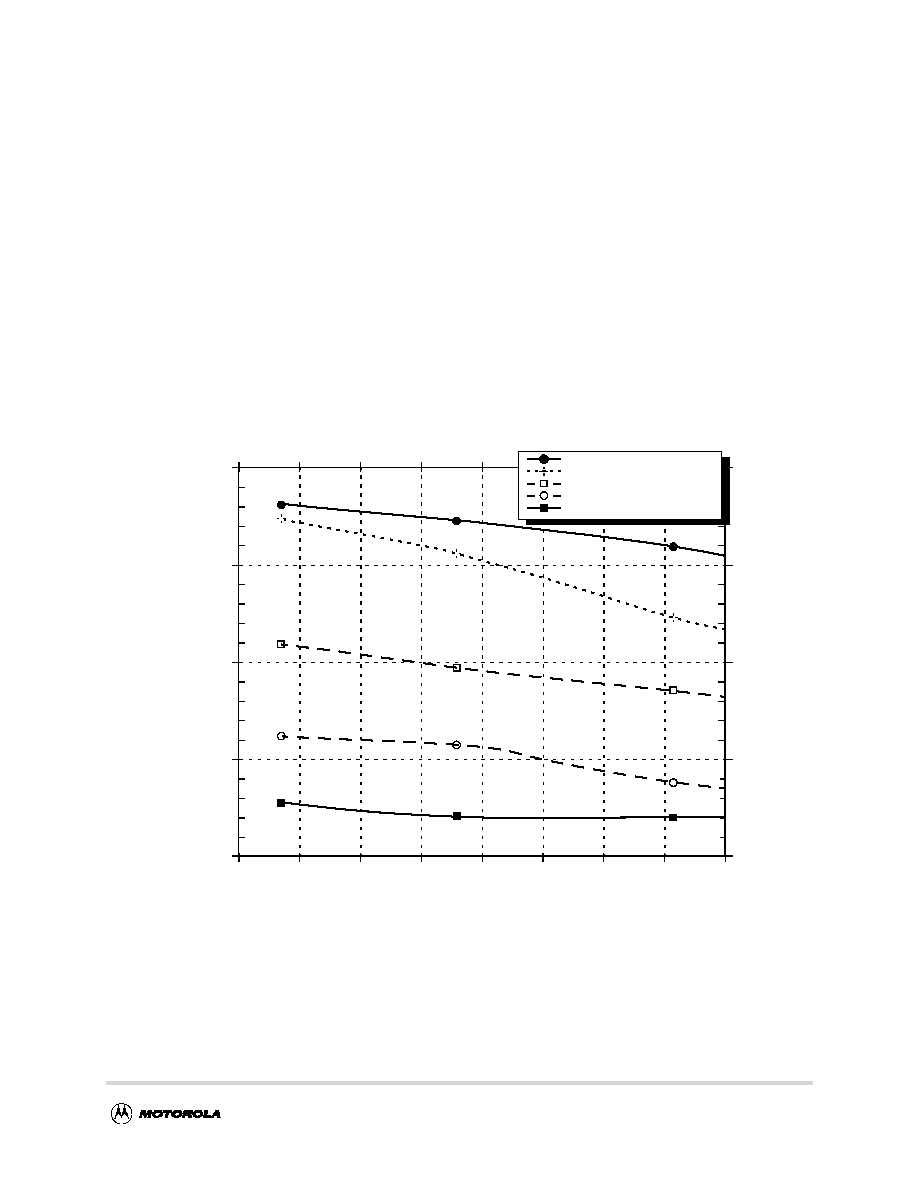

Figure 26. Thermal Performance of Select Thermal Interface Material
The board designer can choose between several types of thermal interface. Heat sink adhesive materials
should be selected based upon high conductivity, yet adequate mechanical strength to meet equipment
shock/vibration requirements. There are several commercially-available thermal interfaces and adhesive
materials provided by the following vendors:
0
0.5
1
1.5
2
0
1020304050
607080
Silicone Sheet (0.006”)
Bare Joint
Floroether Oil Sheet (0.007”)
Graphite/Oil Sheet (0.005”)
Synthetic Grease
Contact Pressure (psi)
Specifi
c
Th
erm
al
Resi
st
an
ce
(Kin
2
/W)
