Maxim Integrated Products 22
MAX19005
Quad, Ultra-Low-Power,
200Mbps ATE Drivers/Comparators
Temperature Monitor
Each device supplies a single temperature output signal
(TEMP) that asserts a nominal +3.43V output voltage
at a +70NC (343K) die temperature. The output voltage
increases proportionately with temperature at a rate of
10mV/NC. The temperature sensor output impedance is
17kI (typ).
Serial Interface and Device Control
A CMOS-compatible serial interface controls the IC
modes (Figure 5). Control data flow into a 12-bit shift
register (LSB first) and are latched when CS is taken
high. Data from the shift register are then loaded to
the per-channel control latches, as determined by bits
D[8:11] (Figure 5 and Table 5). The latches contain the
five mode bits for each channel of the device. The mode
bits, in conjunction with external inputs DATA_ and
RCV_, manage the features of each channel. Transfer
data asynchronously from the input registers to the chan-
nel registers by forcing LD low. With LD always low, data
transfer on the rising edge of CS.
Heat Removal
With adequate airflow, no external heat sinking is needed
under most operating conditions. If excess heat must be
dissipated through the exposed pad, solder it to circuit-
board copper. The exposed pad must be either left
unconnected, isolated, or connected to GND.
Power Minimization
To minimize power consumption, activate only the need-
ed channels. Each channel placed in low-leakage mode
saves approximately 240mW.

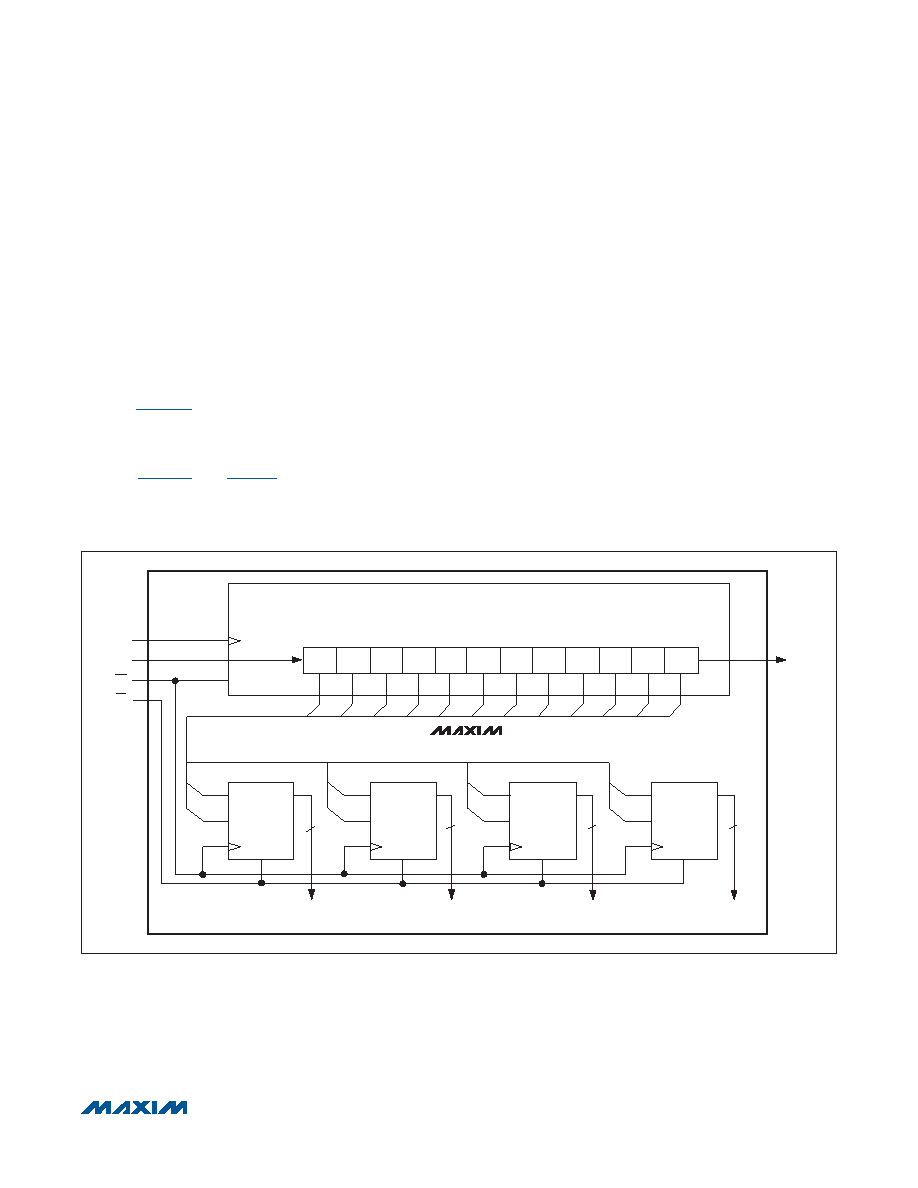

Figure 5. Serial Interface
SCLK
DOUT
DIN
CS
LD
ENABLE
QUAD F/F
D
Q
ENABLE
D[0:7]
D8
UNUSED
LLEAK
PIN
EN_
PMU
EN_
LOAD
EN
LOW
LOAD
EN
HIIGH
UNUSED
CH1
CH2
CH3
CH4
MODE BITS
CHANNEL 4
MODE BITS
CHANNEL 3
MODE BITS
CHANNEL 2
MODE BITS
CHANNEL 1
LOAD
QUAD F/F
D
Q
ENABLE
D[0:7]
D9
LOAD
QUAD F/F
D
Q
ENABLE
D[0:7]
D10
LOAD
QUAD F/F
D
Q
ENABLE
D[0:7]
D11
5
LOAD
11
10
98
76
54
32
10
MAX19005
