M41T256Y
Operating modes
WRITE mode
In this mode the master transmitter transmits to the M41T256Y slave receiver. Bus protocol
is shown in Figure 10 on page 15. Following the START condition and slave address, a
logic '0' (R/W=0) is placed on the bus and indicates to the addressed device that byte
addresses A(0) and A(1) will follow and is to be written to the on-chip address pointer (MSB
of address byte A(0) is a “Don’t care”).
The data byte to be written to the memory is strobed in next and the internal address pointer
is incremented to the next memory location within the RAM on the reception of an
acknowledge bit. The M41T256Y slave receiver will send an acknowledge bit to the master
transmitter after it has received the slave address (see Figure 7 on page 13) and again after
it has received each address byte.

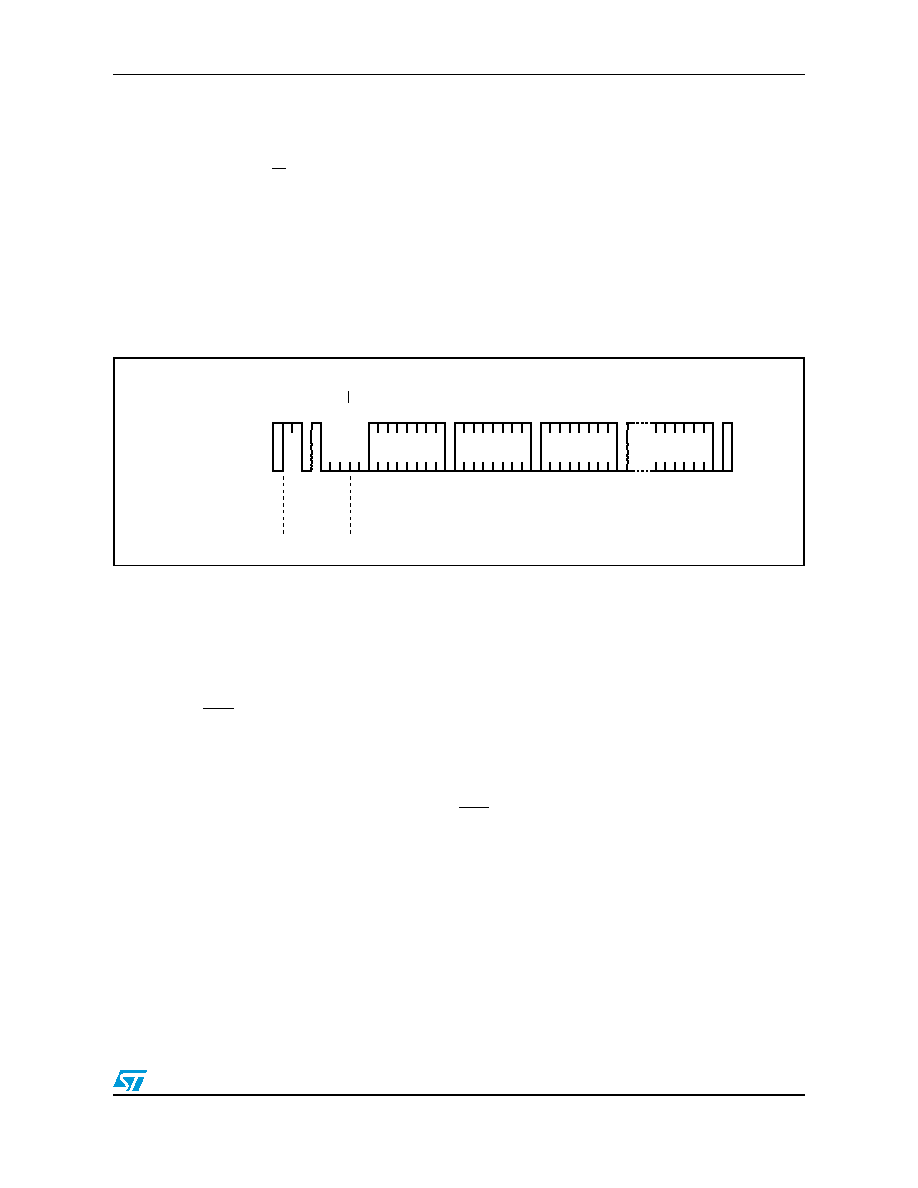

Figure 10.
WRITE mode sequence
Data retention mode
With valid VCC applied, the M41T256Y can be accessed as described above with READ or
WRITE Cycles. Should the supply voltage decay, the M41T256Y will automatically deselect,
write protecting itself when VCC falls between VPFD (max) and VPFD (min). This is
accomplished by internally inhibiting access to the clock registers. At this time, the Reset pin
(RST) is driven active and will remain active until VCC returns to nominal levels. When VCC
falls below the Battery Back-up Switchover Voltage (VSO), power input is switched from the
VCC pin to the external battery and the clock registers and SRAM are maintained from the
attached battery supply.
All outputs become high impedance. On power up, when VCC returns to a nominal value,
write protection continues for tREC. The RST signal also remains active during this time (see
For a further more detailed review of lifetime calculations, please see Application Note
AN1012.
Sleep mode
In order to minimize the battery current draw while in storage, the M41T256Y provides the
user with a battery “Sleep Mode,” which disconnects the RAM memory array from the
external Lithium battery normally used to provide non-volatile operation in the absence of
AI04761
BUS ACTIVITY:
ACK
S
ACK
STOP
START
P
SDA LINE
BUS ACTIVITY:
MASTER
R/W
DATA n
DATA n+X
BYTE
ADDRESS (0)
SLAVE
ADDRESS
BYTE
ADDRESS (1)
