22
32176 Group
Mitsubishi Microcomputers
SINGLE-CHIP 32-BIT CMOS MICROCOMPUTER
Under Development
Jan. 30, 2003
Rev.1.4
Built-in 37-channel multijunction timers (MJT)
The microcomputer contains a total of 37 channels of
multijunction timers consisting of 11 channels of 16-bit out-
put related timers, 10 channels of 16-bit input/output related
timers, 8 channels of 16-bit input related timers, 8 channels
of 32-bit input related timers. Each timer has multiple opera-
tion modes to choose from, depending on the purposes of
use.
Also, the multijunction timers internally have a clock bus,
input event bus, and an output event bus, so that multiple
timers can be used in combination allowing for a flexible
timer configuration. The output related timers have a cor-
recting function that allows the timer’s count value to be
incremented or decremented as necessary while count is in
progress, making real-time output control possible.

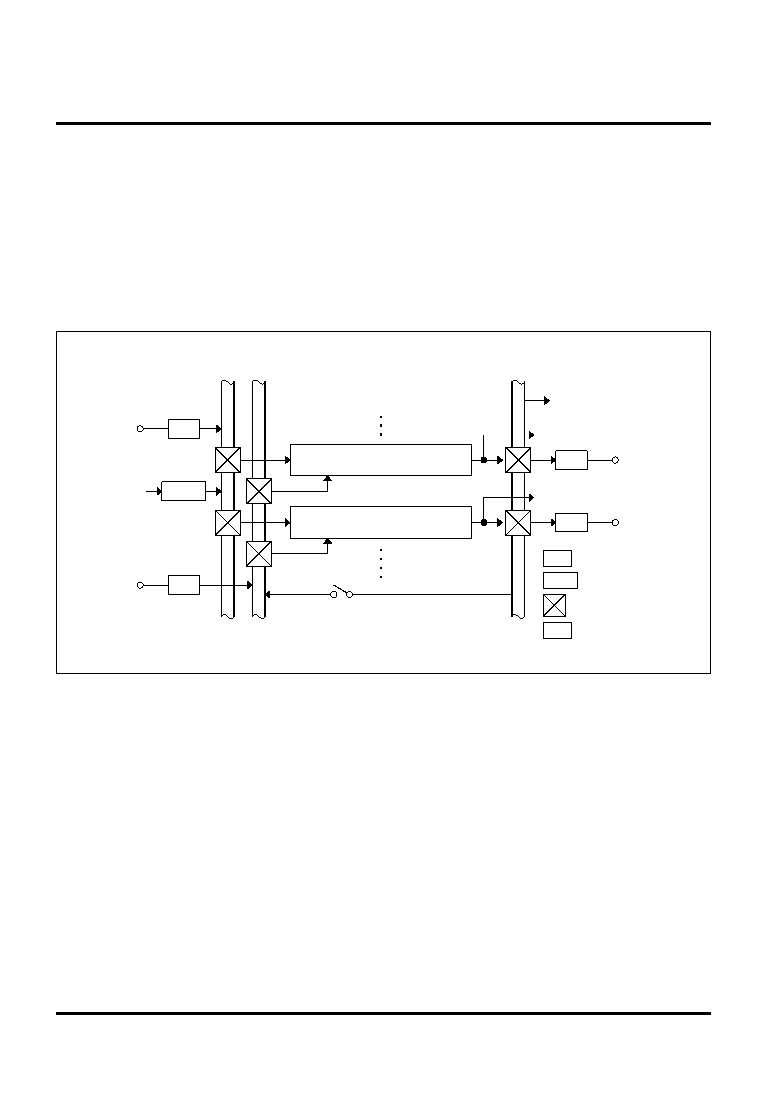

Figure 12. Conceptual Diagram of the Multijunction Timer (MJT)
Timer
CLK
EN
E/L
PRS
Clock
bus
Input
event
bus
E/L
Timer
CLK
EN
Interrupt output
Output
event
bus
F/F
TO pin
TIN pin
TCLK pin
Note: This is a conceptual diagram and does not show the actual timer configuration.
E/L
PRS
: Edge/Level selector
: Prescaler
: Junction box (Selector)
: Output flip-flop
F/F
To DMAC,
A-D converter
F/F
TO pin
Output related timer: 11ch
Input/output related timer: 10ch
16-bit input related timer: 8ch
32-bit input related timer: 8ch
1/2 internal
peripheral clock
