型號： CS5530-ISZ
廠商： Cirrus Logic Inc
文件頁數： 20/36頁
文件大?。?/td> 0K
描述： IC ADC 24BIT 1CH W/LNA 20SSOP
標準包裝： 66
位數： 24
采樣率（每秒）： 3.84k
數據接口： 串行
轉換器數目： 1
功率耗散（最大）： 45mW
電壓電源： 模擬和數字，雙 ±
工作溫度： -40°C ~ 85°C
安裝類型： 表面貼裝
封裝/外殼： 20-SSOP（0.209"，5.30mm 寬）
供應商設備封裝： 20-SSOP
包裝： 管件
輸入數目和類型： 1 個差分，單極；1 個差分，雙極
產品目錄頁面： 755 (CN2011-ZH PDF)
配用： 598-1158-ND - BOARD EVAL FOR CS5530
其它名稱： 598-1283-5
CS5530
DS742F3
27

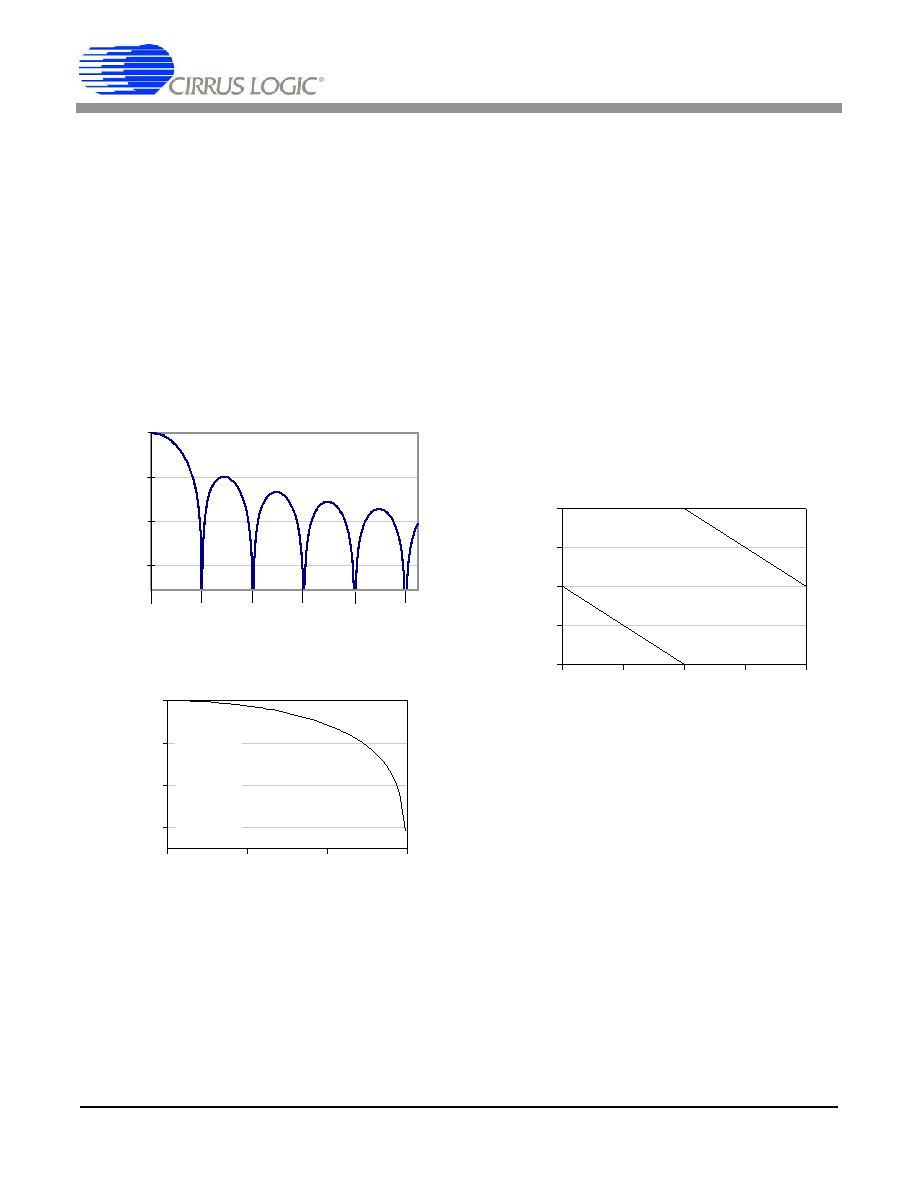

2.8 Digital Filter
The CS5530 has a linear phase digital filter which
is programmed to achieve a range of output word
rates (OWRs) as stated in the Configuration Regis-
ter Description section. The ADC uses a Sinc5 dig-
ital filter to output word rates at 3200 Sps and 3840
Sps (MCLK = 4.9152 MHz). Other output word
rates are achieved by using the Sinc5 filter followed
by a Sinc3 filter with a programmable decimation
rate.Figure 13 shows the magnitude response of the
60 Sps filter, while Figures 14 and 15 show the
magnitude and phase response of the filter at 120
Sps. The Sinc3 is active for all output word rates
except for the 3200 Sps and 3840 Sps (MCLK =
4.9152 MHz) rate. The Z-transforms of the two fil-
ters are shown in Figure 16. For the Sinc3 filter,
“D” is the programmable decimation ratio, which is
equal to 3840/OWR when FRS = 0 and 3200/OWR
when FRS = 1.
The converter’s digital filters scale with MCLK.
For example, with an output word rate of 120 Sps,
the filter’s corner frequency is at 31 Hz. If MCLK
is increased to 5.0 MHz, the OWR increases by
1.0175 percent and the filter’s corner frequency
moves to 31.54 Hz. Note that the converter is not
specified to run at MCLK clock frequencies greater
than 5 MHz.
Figure 13. Digital Filter Response (Word Rate = 60 Sps)
-120
-80
-40
0
Gain
(dB)
0
60
120
180
240
300
Frequency (Hz)
FRS = 0
-120
-80
-40
0
040
80
120
Frequency (Hz)
G
a
in
(
d
B
)
Flatness
Frequency
dB
2-0.01
4-0.05
6-0.11
8-0.19
10
-0.30
12
-0.43
14
-0.59
16
-0.77
19
-1.09
32
-3.13
Figure 14. 120 Sps Filter Magnitude Plot to 120 Hz
-180
-90
0
90
180
0
30
60
90
120
Frequency (Hz)
P
h
ase
(
D
eg
rees)
Figure 15. 120 Sps Filter Phase Plot to 120 Hz
Note:
See the text regarding the Sinc3 filter’s
decimation ratio “D”.
Sinc5
1
z 80
–
()5
1
z 16
–
()5
--------------------------
1
z 16
–
()3
1
z 4
–
()3
--------------------------
1
z 4
–
()2
1
z 2
–
()2
-----------------------
1
z 2
–
()3
1
z 1
–
()3
-----------------------
×
=
Sinc3
1
z D
–
()3
1
z 1
–
()3
-------------------------
=
Figure 16. Z-Transforms of Digital Filters
