Exar
Corporation 48720 Kato Road, Fremont CA, 94538
(510) 668-7000
FAX (510) 668-7017
www.exar.com
á
PRELIMINARY
XRT71D03
3 CHANNEL E3/DS3/STS-1 JITTER ATTENUATOR, STS-1 TO DS3 DESYNCHRONIZER
DECEMBER 2000
REV. P1.0.2
GENERAL DESCRIPTION
The XRT71D03 is a three channel, single chip Jitter
Attenuator, that meets the Jitter transfer characteris-
tics requirements specified in the ETSI TBR-24,
Bellcore GR-499 and GR-253 standards.
In addition, the XRT71D03 also meets the Jitter and
Wander specifications described in the ANSI
T1.105.03b 1997, Bellcore GR-253 and GR-499 stan-
dards for Desynchronizing and Pointer adjustments in
the DS3 to STS-SPE mapping applications.
FEATURES
Meets the E3/DS3/STS-1 jitter requirements
No external components required
Compliant with jitter transfer template outlined in
ITU G.751, G.752, G.755, GR-235-CORE, GR-
499-CORE,1995 standards
Meets output jitter requirement as specified by
ETSI TBR24
Meets the Jitter and Wander specifications
described in T1.105.03b,GR-253 and GR-499 stan-
dards.
Selectable buffer size of 16 and 32 bits
Jitter attenuator can be disabled
Available in a 64 pin LQFP package.
Single 3.3V or 5.0V supply.
Operates over - 40
0
C to 85
0
C temperature range.
APPLICATIONS
E3/DS3 Access Equipment.
STS-SPE to DS3 Mapper
DSLAMs
F

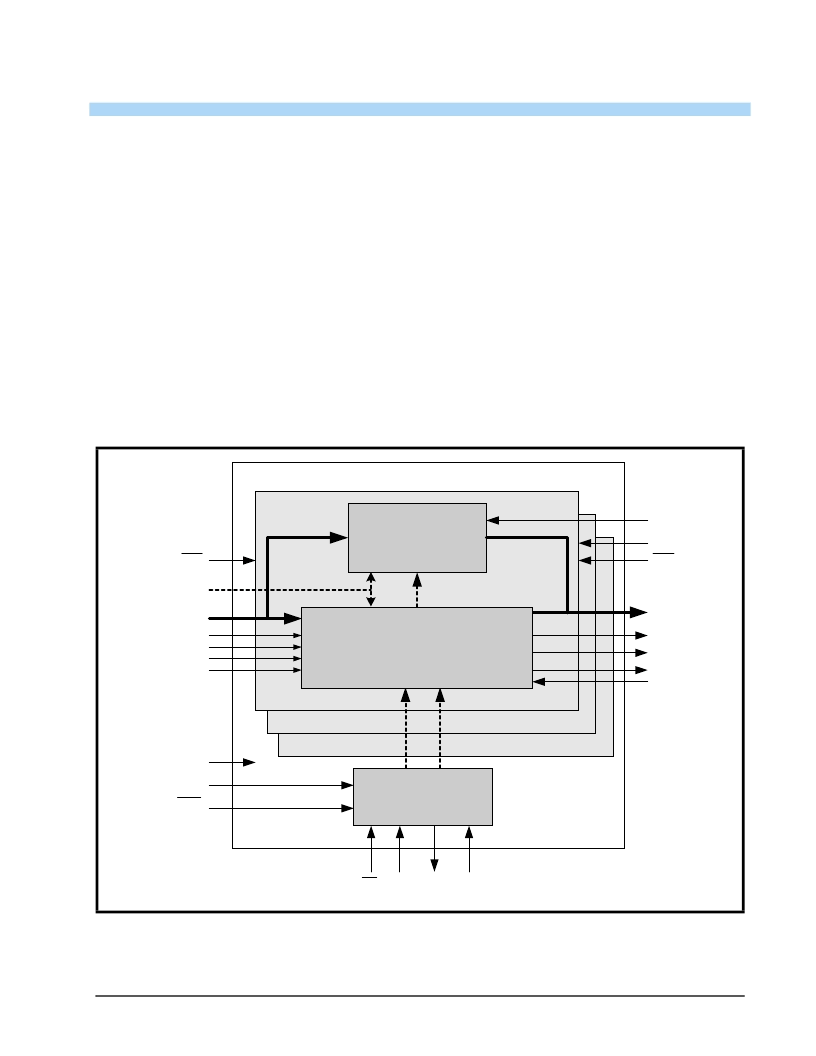

IGURE
1. B
LOCK
D
IAGRAM
(
ONE
C
HANNEL
)
Timing Control Block
Phase locked Loop
RRCLKn
RRPOSn
RRNEGn
FLn
RRCLKES
DJAn
RClkn
RClkES
RPOSn
RNEGn
FSS
ICT
MCLKn
STS1_ch-n
DS3/E3_ch-n
Microprocessor Serial
Interface
CS SDI SDO SClk
HOST
RST
Channel 0
Channel 1
Channel 2
XRT71D03
n = 0, 1, 2
MODE_CTRL
Read Clock
Write Clock
16/32 Bit FIFO
