8.
AC ’97 interface
The UCB1400 implements an AC ’97 Revision 2.1 interface. Refer to the Audio
Codec ’97 Component Specification Revision 2.1from Intel.
8.1 Clocking
The UCB1400 functions only as a primary codec. As such, it derives its clock
internally from an externally attached 24.576 MHz crystal or clock oscillator, and
drives a buffered and divided down (
1
2
) clock to its digital companion controller over
AC-link under the signal name “BIT_CLK”.
The beginning of all audio sample packets, or Audio Frames, transferred over AC-link
is synchronized to the rising edge of the SYNC signal. SYNC is driven by the AC ’97
Controller. The AC ’97 Controller takes BIT_CLK as an input and generates SYNC by
dividing BIT_CLK by 256 and applying some conditioning to tailor its duty cycle. This
yields a 48 kHz SYNC signal whose period defines an audio frame. Data is
transitioned on AC-link on every rising edge of BIT_CLK, and subsequently sampled
on the receiving side of AC-link on each immediately following falling edge of
BIT_CLK.
8.2 Resetting UCB1400
The UCB1400 recognizes the following types of reset:
Cold reset: where all UCB1400 logic (registers included) is initialized to its default
state. Initiated by bringing RESET LOW for at least 1
μ
s.
Warm reset: where the contents of the UCB1400 register set are left unaltered.
Initiated by bringing SYNC HIGH for at least 1
μ
s without BIT_CLK.
Register reset: which only initializes the UCB1400 registers to their default states.
Initiated by a write to register 0x00.
After signaling a reset to UCB1400, the AC ’97 Controller should not attempt to play
or capture audio data until it has sampled a “Codec Ready” indication from UCB1400.

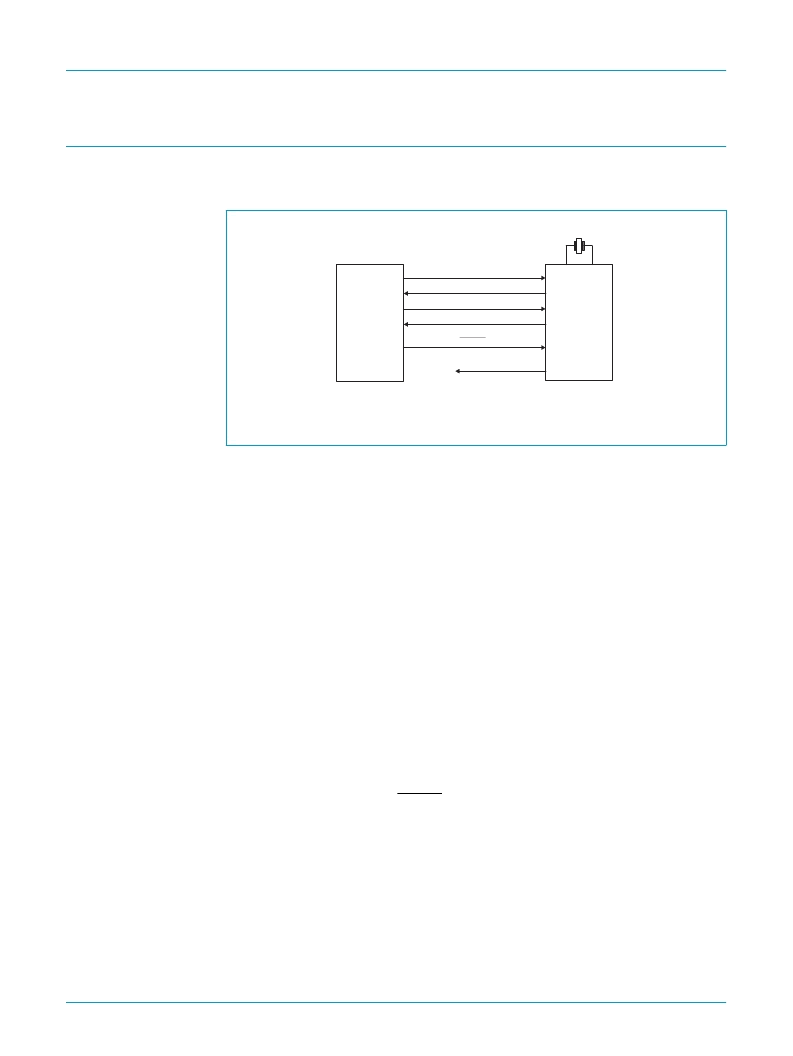

Fig 4.
UCB1400 and AC ’97 controller connection diagram.
SN00237
UCB1400
SYNC
BIT_CLK
SDATA_OUT
SDATA_IN
RESET
IRQOUT
AC97
CONTROLLER
