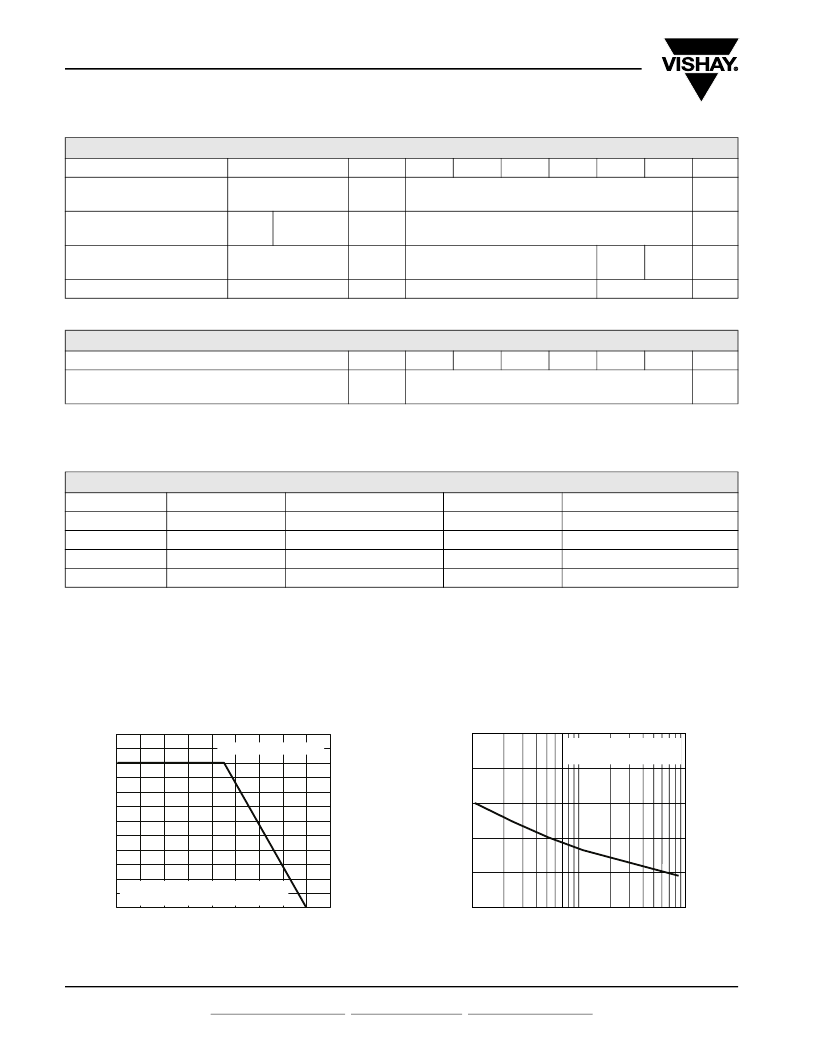

RS1A thru RS1K
Vishay General Semiconductor
www.vishay.com
2
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 88707
Revision: 11-Apr-08
Note:
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2 x 0.2" (5.0 x 5.0 mm) copper pad areas
Note:
(1) Automotive grade AEC Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
SYMBOL
RS1A
RS1B
RS1D
RS1G
RS1J
RS1K
UNIT
Maximum instantaneous
forward voltage
1.0 A
V
F
1.3
V
Maximum DC reverse current at
rated DC blocking voltage
T
A
= 25 °C
T
A
= 125 °C
I
R
5.0
50
μA
Maximum reverse recovery time
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
t
rr
150
250
500
ns
Typical junction capacitance
C
J
10
7.0
pF
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
SYMBOL
RS1A
RS1B
RS1D
RS1G
RS1J
RS1K
UNIT
Typical thermal resistance
(1)
R
θ
JA
R
θ
JL
105
32
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
UNIT WEIGHT (g)
REFERRED PACKAGE CODE
BASE QUANTITY
DELIVERY MODE
RS1J-E3/61T
0.064
61T
1800
7" diameter plastic tape and reel
RS1J-E3/5AT
RS1JHE3/61T
(1)
RS1JHE3/5AT
(1)
0.064
5AT
7500
13" diameter plastic tape and reel
0.064
61T
1800
7" diameter plastic tape and reel
0.064
5AT
7500
13" diameter plastic tape and reel
Figure 1. Forward Current Derating Curve
Resisti
v
e or Ind
u
cti
v
e Load
P.C.B. Mo
u
nted on 0.2 x 0.2" (5.0 x 5.0 mm)
Copper Pad Areas
1.2
1.0
0.4
0
0
20
40
60
8
0
100
120
140
160
1
8
0
Lead Temperat
u
re (°C)
A
v
e
w
a
u
r
0.
8
0.6
0.2
Figure 2. Maximum Non-Repetitive Peak Forward Surge Current
T
= 90 °C
8
.3 ms Single Half Sine-
W
a
v
e
Nu
m
b
er of Cycles at 60 Hz
1
10
100
50
40
30
20
10
0
P
w
a
u
r
u
r
