4
RF Device Data
Freescale Semiconductor
MRF8S18120HR3 MRF8S18120HSR3

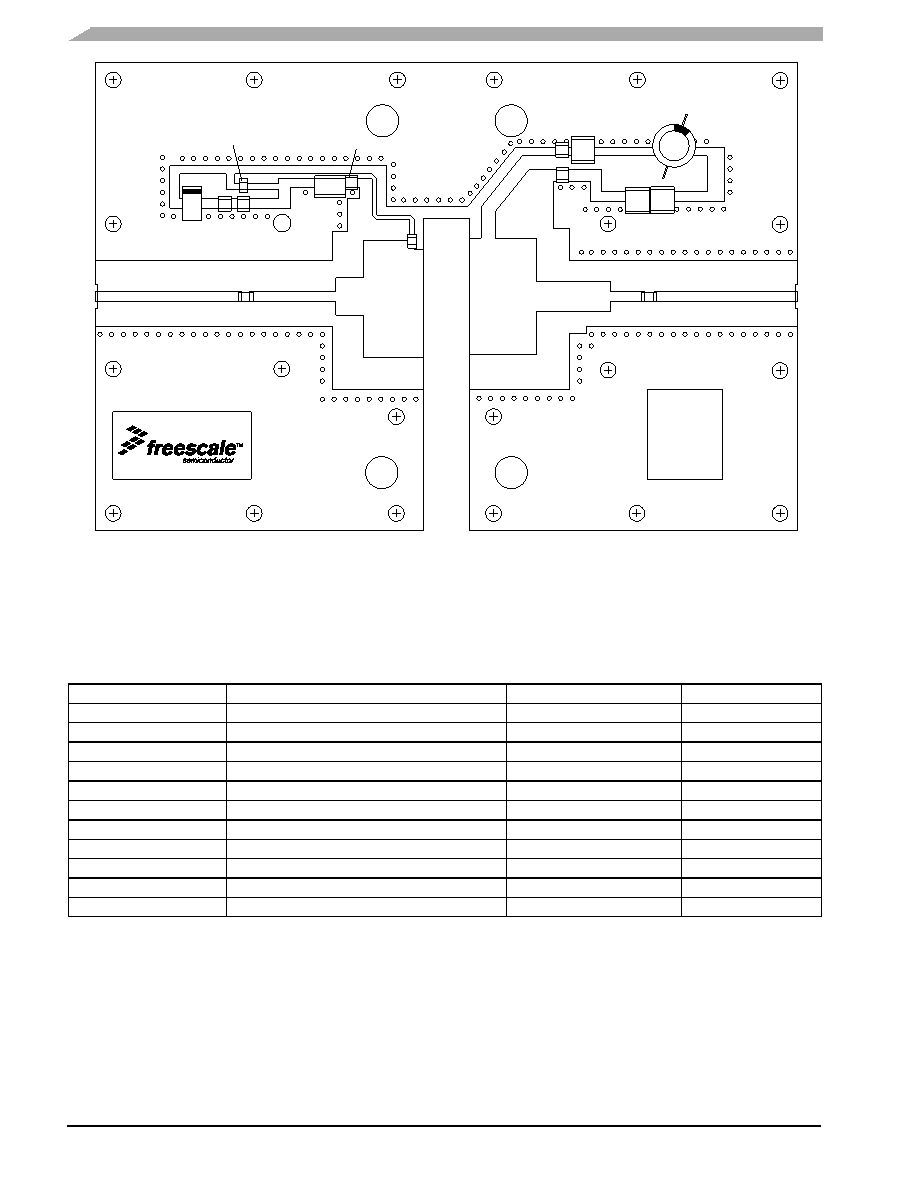

Figure 1. MRF8S18120HR3(HSR3) Test Circuit Component Layout
MRF8S18120
CUT
OUT
A
REA
Rev. 2
R2
C3
C7
C6 C5
C1
C8
C9 C10
C13
C11 C12
C2
R1
C4
Table 5. MRF8S18120HR3(HSR3) Test Circuit Component Designations and Values
Part
Description
Part Number
Manufacturer
C1, C2
12 pF Chip Capacitors
ATC100B120JT500XT
ATC
C3, C8
9.1 pF Chip Capacitors
ATC100B9R1CT500XT
ATC
C4
10 nF Chip Capacitor
C1825C103K1GAC--TU
Kemet
C5
8.2 pF Chip Capacitor
ATC100B8R2CT500XT
ATC
C6, C9
2.2 μF, 100 V Chip Capacitors
C3225X7R2A225KT
TDK
C7
47 μF, 16 V Tantalum Capacitor
T491D476K016AT
Kemet
C10, C11, C12
10 μF, 50 V Chip Capacitors
GRM55DR61H106KA88L
Murata
C13
330 μF, 63 V Electrolytic Capacitor
MCRH63V337M13X21--RH
Multicomp
R1
10 , 1/4 W Chip Resistor
CRCW120610R0JNEA
Vishay
R2
4.75 , 1/4 W Chip Resistor
CRCW12064R75FNEA
Vishay
PCB
0.030″, εr =2.55
250GX--0300--55--22
Arlon
