28.8
SPI Serial Programming Pin Mapping
Even though the SPI Programming interface re-uses the SPI I/O module, there is one important difference: The
MOSI/MISO pins that are mapped to PB2 and PB3 in the SPI I/O module are not used in the Programming inter-
face. Instead, PE0 and PE1 are used for data in SPI Programming mode as shown in
Table 28-13.

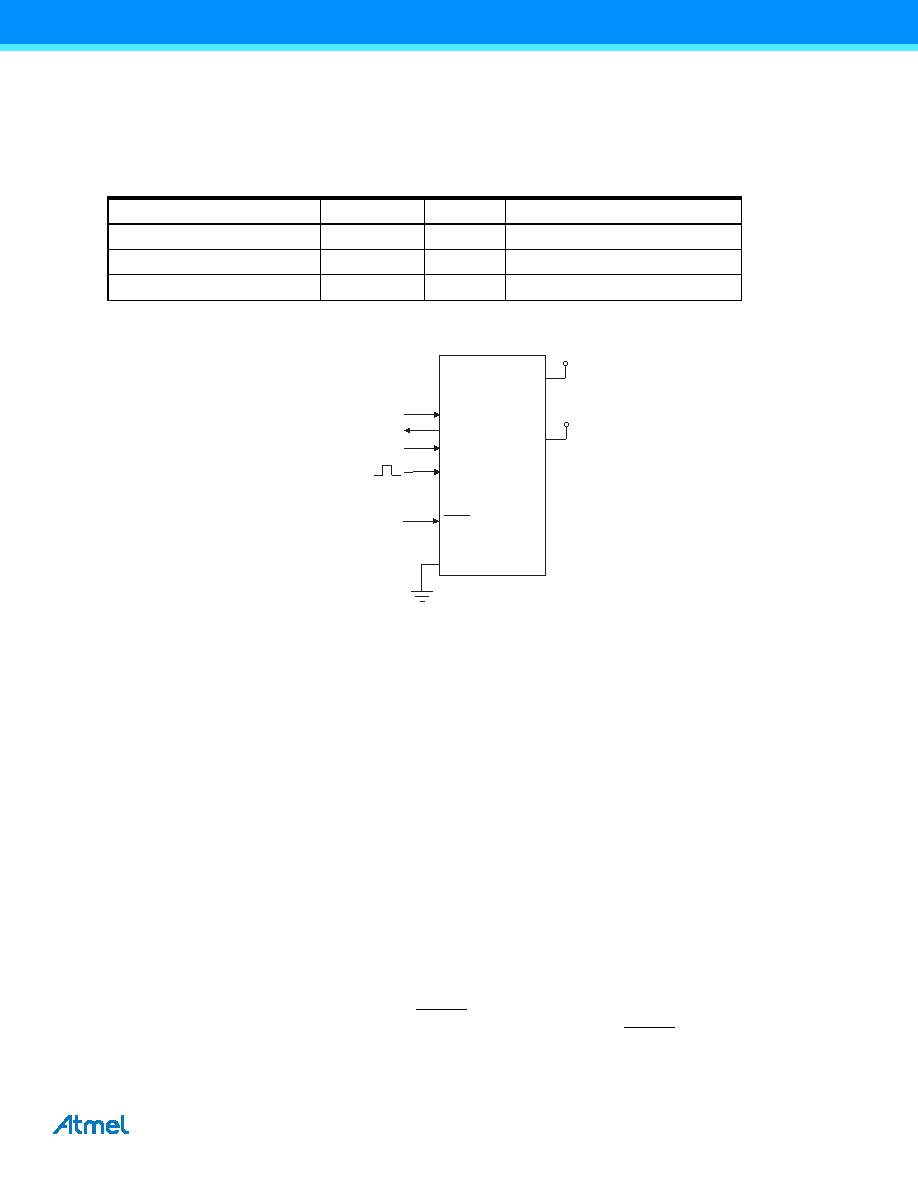

Figure 28-10. SPI Serial Programming and Verify
Note:
1. If the device is clocked by the internal Oscillator, it is no need to connect a clock source to the XTAL1 pin.
2. VCC - 0.3 < AVCC < VCC + 0.3, however, AVCC should always be within 2.7 - 5.5V.
When programming the EEPROM, an auto-erase cycle is built into the self-timed programming operation (in the
Serial mode ONLY) and there is no need to first execute the Chip Erase instruction. The Chip Erase operation
turns the content of every memory location in both the Program and EEPROM arrays into 0xFF.
Depending on CKSEL Fuses, a valid clock must be present. The minimum low and high periods for the serial clock
(SCK) input are defined as follows:
Low: > 2 CPU clock cycles for f
ck < 12 MHz, 3 CPU clock cycles for fck 12 MHz
High: > 2 CPU clock cycles for f
ck < 12 MHz, 3 CPU clock cycles for fck 12 MHz
28.8.1
SPI Serial Programming Algorithm
When writing serial data to the ATmega64A, data is clocked on the rising edge of SCK.
When reading data from the ATmega64A, data is clocked on the falling edge of SCK. See
Figure 28-11 for timing
details.
To program and verify the ATmega64A in the SPI Serial Programming mode, the following sequence is
recommended
:
1.
Power-up sequence:
Apply power between V
CC and GND while RESET and SCK are set to “0”. In some systems, the program-
mer cannot guarantee that SCK is held low during Power-up. In this case, RESET must be given a positive
pulse of at least two CPU clock cycles duration after SCK has been set to “0”.
Table 28-13. Pin Mapping SPI Serial Programming
Symbol
Pins
I/O
Description
MOSI (PDI)
PE0
I
Serial Data In
MISO (PDO)
PE1
O
Serial Data Out
SCK
PB1
I
Serial Clock
VCC
GND
XTAL1
SCK
MISO
MOSI
RESET
PE0
PE1
PB1
+2.7 - 5.5V
AVCC
+2.7 - 5.5V (2)
