| 型號： | ISL59832IRZ |
| 廠商： | Intersil |
| 文件頁數： | 3/14頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC VIDEO FILTER CHRG PUMP 16TQFN |
| 標準包裝： | 90 |
| 應用： | 濾波器 |
| 電路數： | 2 |
| -3db帶寬： | 9MHz |
| 電流 - 電源： | 14mA |
| 電壓 - 電源，單路/雙路(±)： | 3 V ~ 3.6 V |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 16-VQFN 裸露焊盤 |
| 供應商設備封裝： | 16-QFN-EP（4x4） |
| 包裝： | 管件 |
| 產品目錄頁面： | 1247 (CN2011-ZH PDF) |
| 其它名稱： | ISL59832IRZTR ISL59832IRZTR-ND |
11
FN6267.1
June 11, 2008
Description of Operation and Application Information
Theory of Operation
The ISL59832 is a single supply video driver with a
reconstruction filter and an on-board charge pump. It is
designed to drive SDTV displays with S-video (Y-C) or
composite video (CV) signals. The input signals can be AC
or DC-coupled. When AC-coupled, a sync tip clamp forces
the blank level to ground at the output of Channel 1 and a
keyed clamp forces the average level of Channel 2 to
ground. The ISL59832 is capable of driving two AC- or DC-
coupled standard video loads and has a 4th order
Butterworth reconstruction filter with nominal -3dB frequency
set to 10MHz, providing 40dB of attenuation at 27MHz. The
ISL59832 is designed to operate with a single supply voltage
range ranging from 3.0V to 3.6V. This eliminates the need for
a split supply with the incorporation of a charge pump
capable of generating a bottom rail as much as 1.5V below
ground; providing a 4.8V range on a single 3.3V supply. This
performance is ideal for NTSC video with negative-going
sync pulses.
Output Amplifier
The ISL59832 output amplifiers provide a gain of +6dB. The
Channel 1 output amplifier is able to drive a 2.8VP-P video
signal into a 150
Ω load to ground, while the Channel 2
amplifier is able to drive a 2.8VP-P into a 150Ω or 75Ω load to
ground.
The outputs are highly-stable, low distortion, low power, high
frequency amplifiers capable of driving moderate (10pF)
capacitive loads.
Input/Output Range
The ISL59832 inputs have a dynamic range of 0 to 1.4VP-P.
This allows the device to handle the maximum possible
video signal inputs. As the input signal moves outside the
specified range, the output signal will exhibit increasingly
higher levels of harmonic distortion.
The Charge Pump
The ISL59832 charge pump provides a bottom rail up to
1.5V below ground while operating on a 3.0V to 3.6V power
supply. The charge pump is driven by an internal 13MHz
clock.
To reduce the noise on the power supply generated by the
charge pump connect a lowpass RC-network between

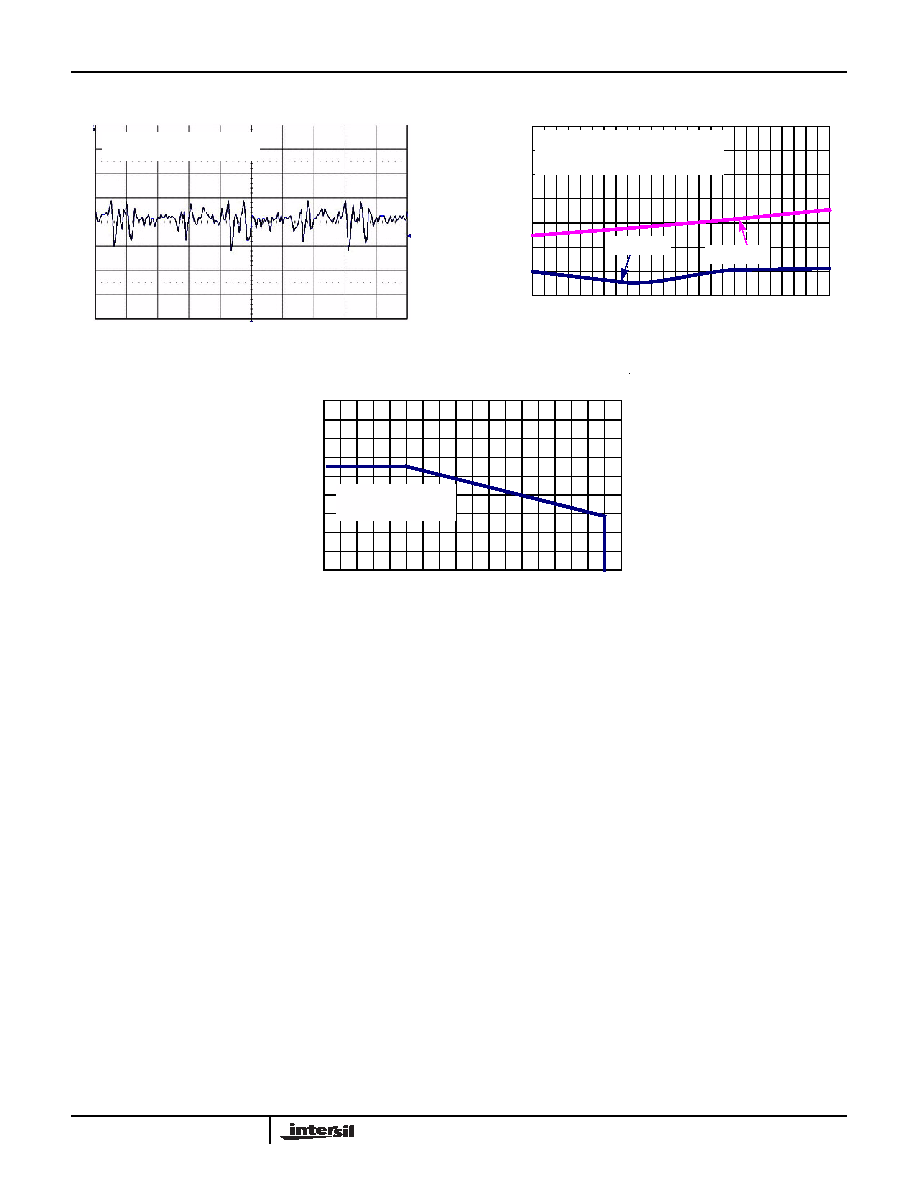

FIGURE 25. CHARGE PUMP FEEDTHROUGH AT AMPLIFIER
OUTPUT
FIGURE 26. THD (dBc) vs OUTPUT VOLTAGE (VP-P)
FIGURE 27. PACKAGE POWER DISSIPATION vs AMBIENT TEMPERATURE
Typical Performance Curves
VCP = VS = 3.3V, CF = 0.1F, CS = 0.22F, CFIL = 0.4F, CIN1= CIN2 = 0.1F, RL1= RL2 = 150Ω.
TIME SCALE = 20ns/DIV
VERTICAL SCALE = 20mV/DIV
-70
-60
-50
-40
-30
-20
-10
0
0.5
0.8
1.1
1.4
1.7
2.0
OUTPUT VOLTAGE (V)
THD
(dBc)
fIN = 5MHz
fIN = 500kHz
VS = VCP = +3.3V
RL = 150Ω
VOUT = 0 TO 2VP, SINE WAVE
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
0
5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
AMBIENT TEMPERATURE (°C)
P
O
WER
DIS
S
IP
A
T
ION
(W
)
16 LD TQFN PACKAGE
4mmx4mm
θ
JA = +46°C/W
ISL59832
