| 型號： | ISL59832IRZ |
| 廠商： | Intersil |
| 文件頁數： | 1/14頁 |
| 文件大小： | 0K |
| 描述： | IC VIDEO FILTER CHRG PUMP 16TQFN |
| 標準包裝： | 90 |
| 應用： | 濾波器 |
| 電路數： | 2 |
| -3db帶寬： | 9MHz |
| 電流 - 電源： | 14mA |
| 電壓 - 電源，單路/雙路(±)： | 3 V ~ 3.6 V |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 16-VQFN 裸露焊盤 |
| 供應商設備封裝： | 16-QFN-EP（4x4） |
| 包裝： | 管件 |
| 產品目錄頁面： | 1247 (CN2011-ZH PDF) |
| 其它名稱： | ISL59832IRZTR ISL59832IRZTR-ND |
當前第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁
1
FN6267.1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774
| Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright Intersil Americas Inc. 2008. All Rights Reserved
All other trademarks mentioned are the property of their respective owners.

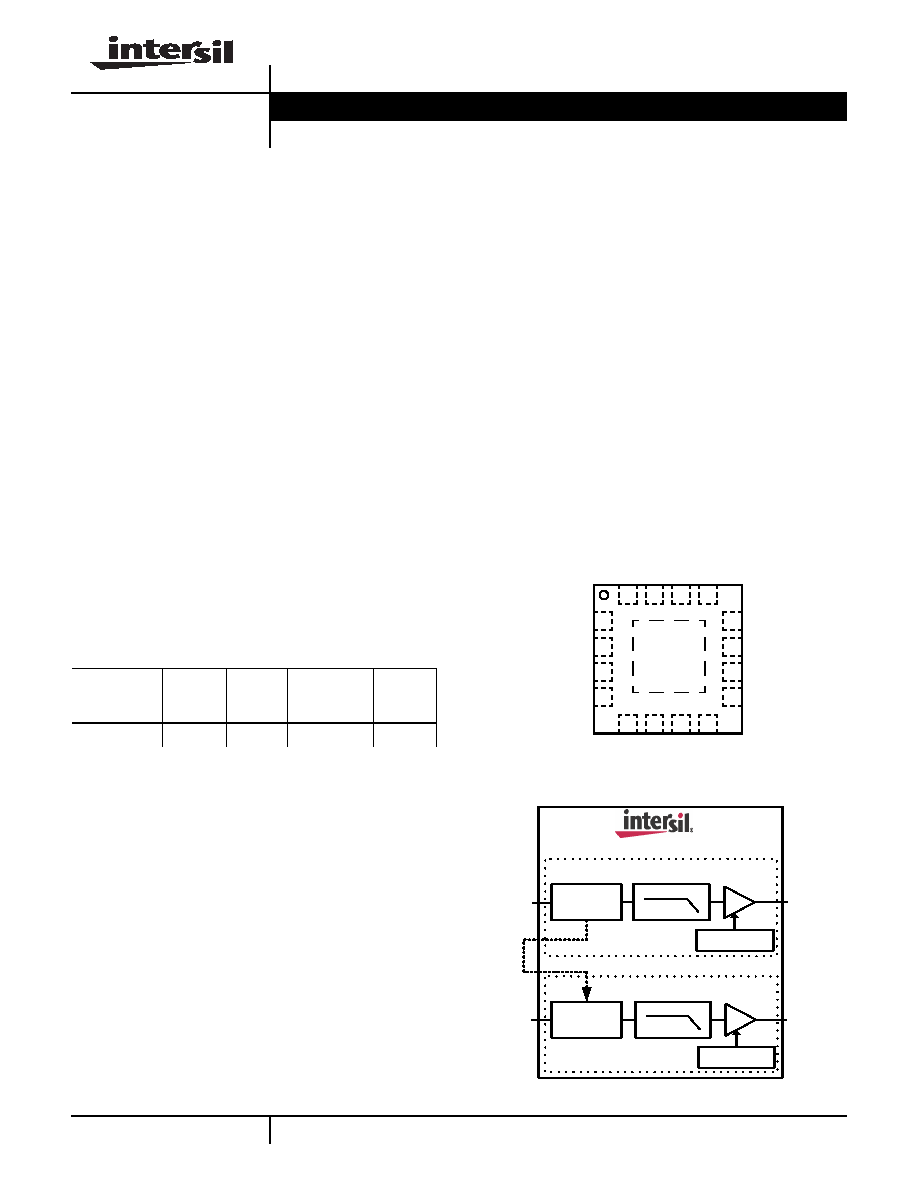

ISL59832
Dual Channel, Single Supply Video
Reconstruction Filter with Charge Pump
The ISL59832 is a dual channel, single supply video driver
with reconstruction filter and charge pump. It is designed to
drive SDTV displays with S-Video (Y/C) signals. It operates
on a single supply (3.0V to 3.6V) and generates its own
negative supply (-1.5V) using a regulated charge pump.
Input signals can be AC- or DC-coupled. When AC-coupled,
the sync tip clamp sets the blank level to ground at the
output of Channel 1 thus ensuring that the sync-tip voltage
level is set to approximately -300mV at the back-termination
resistor of a standard video load. Channel 1 also has a sync
detector whose output is available at SYNC_OUT pin. In a
typical application where the luma is connected to
Channel 1, and chrominance is connected to Channel 2,
SYNC_IN is connected to SYNC_OUT thus providing timing
to Channel 2. Channel 2 has a keyed clamp which sets the
output to ground when SYNC_IN is driven to the logic high
state. The ISL59832 is capable of driving two DC- or
AC-coupled standard video loads. The ISL59832 features a
4th order Butterworth reconstruction filter that provides a
9MHz nominal -3dB frequency and 40dB of attenuation at
27MHz. Nominal operational current is 31mA. When
powered down, the device draws 1A maximum supply
current. The ISL59832 is available in 16 Ld TQFN package.
Applications
Set Top Box Receiver
Television
DVD Player
Features
3.3V Nominal Supply, Operates Down to 3.0V
DC-Coupled Outputs
Inputs can be AC- or DC-Coupled
Eliminates the Need for Large Output Coupling Capacitors
Integrated Sync Tip Clamp sets Backporch to Ground at
the Output For Channel 1 for 1VP-P Standard Video Signal
Integrated Keyed Clamp Puts Channel 2 Output to Ground
During Sync
Each Output Drives 2 Standard Video Loads
Response Flat to 5MHz, with 40dB Attenuation at 27MHz
Pb-Free (RoHS compliant)
Pinout
ISL59832
(16 LD TQFN)
TOP VIEW
Block Diagram
Ordering Information
PART
NUMBER
PART
MARKING
TEMP.
RANGE
(°C)
PACKAGE
(Pb-Free)
PKG.
DWG. #
ISL59832IRZ
59 832IRZ -40 to +85 16 Ld TQFN
MDP0046
NOTE: These Intersil Pb-free plastic packaged products employ
special Pb-free material sets, molding compounds/die attach
materials, and 100% matte tin plate plus anneal (e3 termination finish,
which is RoHS compliant and compatible with both SnPb and Pb-free
soldering operations). Intersil Pb-free products are MSL classified at
Pb-free peak reflow temperatures that meet or exceed the Pb-free
requirements of IPC/JEDEC J STD-020.
1
3
4
15
IN
1
GND
ENABLE
VS
SYNC_OUT
SYNC_IN
16
14
13
2
12
10
9
11
6
57
8
OUT
1
OUT
2
VE
E
IN
VE
E
OU
T
GNDCP
VCP
CAP-
CAP+
EP
IN2
CLAMP +
SYNC
DETECTOR
CHARGE PUMP
ISL59832
VIDEO IN
(Y)
VIDEO OUT
(Y)
x2
CHANNEL 1
9MHz
LPF
KEYED
CLAMP
CHARGE PUMP
VIDEO IN
(C)
VIDEO OUT
(C)
x2
CHANNEL 2
9MHz
LPF
Data Sheet
June 11, 2008
