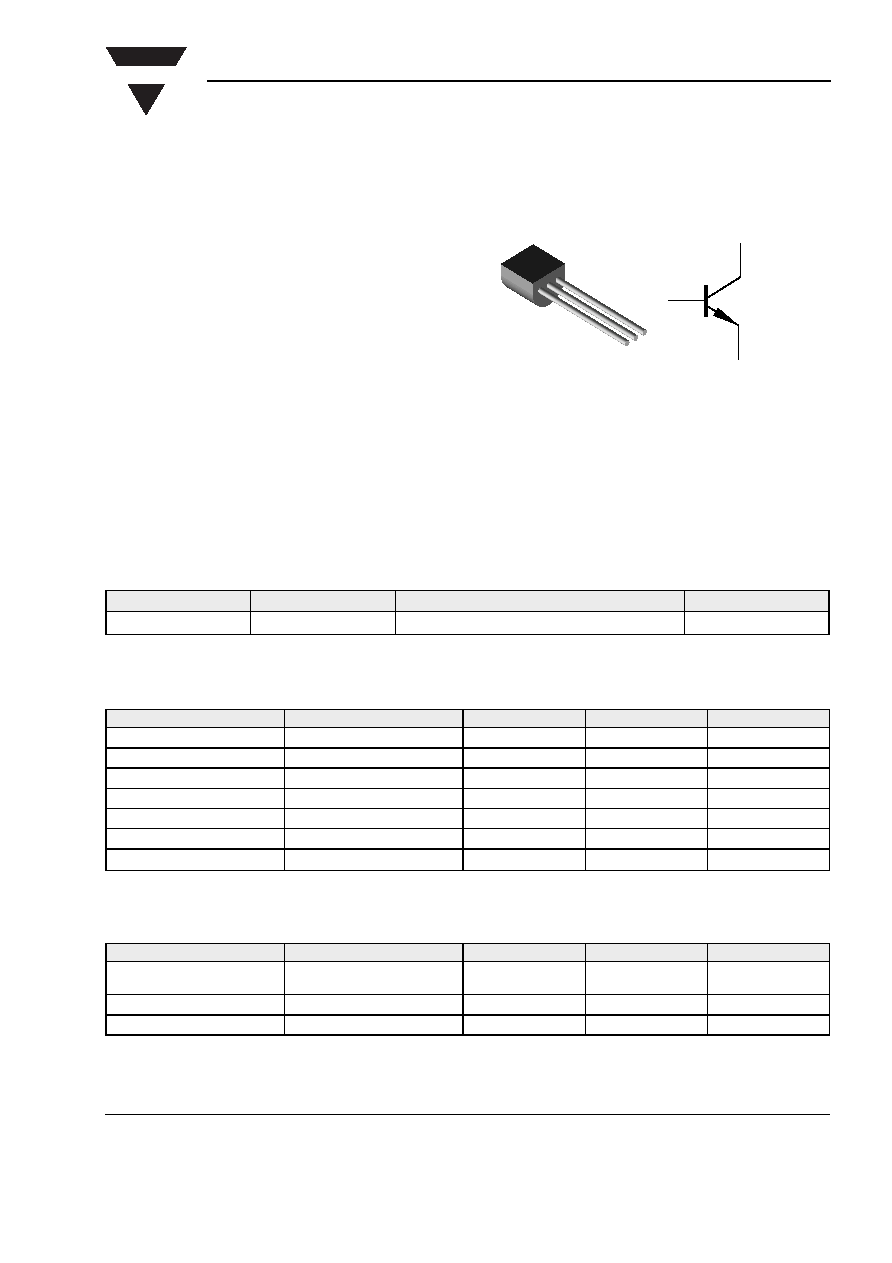

VISHAY
2N4124
Document Number 85110
Rev. 1.2, 01-Sep-04
Vishay Semiconductors
www.vishay.com
1
19160
1 2
3
2
1
3
E
B
C
Small Signal Transistor (NPN)
Features
NPN Silicon Epitaxial Transistor for switching and
amplifier applications.
Especially suitable for AF-driver and low-power
output stages.
As complementary type, the PNP transistor
2N4126 is recommended.
Mechanical Data
Case: TO-92 Plastic case
Weight: approx. 177 mg
Packaging Codes/Options:
BULK / 5 k per container 20 k/box
TAP / 4 k per Ammopack 20 k/box
Parts Table
Absolute Maximum Ratings
Tamb = 25 °C, unless otherwise specified
1) Valid provided that leads at a distance of 2 mm from case are kept at ambient temperature.
Maximum Thermal Resistance
1) Valid provided that leads at a distance of 2 mm from case are kept at ambient temperature.
Part
Type differentiation
Ordering code
Remarks
2N4124
hFE, Typ 60 @ 50 mA
2N4124-BULK or 2N4124-TAP
Bulk / Ammopack
Parameter
Test condition
Symbol
Value
Unit
Collector - emitter voltage
VCEO
25
V
Collector - base voltage
VCBO
30
Emitter - base voltage
VEBO
5V
Collector current
IC
200
mA
Collector peak current
ICM
800
mA
Base current
IB
50
mA
Power dissipation
TA = 25 °C
Ptot
6251)
mW
Parameter
Test condition
Symbol
Value
Unit
Thermal resistance junction to
ambient air
RθJA
2001)
°C/W
Junction temperature
Tj
150
°C
Storage temperature range
TS
- 65 to + 150
°C
