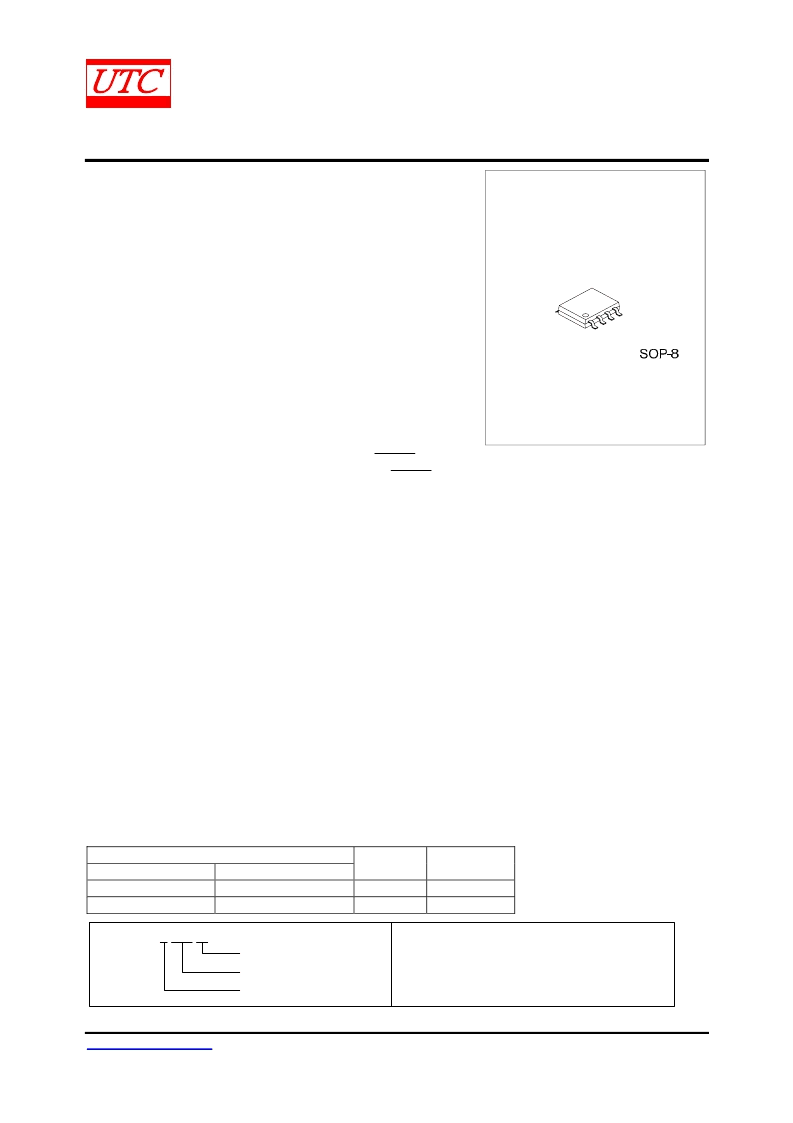

UNISONIC TECHNOLOGIES CO, LTD
UR5596
CMOS IC
www.unisonic.com.tw
Copyright 2007 Unisonic Technologies Co., Ltd
1 of 12
QW-R502-045,B
DDR T ERMINAT ION
REGULAT OR
DES CRIPT ION
The UTC
UR5596
is a linear bus termination regulator and
designed to meet JEDEC SSTL-2(Stub-Series Terminated Logic)
specifications for termination of DDR-SDRAM. It also can be
used in SSTL-3 or HSTL (High-Speed Transceiver Logic)
scheme. The device contains a high-speed OP AMP to provide
excellent response to the load transients, and can deliver 1.5A
continuous current and transient peaks up to 3A in the application
as required for DDR-SDRAM termination.
The UTC
UR5596
also incorporates a V
SENSE
pin to provide
superior load regulation and a V
REF
output as a reference for the
chipset and DIMMs. Besides, an active low shutdown (SHDN) pin
provides Suspend To RAM (STR) functionality. When SHDN is
pulled low the V
TT
output will tri-state providing a high impedance
output, but, V
REF
will remain active. A power savings advantage
can be obtained in this mode through lower quiescent current.
Regarding the output, V
TT
is capable of sinking and sourcing
current while regulating the output voltage equal to V
DDQ
/2. The
output stage has been designed to maintain excellent load
regulation while preventing shoot through. The UTC
UR5596
also
incorporates two distinct power rails that separates the analog
circuitry from the power output stage. This allows a split rail
approach to be utilized to decrease internal power dissipation and
permits UTC
UR5596
to provide a termination solution for DDRII
SDRAM.
FEAT URES
* Source and sink current
* Low output voltage offset
* No external resistors required
* Linear topology
* Suspend To Ram (STR) functionality
* Low external component count
* Thermal shutdown protection
*Pb-free plating product number: UR5596L
ORDERING INFORMAT ION
Ordering Number
Normal
UR5596-S08-R
UR5596-S08-T
Lead Free Plating
UR5596L-S08-R
UR5596L-S08-T
Package
Packing
SOP-8
SOP-8
Tape Reel
Tube
UR5596L-S08-R
(1) Packing Type
(2) Package Type
(3) Lead Plating
(1) R: Tape Reel, T: Tube
(2) S08: SOP-8
(3) L: Lead Free Plating, Blank: Pb/Sn
