μ
PD78361A, 78362A
3.9
SERIAL INTERFACE
The
μ
PD78362A is provided with the following two independent serial interfaces:
Asynchronous serial interface (UART)
Clocked serial interface
3-line serial I/O mode
Serial bus interface mode (SBI mode)
Since the
μ
PD78362A contains a baud rate generator (BRG), any serial transfer rate can be set regardless
of the operating clock frequency. The baud rate generator is a block to generate the shift clock for the transmit/
receive serial interface, and is used commonly with the two channels of the serial interfaces.
The serial transfer rate can be selected in a range of 110 bps to 38.4 Kbps by the mode register.

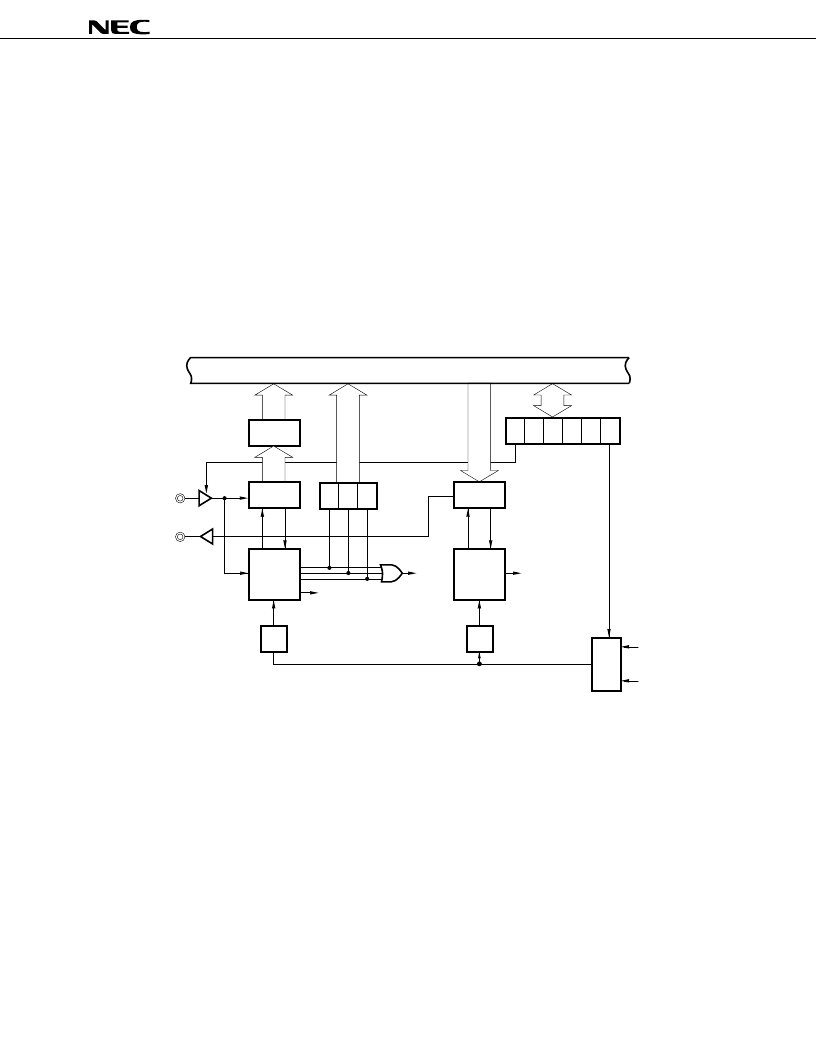

Figure 3-15. Block Diagram of Asynchronous Serial Interface
R
X
D
T
X
D
RXB
PE FE
OVE
RXE PS1 PS0
CL SL
SCK
ASIM
TXS
ASIS
INTSR
INTSER
INTST
1
—
1
—
f
CLK
/8
Internal bus
Receive
buffer
Receive
shift
register
Receive
control
parity
check
Transfer
shift
register
Transfer
control
parity
append
Transfer/
receive
baud rate
generator
output
S
