PARAMETER MEASUREMENT INFORMATION (continued)
Network Analyzer
(HP8753ES)
RL = 100
EXT TRIGGER
BIAS
P1
P2
DUT
A0
SEL
0B1
VSEL
VCC
VBIAS
0B2
A1
1B1
1B2
HP8753ES Setup
SCDS246A – JUNE 2007 – REVISED AUGUST 2008 ....................................................................................................................................................... www.ti.com
A.
CL includes probe and jig capacitance.
B.
A 50-
termination resistor is needed to match the loading of the network analyzer.

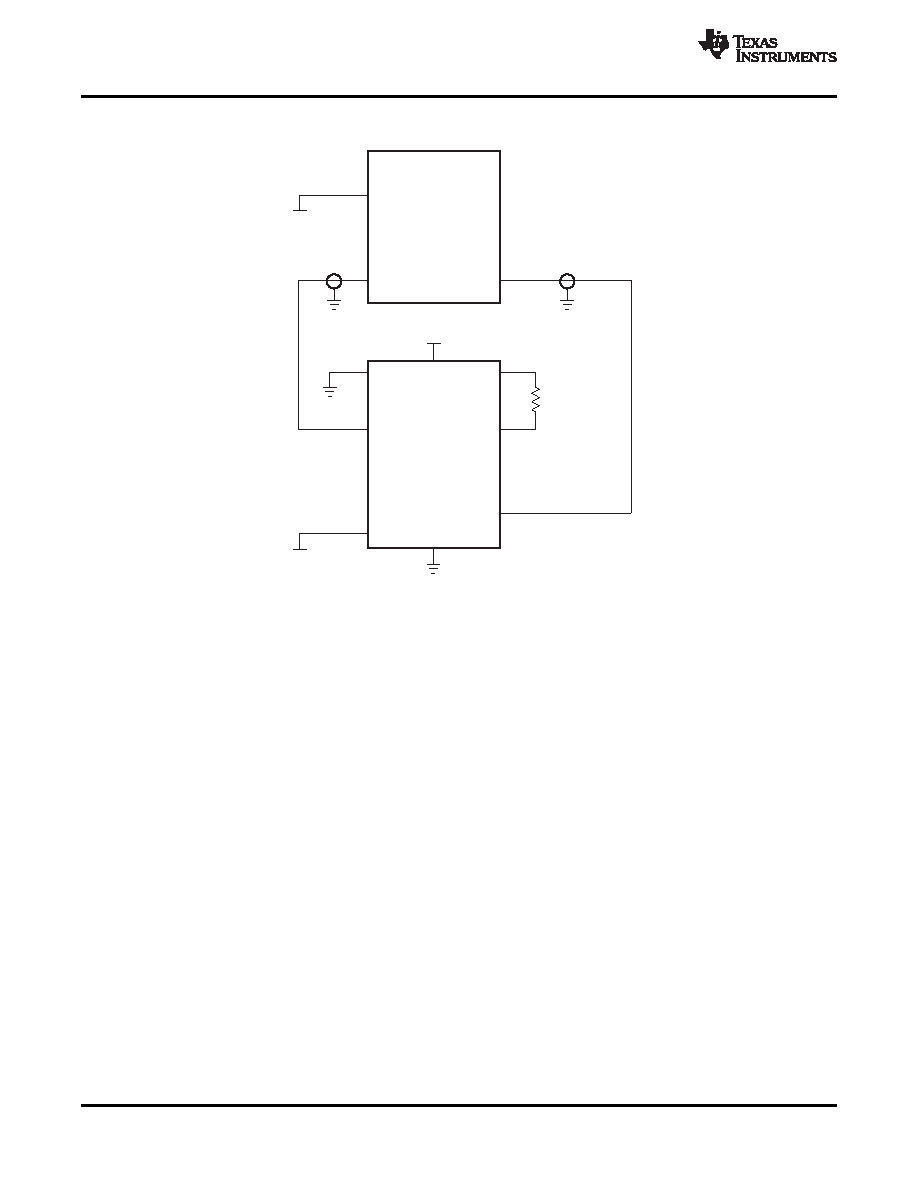

Figure 9. Test Circuit for OFF Isolation (OIRR)
OFF isolation is measured at the output of the OFF channel. For example, when VSEL = GND and A1 is the input,
the output is measured at 1B2. All unused analog input (A) ports are connected to ground, and output (B) ports
are left open.
Average = 4
RBW = 3 kHz
VBIAS = 0.35 V
ST = 2 s
P1 = 0 dBM
12
Copyright 2007–2008, Texas Instruments Incorporated
Product Folder Link(s): TS3L500AE
