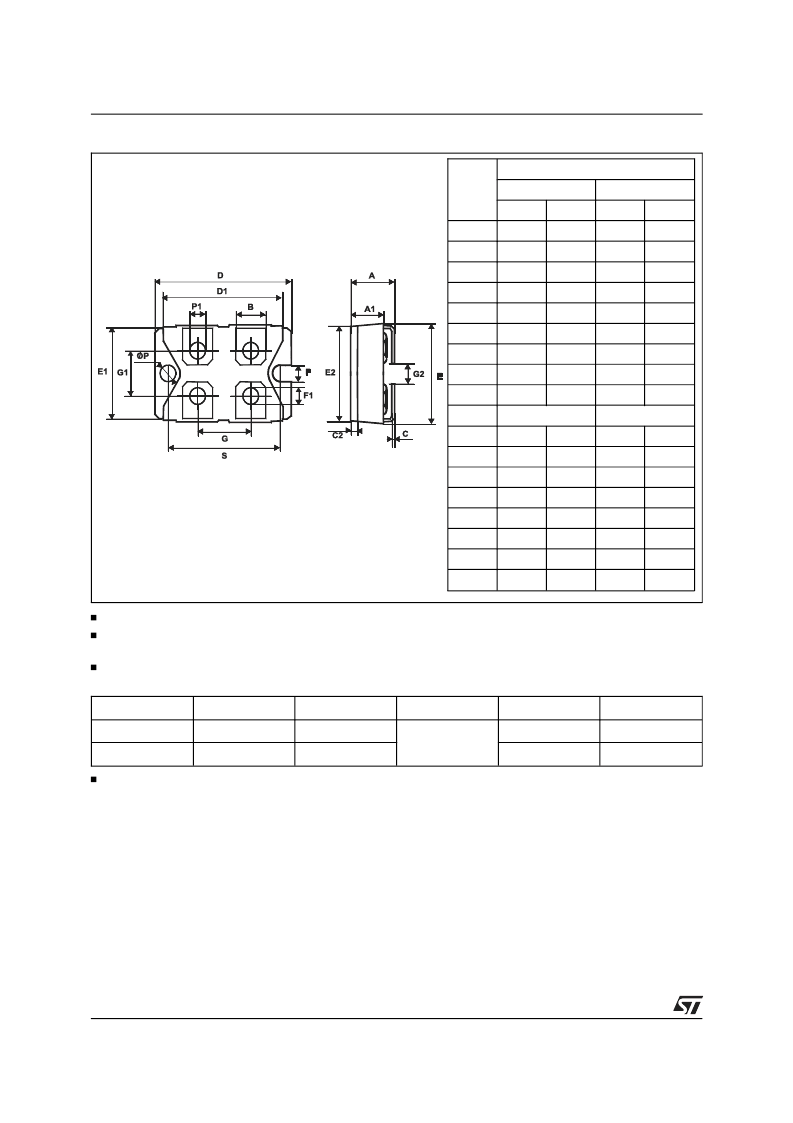

PACKAGE MECHANICAL DATA
ISOTOP
Cooling method: by condiction (C)
Recommended torque value: 1.3 N.m (MAX 1.5 N.m) for the 6 x M4 screws. (2 x M4 screws
recommended for mounting the package on the heatsink and the 4 screws for terminals).
The screws supplied with the package are suitable for mounting on a board (or other types of terminals)
with a thickness of 0.6 mm min and 2.2 mm max.
REF.
DIMENSIONS
Millimeters
Min.
11.80
8.90
7.8
0.75
1.95
37.80
31.50
25.15
23.85
24.80 typ.
14.90
12.60
3.50
4.10
4.60
4.00
4.00
30.10
Inches
Min.
0.465
0.350
0.307
0.030
0.077
1.488
1.240
0.990
0.939
0.976 typ.
0.587
0.496
0.138
0.161
0.181
0.157
0.157
1.185
Max.
12.20
9.10
8.20
0.85
2.05
38.20
31.70
25.50
24.15
Max.
0.480
0.358
0.323
0.033
0.081
1.504
1.248
1.004
0.951
A
A1
B
C
C2
D
D1
E
E1
E2
G
G1
G2
F
F1
P
P1
S
15.10
12.80
4.30
4.30
5.00
4.30
4.40
30.30
0.594
0.504
0.169
0.169
0.197
0.69
0.173
1.193
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of
use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to
change without notice. This publication supersedes and replaces all information previously supplied.
STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written ap-
proval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
1999 STMicroelectronics - Printed in Italy - All rights reserved.
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia
Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.
http://www.st.com
Ordering type
Marking
Package
Weight
Base qty
Delivery mode
STTA9012TV1
STTA9012TV1
ISOTOP
27g.
without screws
10
Tube
STTA9012TV2
Epoxy meets UL94,V0
STTA9012TV2
ISOTOP
10
Tube
STTA9012TV1/2
8/8
