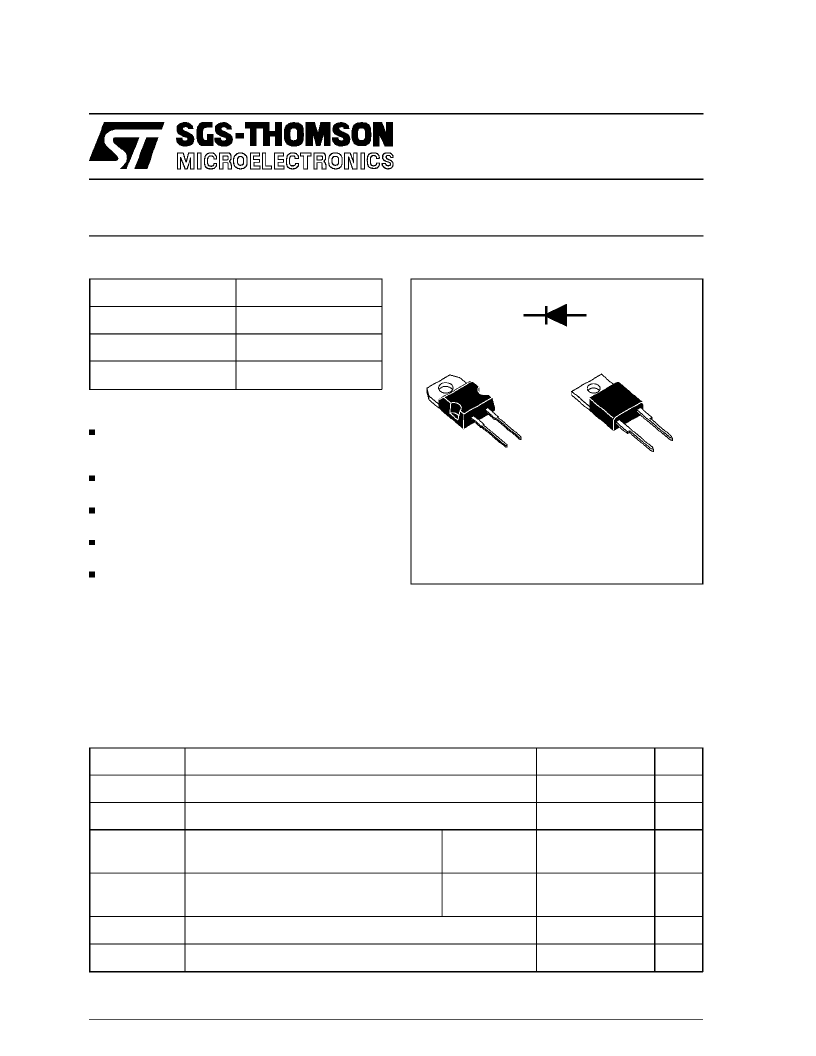

May 1995 - Ed : 2B
SPECIFIC TO THE FOLLOWINGOPERA-
TIONS:Snubbingor clamping,demagnetization
and rectification.
ULTRA-FAST,
SOFT
RECOVERY.
VERY LOW OVERALL POWER LOSSESAND
PARTICULARY LOWFORWARD VOLTAGE.
DESIGNED FOR HIGH PULSED CURRENT
OPERATIONS.
CECCAPPROVED.
AND
NOISE-FREE
FEATURES AND BENEFITS
K
A
TO220AC
(Plastic)
STTB1206D
The TURBOSWITCH is a very high performance
series of ultra-fast high voltage powerdiodes from
600V to 1200V.
TURBOSWITCH, B family, drastically cuts losses
in all high voltage operations which require
extremelyfast, soft and noise-freepower diodes.
They are particularly suitable in theprimary circuit
of
demagnetizing diodes, and also in most power
convertersas highperformancerectifier diodes.
Packagedin TO220ACand in isolated TO220AC,
these 600V devices are particularly intended for
use on 240Vdomestic mains.
an
SMPS
as
snubber,
clamping
or
DESCRIPTION
I
F(AV)
12A
V
RRM
600V
t
rr
(typ)
50ns
V
F
(max)
1.3V
MAIN PRODUCTS CHARACTERISTICS
Symbol
Parameter
Value
Unit
V
RRM
Repetitivepeak reversevoltage
600
V
V
RSM
Non repetitivepeak reversevoltage
600
V
I
F(RMS)
RMS forward current
STTB1206D
STTB1206DI
30
20
A
I
FRM
Repetitivepeak forward current
(tp = 5
μ
s, f = 1kHz)
STTB1206D
STTB1206DI
420
280
A
T
j
Max operatingjunction temperature
-65 to 150
°
C
T
stg
Storage temperature
-65 to 150
°
C
TM : TURBOSWITCH is a trademark of
SGS-THOMSON MICROELECTRONICS.
ABSOLUTE MAXIMUM RATINGS
STTB1206D(I)
TURBOSWITCH
”B”. ULTRA-FAST HIGH VOLTAGE DIODE
A
K
A
K
Isolated
TO220AC
(Plastic)
STTB1206DI
1/8
