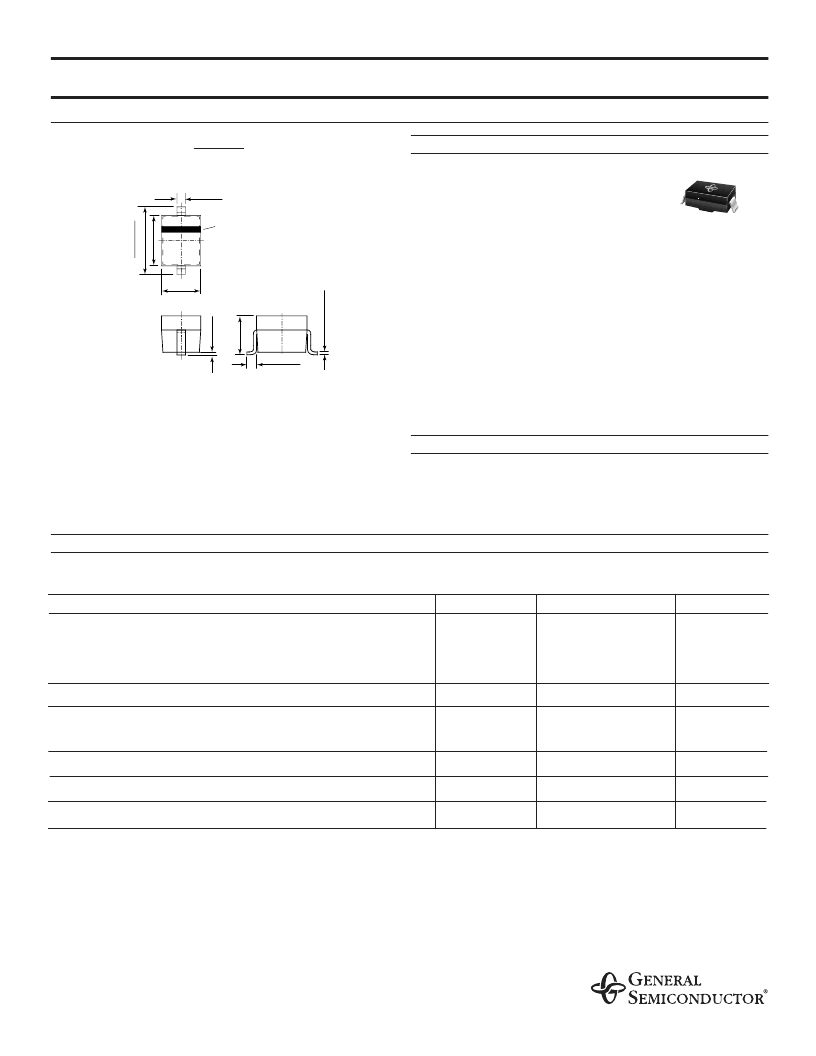

SD103AWS THRU SD103CWS
SCHOTTKY DIODES
FEATURES
For general purpose applications.
The SD103 series is a metal-on-silicon
Schottky barrier device which is protected
by a PN junction guard ring. The low forward voltage
drop and fast switching make it ideal for protection of
MOS devices, steering, biasing, and coupling diodes for
fast switching and low logic level applications. Other
applications are click suppression, efficient full wave
bridges in telephone subsets, and blocking diodes in
rechargeable low voltage battery systems.
This diode is also available in Mini-MELF case with the
type designation LL103A … LL103C, DO-35 case with
the type designations SD103A .. SD103C and SOD-123
case with type designations SD103W ... SD103CW.
MECHANICAL DATA
Case:
SOD-323 Plastic Package
Weight:
approx. 0.004g
MAXIMUM RATINGS AND THERMAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified
SYMBOL
VALUE
UNIT
Peak Inverse Voltage
SD103AWS
SD103BWS
SD103CWS
V
RRM
V
RRM
V
RRM
40
30
20
Volts
Volts
Volts
Power Dissipation at T
amb
= 25°C
P
tot
150
1)
mW
Single Cycle Surge
10
μ
s Square Wave
I
FSM
2
Amps
Junction Temperature
T
j
125
1)
°C
Storage Temperature Range
T
S
– 55 to +150
1)
°C
Thermal Resistance Junction to Ambient Air
R
Θ
JA
650
°C/W
NOTES
(1)Valid provided that electrodes are kept at ambient temperature
m
min. .010 (0.25)
.012 (0.3)
.
.
.059 (1.5)
.043 (1.1)
m
m
Cathode Mark
Top View
.
.
SOD-323
11/30/98
Dimensions in inches and (millimeters)
NEW PRODUCT
NEW PRODUCT
NEW PRODUCT
